Long range 8-15M Reader UHF 8dbi Antenna RS485 Wiegand parking management system RFID card access control
Description Of RFID Card Access Control:

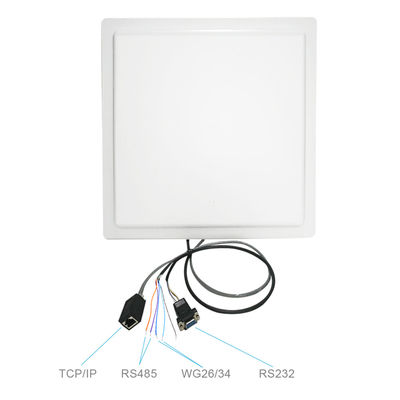

TM-SM06A is a high-performance UHF RFID integrated reader. It is designed with low power dissipation and high integrated RFID chip solution, which has features of long reading distance, high identification speed, multiple interfaces and ease installation. It can be widely used in logistics tracking, commodity inventory, cargo sorting, vehicle management, personnel management, asset management, medical systems, cold chain management, temperature monitoring, power monitoring, anti-counterfeiting systems and production process control and many other applications.
Specification Of RFID Card Access Control:
|
Electrical Specifications
|
|
|
Freq. Range
|
865~940MHz
|
|
Gain
|
8dBi
|
|
Horizontal Beam Width
|
65±5°
|
|
Vertical Beam Width
|
63°
|
|
F/B Ratio
|
>23dB
|
|
VSWR
|
<1.3
|
|
Impedance
|
50 Ω
|
|
Max. Power
|
>100W
|
|
Polarization
|
Circular
|
|

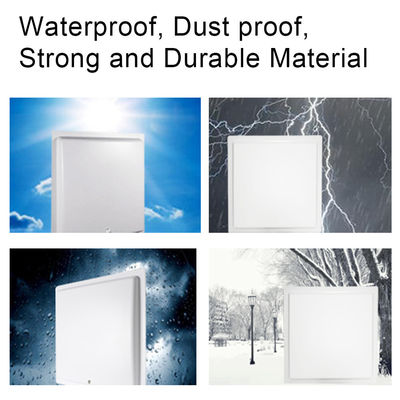

Waterproof Class
|
IP65
|
|
Lightning Protection
|
Direct Ground
|
|
Mechanical Specifications
|
|
|
Dimension
|
260X260X80mm
|
|
Weight
|
1.5Kg
|
|
Rated Wind Velocity
|
30m/s
|
|
Reflector Material
|
Aluminum
|
|
Radome Color
|
White
|
|
Radome Material
|
ABS
|
|
Operating Temp.
|
-40~80°C
|
Feature Of RFID Card Access Control:

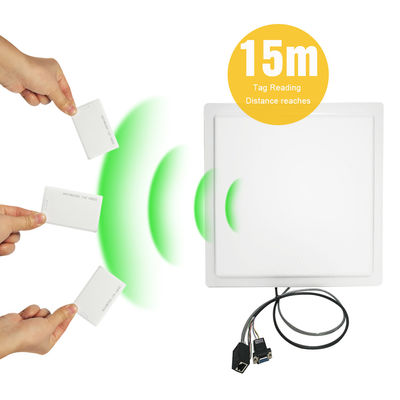

Designed with low power dissipation and high integrated RFID chip solution * Support EU 840~868MHz, US 902~928MHz working frequency (or Customized) * Support EPC Global UHF class 1 gen2 / ISO18000-6C protocol RFID tags. * Optimized multiple tags inventory algorithm, speed is more than 100 per second * FHSS or Fix Frequency transmission * RF output power up to 30dBm (1dbm step adjustable) * Support command, polling and trigger mode * Support EPC, TID and USER inventory in independently or conjunctively * Support IAP firmware upgrading * Low power dissipation with single +12 DC power supply * Support USB, RS232, RS485, Weigand, RJ45(TCP/IP, UDP) and WIFI, 4G at option * Built-in 8 dBi circular polarized antenna with effective distance up to 20 m (adjustable) * Provide DEMO and SDK for development * Support development based on Windows, Android, Linux etc. and C, C#, JAVA etc.
Application Of RFID Card Access Control:

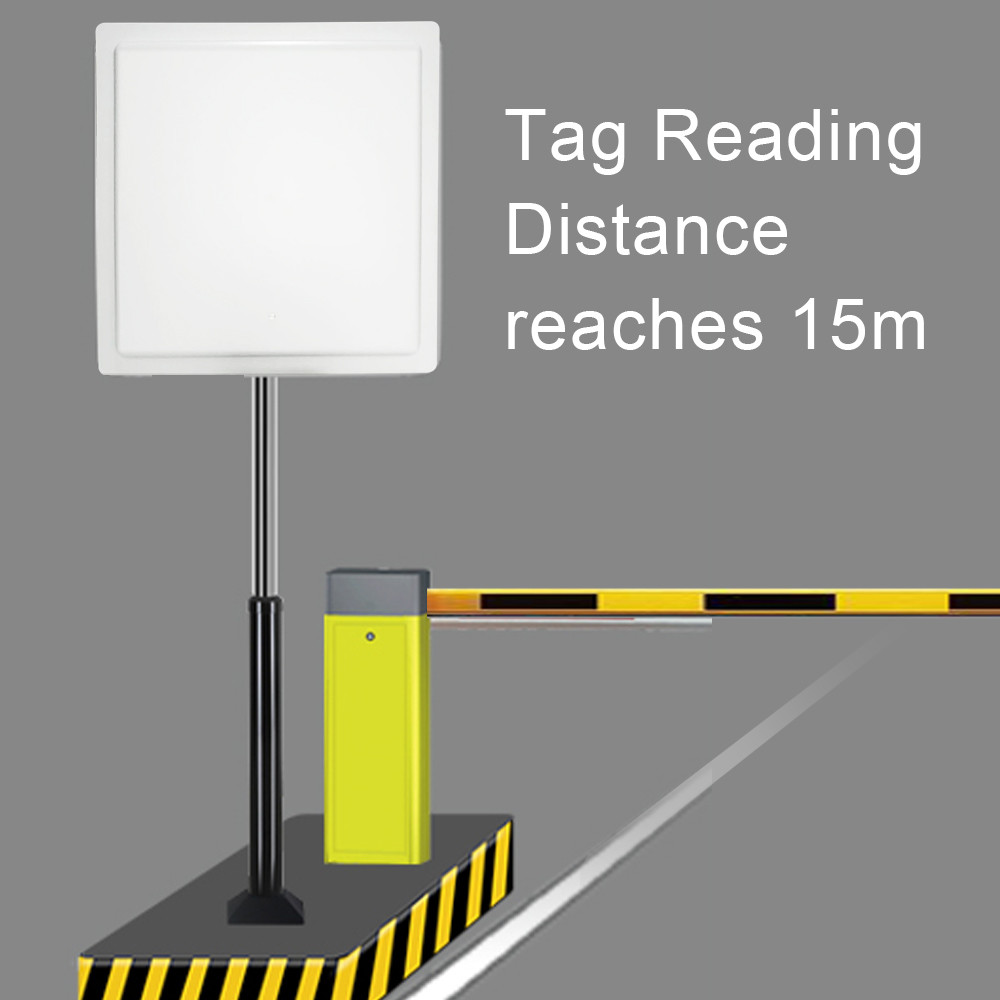

UHF rfid card access control uhf reader is widely used in clothing inventory, logistics management, jewelry management, library management, access control security, unmanned retail, smart wearing and other fields
RFID Card Access Control FAQ?
Q1: Are you are trading company or manufacturer factory?
We are the professional manufacturer of Biometric time attendance and access control in Shenzhen, China with 20 years history.
Q2: Can I take free sample for test?
We did not offer free sample, but we can reduce the sample cost from bulk order.
Q3: What kind of OEM can you do for us?
we do support OEM logo putting on device case, Package box, boot up display, even on software interface.
Q43: What is your warranty?
Standard 1 year, but we support giving some free spare parts for repairing as if we did have bulk order cooperation.
Q5. What about your after selling service when i met any question?
We have professional technical support team who can give realtime and convenient service support and instruction online through Email, Skype, Whatsapp, Wechat,etc.
Our products are sold all over the world, you can rest assured.
