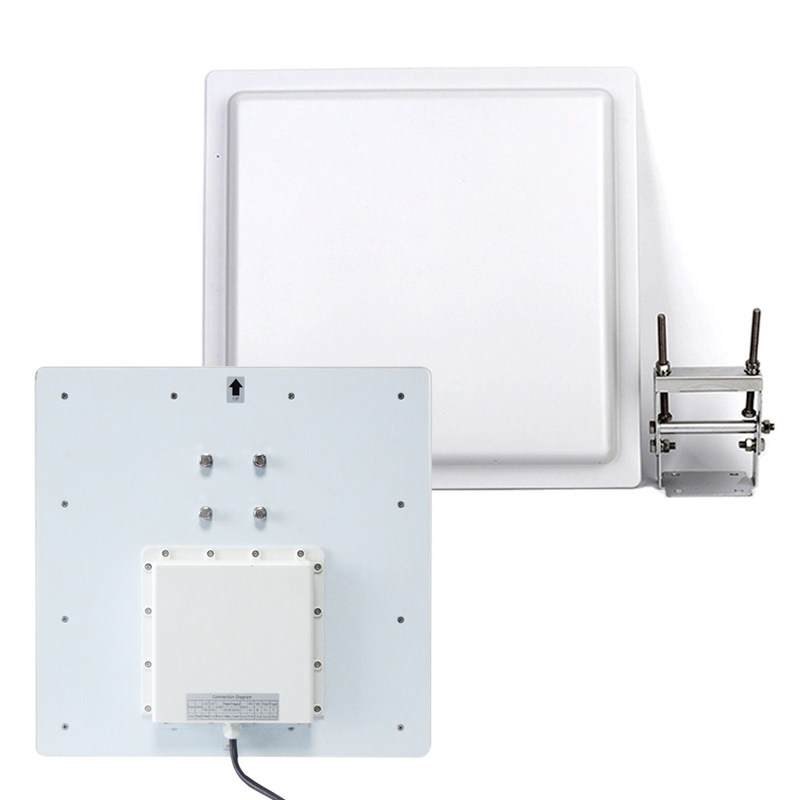

Anti Counterfeiting UHF RFID Reader With Waterproof Antenna Wiegand 485 Interface
Long Range UHF RFID Reader With Waterproof Antenna Wiegand+485 Interface
RFID Card Access Control Product Applications:
The TM-820 is an integrated UHF reader with multi-protocol compatibility, fast read rate, multi-tag reading, and waterproof design. It can be widely used in various RFID systems.
It is widely used in:
Warehouse Management, Supply Chain Management, Vehicle Management
Line Management, Source Management, Asset Management, Personnel Management,
Attendance Management, Product Anti-counterfeiting Management
RFID Card Access Control Features:
1. Support ISO18000-6B and EPC Class1 GEN2 international standards;
2. Integrated structure design, beautiful appearance, suitable for outdoor environment;
3. Integrate high-performance linear polarized antennas, Recognize the long range distance stably;
4. Supports tag echo signal detection, tag data filtering, clock stamping, and input and output functions;
5. Recognition speed is fast, and the identification of single label can reach 140 times/second;
6. Adopt frequency hopping working mode, strong anti-interference ability and high recognition sensitivity;
7. Support development in multiple languages, such as VC, VB, C, etc.
8. Supports online upgrades, has a rich communication interface, and can be customized to the needs of users.
RFID Card Access Control Specification
|
Model
|
TM-820
|
|
Supported protocols
|
ISO18000-6B,ISO18000-6C(EPC GEN2)
|
|
Working frequency
|
ISM 902～928MHz and ISM 865～868MHz,Other frequency standards (customized)
|
|
Operation mode
|
Fixed Frequency or Software Programmable
|
|
RF power
|
0~30dBm,Software Programmable
|
|
Reading speed
|
Single card average reading is 64bits, less than 6ms,
Software Programmable
|
|
Work mode
|
reading Active and reading passive, Software Programmable
|
|
Communication Ports
|
N:Wiegand26/34/98, RS485,RS232 ,USB
E:Wiegand26/34/98, RS232,TCP ,USB
|
|
Input interface
|
1 way trigger input
|
|
Reading range
|
>20M (High Power 35M)
|
|
Status indicators
|
buzzer
|
|
Antenna
|
10 dbi circular antenna
|
|
Power supply
|
DC 9V
|
|
Dimension
|
445mm×445mm×35mm
|
|
Weight
|
2.55 Kg (Package: 4.65 Kg)
|
|
Operation Temp.
|
-20℃~+70℃
|
Facial Recognition Access Control System FAQ
Q1: Are you a manufacturer or a trade company?
Reply : Shenzhen Union Timmy Technology Co., Ltd. is one of the leading manufacturers and exporters. We are enjoying an excellent reputation through 20 years’ production experience of time attendance in China.
Q2: How many days can we get the products if placed purchase order?
Reply : In regularly, 2-3 working days for Sample and ready stock;
15 working days for production order after receiving of order confirmation and deposit.
Q3: When did your company formed?
Reply : Since year 2000, the founders of Shenzhen Union Timmy Technology Co., Ltd. (Timmy Technology) have been striving for independent research and development of biometric verification algorithms, vertical three roller gates, access control system, one-card management system and the production of biometric verification SDK which was initially widely applied in PC security, time attendance and identity authentication fields.
Q4: Which payment method are acceptable?
Reply: T/T, PayPal and .
Q5: What others should I pay attention?
Frequency band. According to your local UHF regulation, told us your frequency band of the reader before place an order.
In general, European counrty' UHF band is 865- 868 Mhz. And North American. Japan is 902- 928 Mhz.
Q6: Can I get some samples?
Reply: We are honored to offer samples for your evaluation.
Q7: How does your factory QC?
Reply: Quality check is our first priority for our customers without any careless.
Furthermore, Timmy Technology has been recognized as a "National High-tech Enterprise" for 3 consecutive years, passed ISO9001 certification, and the products have passed FCC/CE/ROHS certification, etc
Q8. What interface does this UHF reader writer support?
Reply: TCP/ IP, RS232, RS485, you can freely choose only one interface from them.
Should you have any inquiry, feel free to contact us
Facial Recognition Access Control System Warranty
Timmy warrantees all the hardware products to be free from manufacturing defects. It also warrants this hardware product against defects in materials and workmanship that result in a material deviation from the applicable published Timmy technical specifications or customized specifications for that particular client.
