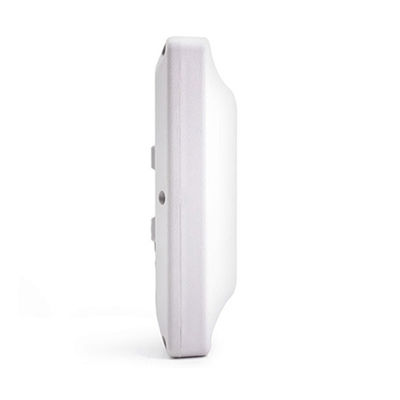

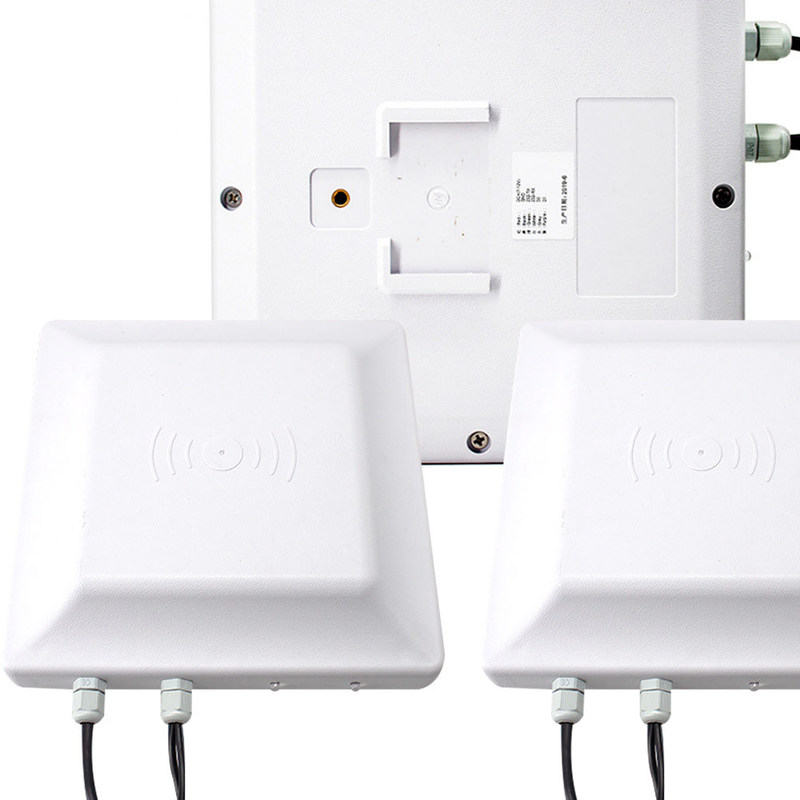

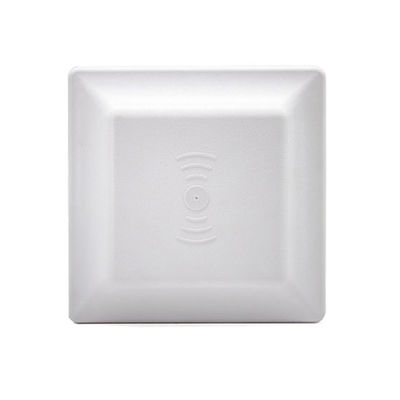

RJ45 RS485 Long Range Uhf RFID Card Access Control 960 Mhz Build In 7 DBi Antenna

RJ45 RS485 Long Range Uhf RFID Card Access Control 960 Mhz Build In 7 DBi Antenna

  • High Light

    Uhf RFID Card Access Control

    ,

    960 Mhz RFID Card Access Control

    ,

    960Mhz long range rfid reader

  • Supported Protocols
    ISO18000-6B,ISO18000-6C(EPC GEN2)
  • Communication
    Wiegand/USB/RS232/RS485
  • Working Frequency
    ISM 902~928MHz And ISM 865~868MHz,Other Frequency Standards (customized)
  • Operation Mode
    Fixed Frequency Or Software Programmable
  • RF Power
    0~30dBm,Software Programmable
  • Input Interface
    1 Way Trigger Input
  • Size
    215mm×215mm×50mm
  • Dimension
    86*86*8mm
  • Weight
    0.8 Kg
  • Operation Temp.
    -20℃~+70℃
  • Place of Origin
    China
  • Brand Name
    TIMMY
  • Certification
    CE, RoHS
  • Model Number
    TM-805
  • Minimum Order Quantity
    1pcs (sample)
  • Price
    Negotiable
  • Packaging Details
    Export packing: 18 units / Outer Box
  • Delivery Time
    Sample order 2~3 working days; Bulk order 6~12 working days
  • Payment Terms
    T/T, , Payal
  • Supply Ability
    1000 pcs per week

RJ45 RS485 Long Range Uhf RFID Card Access Control 960 Mhz Build In 7 DBi Antenna

RJ45 RS485 Long Range Uhf RFID Card Access Control 960 Mhz Build In 7 DBi Antenna



RJ45 RS485 Long Range Uhf Rfid Reader 12-15 Meter 860-960 Mhz Build-In 12 DBi Antenna



RFID Card Access Control Product Applications:

The TM-805 is an integrated UHF reader with multi-protocol compatibility, fast read rate, multi-tag reading, and waterproof design. It can be widely used in various RFID systems.

It is widely used in:

Warehouse Management, Supply Chain Management, Vehicle Management
Line Management, Source Management, Asset Management, Personnel Management,
Attendance Management, Product Anti-counterfeiting Management

RFID Card Access Control Features:

1. Support ISO18000-6B and EPC Class1 GEN2 international standards;
2. Integrated structure design, beautiful appearance, suitable for outdoor environment;
3. Integrate high-performance linear polarized antennas, Recognize the long range distance stably;
4. Supports tag echo signal detection, tag data filtering, clock stamping, and input and output functions;
5. Recognition speed is fast, and the identification of single label can reach 140 times/second;
6. Adopt frequency hopping working mode, strong anti-interference ability and high recognition sensitivity;
7. Support development in multiple languages, such as VC, VB, C, etc.
8. Supports online upgrades, has a rich communication interface, and can be customized to the needs of users.



RFID Card Access Control Specification



Model

TM-805

Supported protocols

ISO18000-6B,ISO18000-6C(EPC GEN2)

Communication

Wiegand/USB/RS232/RS485

working frequency

ISM 902~928MHz and ISM 865~868MHz,Other frequency standards (customized)

Operation mode

Fixed Frequency or Software Programmable

RF power

0~30dBm,Software Programmable

Reading speed

Single card average reading is 64bits, less than 6ms,
Software Programmable

Work mode

reading Active and reading passive, Software Programmable

Communication Ports

N:Wiegand26/34/98, RS485,RS232 ,USB
E:Wiegand26/34/98, RS232,TCP ,USB

Input interface

1 way trigger input

Reading range

0-5 m

Status indicators

buzzer

Antenna

7dbi circular antenna

Power supply

DC 9V

Size

215mm×215mm×50mm

Dimension

86*86*8mm

Weight

0.8 Kg

Operation Temp.

-20℃~+70℃



RJ45 RS485 Long Range Uhf RFID Card Access Control 960 Mhz Build In 7 DBi Antenna 0RJ45 RS485 Long Range Uhf RFID Card Access Control 960 Mhz Build In 7 DBi Antenna 1RJ45 RS485 Long Range Uhf RFID Card Access Control 960 Mhz Build In 7 DBi Antenna 2











Facial Recognition Access Control System FAQ



Q1: Are you a manufacturer or a trade company?
Reply : Shenzhen Union Timmy Technology Co., Ltd. is one of the leading manufacturers and exporters. We are enjoying an excellent reputation through 20 years’ production experience of time attendance in China.

Q2: How many days can we get the products if placed purchase order?
Reply : In regularly, 2-3 working days for Sample and ready stock;
15 working days for production order after receiving of order confirmation and deposit.

Q3: When did your company formed?
Reply : Since year 2000, the founders of Shenzhen Union Timmy Technology Co., Ltd. (Timmy Technology) have been striving for independent research and development of biometric verification algorithms, vertical three roller gates, access control system, one-card management system and the production of biometric verification SDK which was initially widely applied in PC security, time attendance and identity authentication fields.



Q4: Which payment method are acceptable?
Reply: T/T, PayPal and .



Q5: What others should I pay attention?

Frequency band. According to your local UHF regulation, told us your frequency band of the reader before place an order.

In general, European counrty' UHF band is 865- 868 Mhz. And North American. Japan is 902- 928 Mhz.



Q6: Can I get some samples?



Reply: We are honored to offer samples for your evaluation.

Q7: How does your factory QC?
Reply: Quality check is our first priority for our customers without any careless.
Furthermore, Timmy Technology has been recognized as a "National High-tech Enterprise" for 3 consecutive years, passed ISO9001 certification, and the products have passed FCC/CE/ROHS certification, etc





Q8. What interface does this UHF reader writer support?

Reply: TCP/ IP, RS232, RS485, you can freely choose only one interface from them.


Should you have any inquiry, feel free to contact us



Facial Recognition Access Control System Warranty

Timmy warrantees all the hardware products to be free from manufacturing defects. It also warrants this hardware product against defects in materials and workmanship that result in a material deviation from the applicable published Timmy technical specifications or customized specifications for that particular client.
