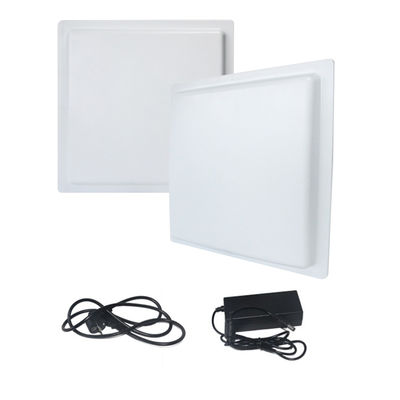

928MHz RFID Card Access Control Ultrahigh Frequency Long Distance Reading
RFID Card Access Control
RFID Card Access Control Features:
ISM 902 928MHz RFID Card Access Control Ultrahigh Frequency Long Distance Reading
Long Range Tag Reading Distance RFID Card Access Control Wiegand 26/34 Port Integrated Uhf Rfid Gate Reader
RFID Card Access Control Specification:
|
Model
|
TM-820
|
|
Supported protocols
|
ISO18000-6B,ISO18000-6C(EPC GEN2)
|
|
Communication
|
Wiegand/USB/RS232/RS485
|
|
working frequency
|
ISM 902~928MHz and ISM 865~868MHz,Other frequency standards (customized)
|
|
Operation mode
|
Fixed Frequency or Software Programmable
|
|
RF power
|
0~30dBm,Software Programmable
|
|
Reading speed
|
Single card average reading is 64bits, less than 6ms,
Software Programmable |
|
Work mode
|
reading Active and reading passive, Software Programmable
|
|
Communication Ports
|
N:Wiegand26/34/98, RS485,RS232 ,USB
E:Wiegand26/34/98, RS232,TCP ,USB |
|
Input interface
|
1 way trigger input
|
|
Reading range
|
>20m (High power 35m)
|
|
Status indicators
|
buzzer
|
|
Antenna
|
10dbi circular antenna
|
|
Power supply
|
DC 9V
|
|
Size
|
445mm×445mm×35mm
|
|
Weight
|
2.55 Kg
|
|
Operation Temp.
|
-20ºC~+70ºC
|
RFID Card Access Control Introduction:
High speed transmission, fast card reading, for software setting, 115200bps file transmission speed for efficient work
integrated UHF reader with multi-protocol compatibility, fast read rate, and waterproof design. It can be widely used in various RFID systems.
RFID Card Access Control Introduction.

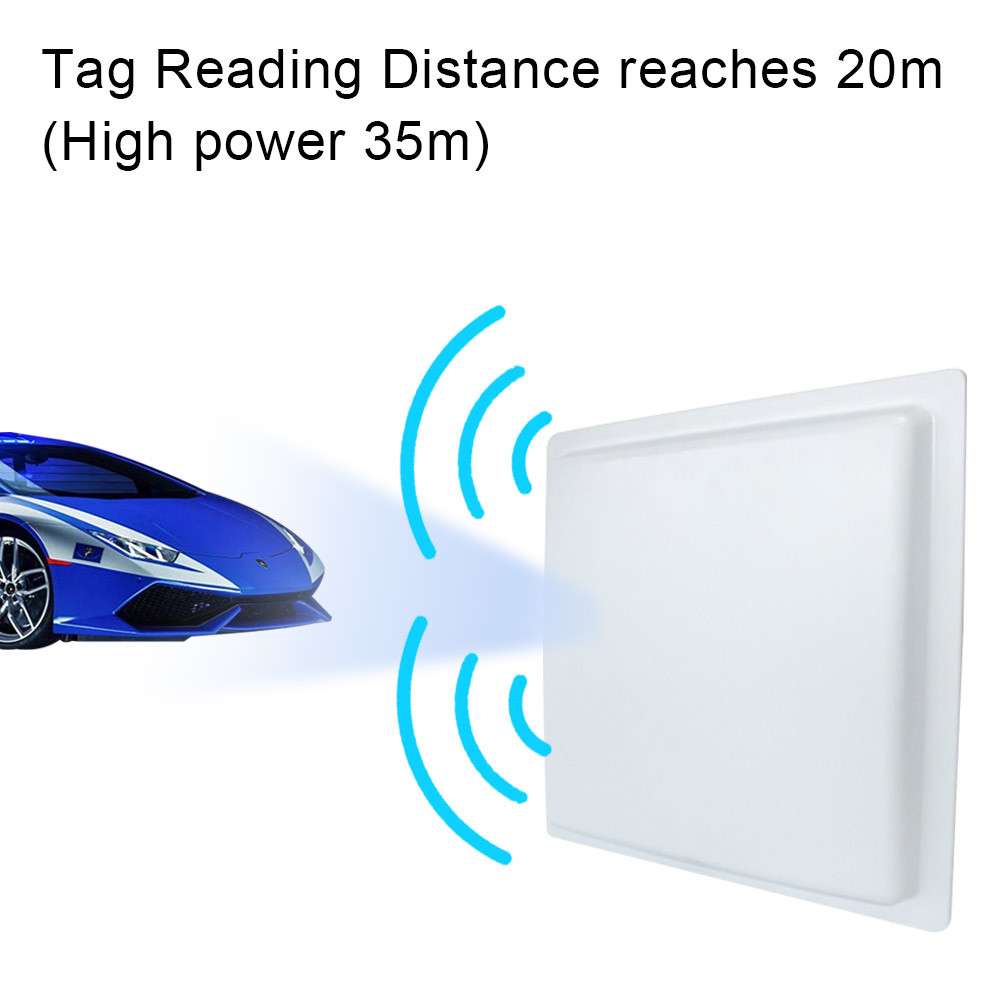

Long range integrated UHF reader/writer, tag reading distance reached 20m, hige power 35 m
Support sp) development in multiple languages, such as VC, VB, C, etc. Supports online upgrades, has a rich communication interface, and can be customized to the needs of users.
