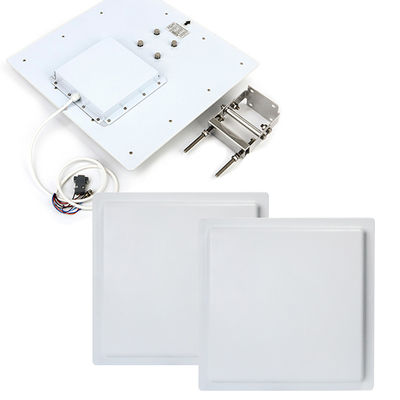

UHF RFID Card Access Control Long Distance 5 Meters Tag Passive Reading Antenna

UHF RFID Card Access Control Long Distance 5 Meters Tag Passive Reading Antenna

  • High Light

    UHF RFID Card Access Control

    ,

    960mhz RFID Card Access Control

    ,

    960mhz Rfid Access Control System

  • Frequency
    860-960mhz
  • Protocol
    ISO 18000-6C
  • Product Name
    Passive Reading Antenna Uhf Rfid Reader
  • Antenna
    7dbi Circular Antenna
  • Reading Distance
    0-8m
  • Communication
    WG26/34/98, RS-485/232, USB
  • Status Indicator
    Buzzer
  • Power Supply
    9V
  • Working Frequency
    ISM 902 928MHz And ISM 865-868MHz
  • Working Mode
    Passive/active Reading
  • Place of Origin
    Shenzhen, Guangdong
  • Brand Name
    TIMMY
  • Certification
    CE FCC RoHs
  • Model Number
    TM-820
  • Minimum Order Quantity
    1pcs (sample)
  • Price
    Negotiable
  • Packaging Details
    10pcs/ctn 475*360*275mm /ctn
  • Delivery Time
    5-10 work days
  • Payment Terms
    D/A, D/P, T/T, ,Paypal
  • Supply Ability
    10000pcs Per month

UHF RFID Card Access Control Long Distance 5 Meters Tag Passive Reading Antenna

UHF RFID Card Access Control Long Distance 5 Meters Tag Passive Reading Antenna



The TM-820 is an integrated UHF reader with multi-protocol compatibility, fast read rate, multi-tag reading, and
waterproof design. It can be widely used in various RFID systems.





1, RFID Card Access Control Product specification:
  •  Support ISO18000-6B and EPC Class1 GEN2 international standards;
  •  Integrated structure design, beautiful appearance, suitable for outdoor environment;
  •  Integrate high-performance linear polarized antennas, Recognize the long range distance stably;
  •  Supports tag echo signal detection, tag data filtering, clock stamping, and input and output functions;
  •  Recognition speed is fast, and the identification of single label can reach 140 times/second;
  •  Adopt frequency hopping working mode, strong anti-interference ability and high recognition sensitivity;
  •  Support sp) development in multiple languages, such as VC, VB, C, etc.
  •  Supports online upgrades, has a rich communication interface, and can be customized to the needs of users.



UHF RFID Card Access Control Long Distance 5 Meters Tag Passive Reading Antenna 0

UHF RFID Card Access Control Long Distance 5 Meters Tag Passive Reading Antenna 1



RFID Card Access Control  Application:

  •  Warehouse Management
  •  Supply Chain Management
  •  Vehicle Management
  •  Line Management
  •  Source Management
  •  Asset Management
  •  Personnel Management
  •  Attendance Management
  •  Product Anti-counterfeiting Management

RFID Card Access Control Technical parameters:



model TM-820
Supported protocols ISO18000-6B,ISO18000-6C(EPC GEN2)
working frequency ISM 902928MHz and ISM 865868MHz,Other frequency standards (customized)
Operation mode Fixed Frequency or Software Programmable
RF power 0~30dBm,Software Programmable
Reading speed Single card average reading is 64bits, less than 6ms,
  Software Programmable
Work mode reading Active and reading passive, Software Programmable
Communication Ports N:Wiegand26/34/98, RS485,RS232 ,USB
  E:Wiegand26/34/98, RS232,TCP ,USB
Input interface 1 way trigger input
Reading range >20m (High power 35m)
Status indicators buzzer
Antenna 10dbi circular antenna
Power supply DC9V
Size 445mm×445mm×35mm
Weight 2.55 Kg(Package:4.65kg)
Operation Temp -20~+70





RFID Card Access Control FAQ:



Q1: Are you a factory or a trade company?
Reply :We are a factory located in Shenzhen, China, welcome to visit our factory at any time.

Q2: How many days can I get the products if I placed purchase order?
Reply : In general, about 1-3 working days for Sample and ready stock;
15 working days for production order after receving order deposit.

Q3: Which payment can be accepted?
Reply: T/T, Paypal, and L/C etc.

Q4: When did you start?
Reply : We have started our factory from year 2000, and we have experience of producing and developing Biometric attendance and access control terminals for more than 15 years. All of our engineers are professors in this area.

Q5: Can I get some samples?
Reply: We are honored to offer you samples, you can send E-mail to us or contact us to require samples. It's convenient for you, so please do not hesitate to contact us if you need a sample.

Q6: Can I print my Logo?
Reply:No problem, Logo printed is free for order of more than 100pcs. OEM is acceptable.

Q7: How does your factory do regarding QC?
Reply:Quality is priority, we are always pay more attention on quality controlling from the very beginning to the very end. What's more, our company got CE, FCC, ROSH, China policy system certificates of all products.

Any Interests, please contact us freely.
