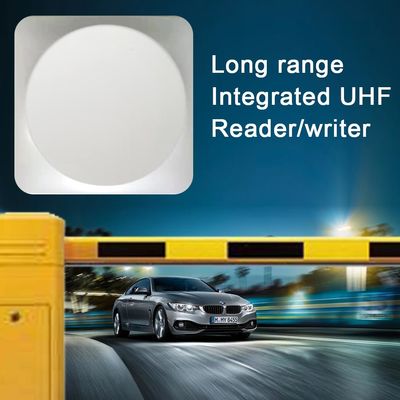

TM-SM06-A is a High Performance UHF integrated reader for long range operation.
The reader operates in frequency range of 860MHz～960MHz design to read ISO18000‐6C and ISO18000‐6B protocol ID Tag.
The reader can be widely applied in many RFID application systems such as logistics, access control, and anti-counterfeit and industrial production process control system. Waterproof for outdoor use.
Our UHF reader support reading distance 0~4m, 6~10m, 10~15m, 20m~40m.
Main features for RFID UHF Card Access Control reader :
* Automatic scan Com Port/Network
* Support firmware upgrade
* Support ExportConfig/ImportConfig
* Multiple country languages
* Global frequency(860~960MHz)
* Password mode
* Read specify tag
* Relay
* Data cache
* Multiple customizable communication protocols
* Remote listening
* RSSI
Specification Of RFID UHF Card Access Control reader :
Product Features: (QM100)
RF channel is based on QM100 RFID chip;
Wide range of label reading distance, adjustable from 10cm to 6m, to suit different applications.
Multi-label recognition capability: >50 labels.
Label recognition speed: >50 sheets/second.

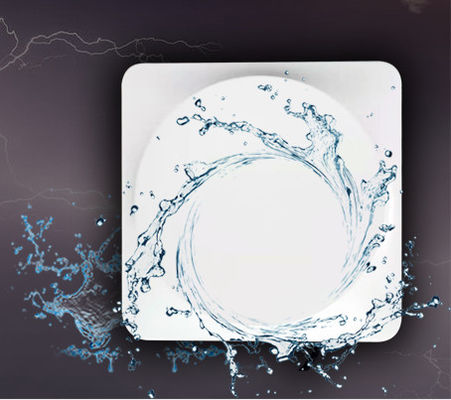

Waterproof appearance design;
The card reading distance is more than 6 meters
1080g
Single outer packaging size: 350*240*76MM
10 sets per box: 500*375*405
| ITEMS | DESCRIPTION |
| Model: | TM-SM06-A |
| System Parameter: | ARM7+UHF model |
|
Operating Frequency:
|
International(920～925MHz) |
| USA(902～928MHz) | |
| EUR(865～868MHz) | |
| Others(Customized Tag) | |
| Read Range: | >5m |
| Group of reading performance: | >50PCS |
| Support Protocol: | ISO18000-6C(EPC GEN2) |
| Frequency Hopping Mode: | Fixed Frequency Band and FHSS Software Programmable； |
| Operating Mode: | Master‐Slave Mode(Online Mode),Time Scheduled Modes,Trigger Mode |
| Output Power: | 0-30dBm(Adjustable) |
| Antenna: | 8dBi circular polarize antenna (Integrated) |
| Communication Port: | RS232,RS485,Wiegand26,Wiegand34,USB , RJ45,WIFI,GPRS Optional |
| Power: | +12V |
| Prompt: | Beep or LED light flash |
| Power Consumption: | < 3W |
| OPERATING ENVIRONMENT | |
| Operation: | －20℃ ～ +70℃(Customized) |
| Humidity: | 20％ ～ 95％(without condensation) |
| Storage: | －40℃ ～ +125℃ |
| PHYSICAL PARAMETER | |
| Dimension: | 180x180x47MM |
| Net Weight: | 750G |
| Weight: | 1500G |
| ACCESSORES | |
|
Software Pack (Optional): |
API Software Development Kits complete with VB,C#Sample Program |
Our products are sold all over the world, you can rest assured.
