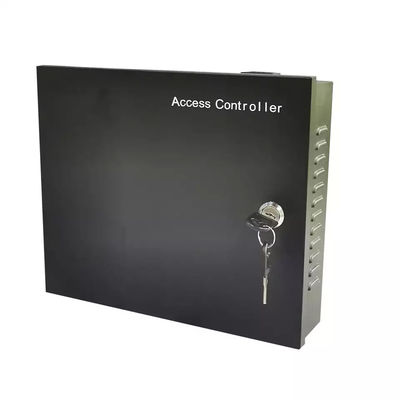

Wiegand RS485 USB TCP IP 4 Door Access Controller Access Control System With Free SDK

1pcs (sample)
MOQ
Negotiable
Price
Wiegand RS485 USB TCP IP 4 Door Access Controller Access Control System With Free SDK
Features Gallery Product Description Request A Quote
Features
Specifications
User Capacity: 5000
Communication: TCP/IP/Wiegand/RS485/USB
Material: ABS+PCBA
Certificate: CE, ROHS, FCC
Warranty: 1 Year
Color: White
Free Software: Cloud, Desktop, Mobile Phone APP
Special Features: RESET, Alarm I/O, Other
Highlight:

Wiegand 4 door access controller

,

RS485 4 door access controller

,

TCP IP door access control system
Basic Infomation
Place of Origin: China
Brand Name: TIMMY
Certification: CE, RoHS, FCC
Model Number: Q1
Payment & Shipping Terms
Packaging Details: Packed in carton with sponge
Delivery Time: Sample order 2~3 workdays; Bulk order 6~12 workdays
Payment Terms: T/T, ，Paypal
Supply Ability: 3000pcs per week
Product Description

4 door access controller Features:



Products Features:
- Authentication: Fingerprint, proximity card, PIN and combination
- Any combination of verification, flexible and secure
- Readers: Our access controllers support our own access control terminals as well as universal support for any readers with wiegand 26/34 wiring protocol
- Remote Access: Control the access in a remote location (through background software)
- Real-time Monitoring: Monitor real-time access logs (through background software)
- Access Management: Time zone groups for days and weeks (8 each), 10 departments/groups, 5 Authentication methods
- Door interlock (A/B door)

Wiegand RS485 USB TCP IP 4 Door Access Controller Access Control System With Free SDK 0








4 door access controller Specification:

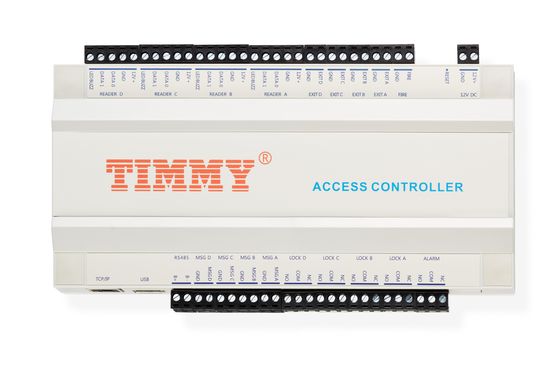

Model:  TM-S04(Access Control Panel)
 Door Supported: Four
 Identification Mode:  1:1,1:N
 User Capacity  5000
 Record Capacity  100,000
 Identification Speed  <0.8 Sec
 Working Voltage   12V

 Working Style   Online
 Fire Alarm Lock Disable  Supported
 Door Magnets  Supported
 WG26/34 Reader  Supported
 Communication  TCP/IP, USB, RS485, optional Wifi, optional GPRS
 Database Support  Access and SQL
 Software   Free
  Door open delay   1-255s(adjustable)













4 door access controller Specification:

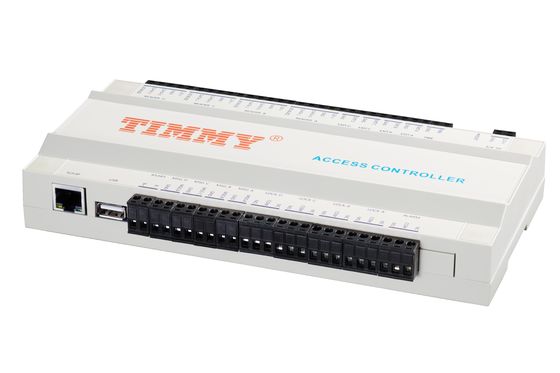

4 door access controller can be widely used to for rfid card/ fingerprint reader/ face reader to manage the people accessing and exit,   supporting  USB or Wiegand ,RS485, TCP/IP (WIFI,GPRS Optional) communication, it comes with free software and free sdk. the data can be stored in software and server.

   Wiegand RS485 USB TCP IP 4 Door Access Controller Access Control System With Free SDK 1

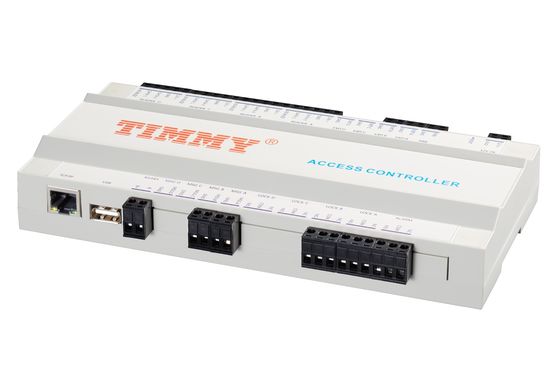

4 Door access controller  can connect to different readers like UHF Card reader, qr code reader, ID/IC Card reader,etc through wiegand or RS485. The reader can transfer the signal and do  access management.





  Wiegand RS485 USB TCP IP 4 Door Access Controller Access Control System With Free SDK 2





About Us:

Shenzhen Union Timmy Technology Co,.Ltd. is one of the leading professional Manufacturer engaged in the R&D and production of Bio-metric time attendance and access control system in China since its foundation in 2000, and Dedicated to the manufacturing and selling of Fingerprint& Face Recognition Time Attendance and access control over the past 21 years.

Our factory covers an area of 2,500 Square meters with around 100 Employees, So far we have obtained the verified vertificates like ISO9001, CE, FCC, ROHS, etc. and achieved China's highest manufacturing honor of "National High-tech Enterprise" in 2017 with more than 10 patents.

We had grown rapidly on our overseas operation since we formally established our own export department in 2016. Each year we will make at least 7 times of business trip to join the exhibition or visit our clients in some countries, We have two brand: " TIMMY" and new "TiMY". TiMY( TIMMY) does business cooperation with worldwide friends through the advantages of High Quality Guarantee, Good Price Support, Professional technical service team, Flexible OEM on Hardware& Software.
Wiegand RS485 USB TCP IP 4 Door Access Controller Access Control System With Free SDK 3
