UHF Antenna Long Range RFID Reader Feature:
We supply various long range UHF RFID readers and UHF card reader/sender.
Our UHF reader support reading distance 0~4m, 6~10m, 10~15m, 20m~40m.
Support fast massive card reading 50~200pcs per second. 860~960Mhz frequency support. Waterproof design for outdoor use.
TM-SM60A UHF TAG Card Reader, the model is waterproof and small size(18*18*4.7cm):
1. it can detect UHF card from 10cm to 6m.
2. it can read 50pcs UHF card per second.
3. quality is guaranteed and performance is stable.
4. It can support to read and write card at same time
5. freely share software as well as SDK file.
6. Standard Wiegand 26/34 and USB connection, it can have optional feature of adding WIFI or TCP/IP.
UHF Antenna Long Range RFID Reader Introduction:
TM-SM06A Long Range UHF Antenna reader is a fixed compact reader, compatible with ISO 18000-6C and ISO 18000-6B standards, its operating frequency is 902MHz ~928MHz, compact appearance, excellent read and write performance. The reader can be widely used in warehouse logistics management, retail logistics center management, enterprise transportation management and automated production line management and other fields.
UHF Antenna Long Range RFID Reader Specification
|
System parameters:
|
ARM7+UHF module
|
|
Working frequency:
|
National standard (920 ~ 925MHz)
|
|
American Standard (902～928MHz)
|
|
|
European standard (865～868MHz)
|
|
|
Other multinational frequency standards (customized)
|
|
|
Recognition distance:
|
>6 meters
|
|
Group read performance:
|
>50 tags
|
|
Label protocol:
|
Support ISO18000-6B, ISO18000-6C (EPC GEN2) protocol electronic label
|
|
Frequency hopping mode:
|
broad spectrum frequency hopping (FHSS) or fixed frequency, which can be set by software;
|
|
Working mode:
|
automatic mode, trigger mode, interactive mode, etc.
|
|
RF power:
|
0-30dBm (power software adjustable)
|
|
Antenna parameters:
|
8dBi circularly polarized antenna (built-in)
|
|
Support interface:
|

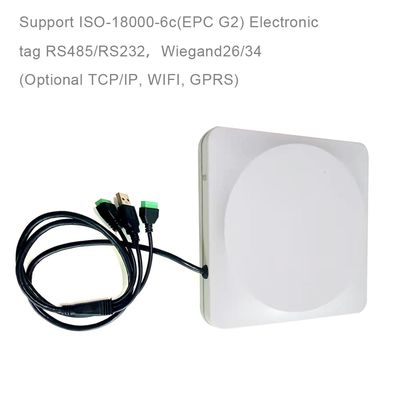

Standard RS232, RS485, Wiegand26, Wiegand34, optional RJ45, WIFI, GPRS, etc.
|
|
Operating voltage:
|
+12V
|
|
Identification prompt:
|
beep or LED flash
|
|
Power consumption:
|
<1W
|
|
Working Environment
|
|
|
Working temperature:
|
-20°C ~ +70°C (out of range need to be customized)
|
|
Working humidity:
|
20% ~ 95% (non-condensing)
|
|
Storage temperature:
|
-40℃～+125℃
|
|
physical parameters
|
|
|

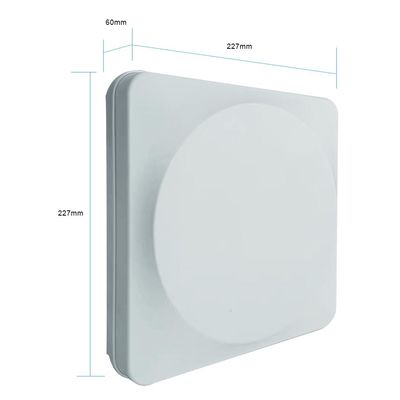

Dimensions:
|
227x227x60MM
|
|
Net weight:
|
1000G
|
|
Gross weight:
|
2000G
|
|
Other Instructions
|
|
|
Secondary development:
|
Provide dynamic link library (DLL) and demo software source code to support secondary development.
|
|
Remarks:
|
Recognition distance and group reading performance depend on tag performance and specific application scenarios, and can be
customized as required |
