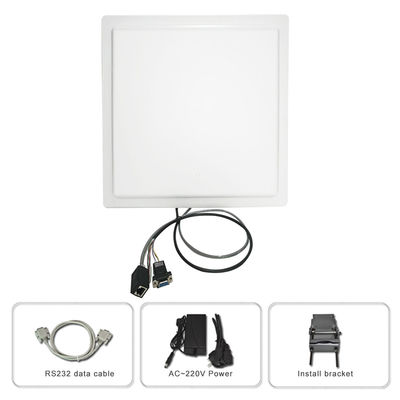

Linux IP67 15m Long Range UHF RFID Reader USB TCP WIFI For Parking Management

Linux IP67 15m Long Range UHF RFID Reader USB TCP WIFI For Parking Management

  • High Light

    Linux UHF RFID Reader

    ,

    IP67 UHF RFID Reader

    ,

    15m Long Range RFID Reader

  • Supported Protocols
    ISO18000-6B,ISO18000-6C(EPC GEN2)
  • Operating Frequency
    ISM 902~928MHz And ISM 865~868MHz,Other Frequency (customized)
  • Communication
    RS232, RS485, Wiegand26/34, RJ45, WIFI, GPRS
  • RF Power
    0~30dBm,Software Programmable
  • Group Of ReTMing Perfor Mance
    20 PCS
  • Operation Temp.
    -20℃~+70℃
  • Prompt
    Beep Or LED Light Flash
  • Software Pack
    API Software Development Kits Complete With VB,C#Sample Program
  • Antenna
    12dBi Linearly Polarize Antenna ( Integrated)
  • Gross Weight
    5 Kg

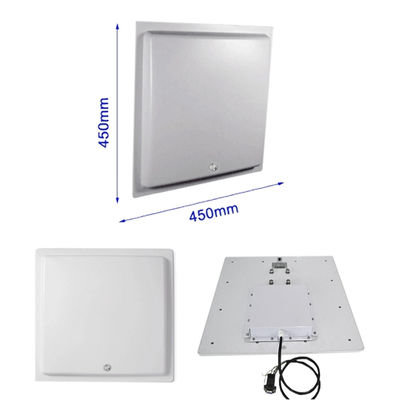

  • Dimension
    445*445*74 Mm
  • Place of Origin
    China
  • Brand Name
    TIMMY
  • Certification
    CE, RoHS
  • Model Number
    TM-SM15
  • Minimum Order Quantity
    1pcs (sample)
  • Price
    Negotiable
  • Packaging Details
    Export packing: 18 units / Outer Box
  • Delivery Time
    Sample order 2~3 working days; Bulk order 6~12 working days
  • Payment Terms
    T/T, , Payal
  • Supply Ability
    1000 pcs per week

Linux IP67 15m Long Range UHF RFID Reader USB TCP WIFI For Parking Management

RFID Card Access Control Product Applications:

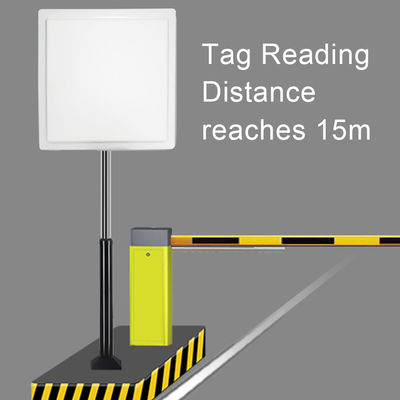

TM-SM15 is a High Performance UHF integrated ReTMer for long-range operation. Compact ReTMer with integrated 12dBi linear polarized UHF Far Field antenna based on proprietary efficient digital signal processing algorithm, the reTMer is capable of up to 15m ReTM Range and 6m Write Range.

It is widely apply in Warehouse Management, Supply Chain Management, Vehicle Management. Line Management, Source Management, Asset Management, Personnel Management, Attendance Management, Product Anti-counterfeiting Management



The product also meets the CE, FCC technology requirements.



Features:



· Support two working modes: Trigger to Read & Always Read (Default)

· Support different Wiegand data output (Wiegand 26 by default)

· LED at the bottom of readers indicating the reading status (7-color indicators: red, green, blue, yellow, cyan, purple, and white)

· Multiple communication modes, supporting Wiegand and RS485

· Protection level of IP66



RFID Card Access Control Features:

1. Support ISO18000-6B and EPC Class1 GEN2 international standards;

2. Integrated structure design, beautiful appearance, suitable for outdoor environment;

3. Integrate high-performance linear polarized antennas; recognize the long-range distance stably;

4. Supports tag echo signal detection, tag data filtering, clock stamping, and input and output functions

5. Recognition speed is fast, and the identification of single label can reach 140 times/second;

6. Adopt frequency hopping working mode, strong anti-interference ability and high recognition sensitivity;

7. Support development in multiple languages, such as VC, VB, C, etc.

8. Supports online upgrades, has a rich communication interface, and can be customized to the needs of users.



RFID Card Access Control Specification



Model
TM-SM15
Supported protocols
ISO18000-6B,ISO18000-6C(EPC GEN2)
Communication
Wiegand/USB/RS232/RS485
working frequency
ISM 902~928MHz and ISM 865~868MHz,Other frequency standards (customized)
Operation mode
Fixed Frequency or Software Programmable
RF power
0~30dBm,Software Programmable
Reading speed
Single card average reading is 64bits, less than 6ms,
Software Programmable
Work mode
reading Active and reading passive, Software Programmable
Communication Ports

RS232, RS485, Wiegand26, Wiegand34, RJ45, WIFI, GPRS

Input interface
1 way trigger input
ReTM Range
>15 m
Status indicators
Beep or LED light flash
Antenna
12dBi linearly polarize antenna ( Integrated)
Power supply
DC 12V
Size
215mm×215mm×50mm
Dimension
215mm×215mm×50mm
Gross Weight
5 Kg
Operation Temp.
-20℃~+70℃



Linux IP67 15m Long Range UHF RFID Reader USB TCP WIFI For Parking Management 0











Facial Recognition Access Control System FAQ:



Q: 1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q: 2. What is the lead time?
A: Sample needs 1-3 days, mass production time needs 10-25 days for order less than 5000 pcs. Time is negotiable.

Q: 3. Do you have any MOQ limit?
A: No MOQ is necessary

Q: 4. How do you ship the goods and how long does it take arrive?
A: Sample order, we usually suggest the shipping by DHL, UPS, FedEx or TNT. Shipping time is 7-8 days to arrive. For bulky order, air
cargo or sea shipping are recommended.



Q: 5. What is the warranty for the products?
A: Yes, 1 year warranty against the shipping date for the products.

Q: 6. Do you supply OEM service?
A: Yes, We support OEM like logo printing or box customization if meet at our MOQ.



Q: 7. How is your after-selling service?
A: We have after-sales technical team, provide 24 hours online technical support.


Should you have any inquiry, feel free to contact us



Warranty:

Timmy warranties all the hardware products to be free from manufacturing defects. It also warranty this hardware product against defects in materials and workmanship that result in a material deviation from the applicable published Timmy technical specifications or customized specifications for that particular client.
