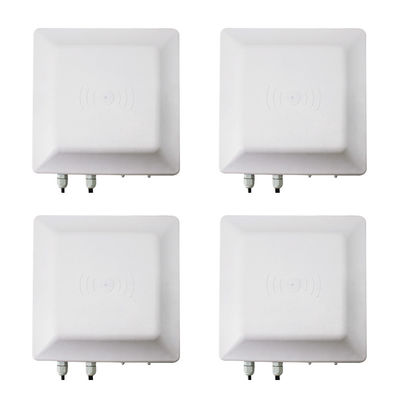

School Parking RFID Card Access Control Wiegand 26/34 Port Integrated
Long Range School Parking System RFID Card Access Control Wiegand 26/34 Port Integrated UHF Reader
RFID Card access control
Long range integrated UHF reader/writer, tag reading distance reached 20m, hige power 35 m
Product Applications:
The TM-805 is an integrated UHF reader with multi-protocol compatibility, fast read rate, multi-tag reading, and waterproof
design. It can be widely used in various RFID systems.
It is widely used in:
Warehouse Management
Supply Chain Management
Vehicle Management
Line Management
Source Management
Asset Management
Personnel Management
Attendance Management
Product Anti-counterfeiting Management
|
Model
|
TM-805
|
|
Supported protocols
|
ISO18000-6B,ISO18000-6C(EPC GEN2)
|
|
Communication
|
Wiegand/USB/RS232/RS485
|
|
working frequency
|
ISM 902~928MHz and ISM 865~868MHz,Other frequency standards (customized)
|
|
Operation mode
|
Fixed Frequency or Software Programmable
|
|
RF power
|
0~30dBm,Software Programmable
|
|
Reading speed
|
Single card average reading is 64bits, less than 6ms,
Software Programmable |
|
Work mode
|
reading Active and reading passive, Software Programmable
|
|

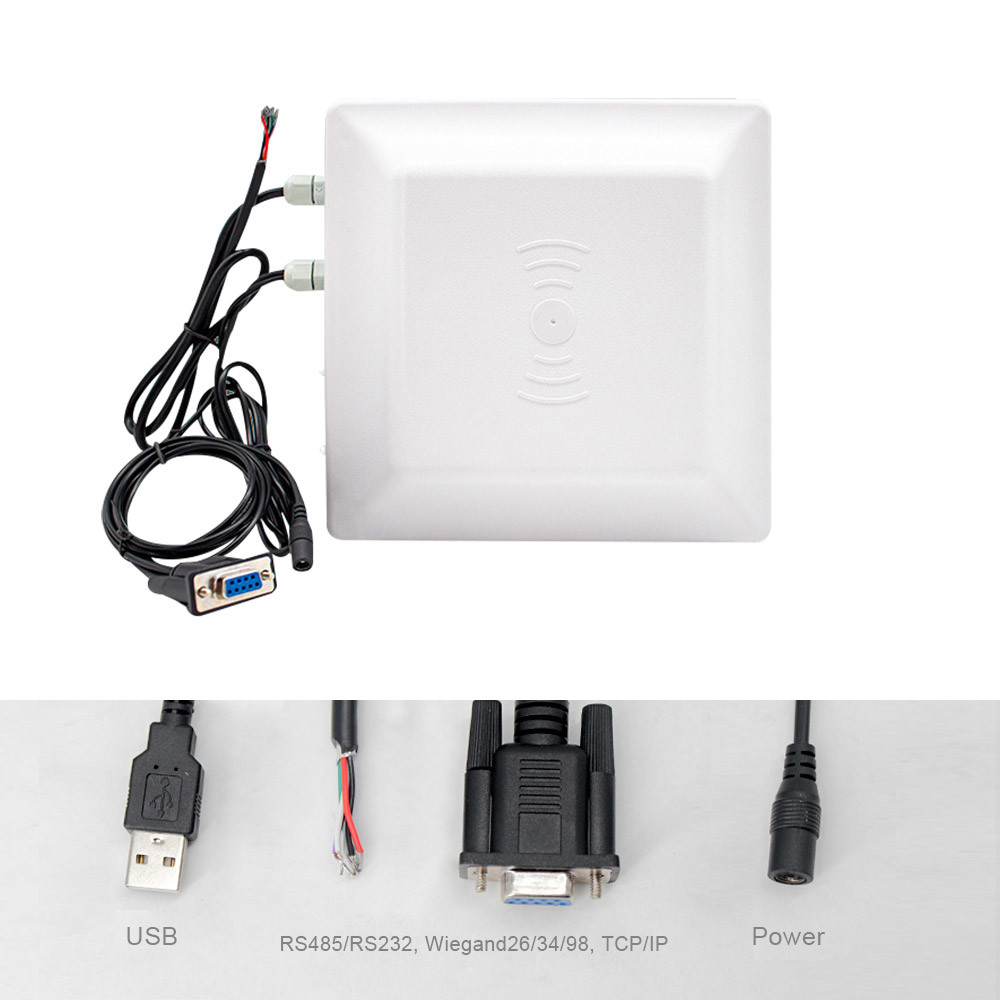

Communication Ports
|
N:Wiegand26/34/98, RS485,RS232 ,USB
E:Wiegand26/34/98, RS232,TCP ,USB |
|
Input interface
|
1 way trigger input
|
|
Reading range
|
>20m (High power 35m)
|
|
Status indicators
|
buzzer
|
|
Antenna
|
10dbi circular antenna
|
|
Power supply
|
DC 9V
|
|
Size
|
445mm×445mm×35mm
|
|
Weight
|
2.55 Kg
|
|
Operation Temp.
|
-20ºC~+70ºC
|
Support ISO18000-6B and EPC Class1 GEN2 international standards
Integrated structure design, beautiful appearance, suitable for outdoor environment
Integrate high-performance linear polarized antennas, Recognize the long range distance stably
Supports tag echo signal detection, tag data filtering, clock stamping, and input and output functions
RFID Card access control specification:

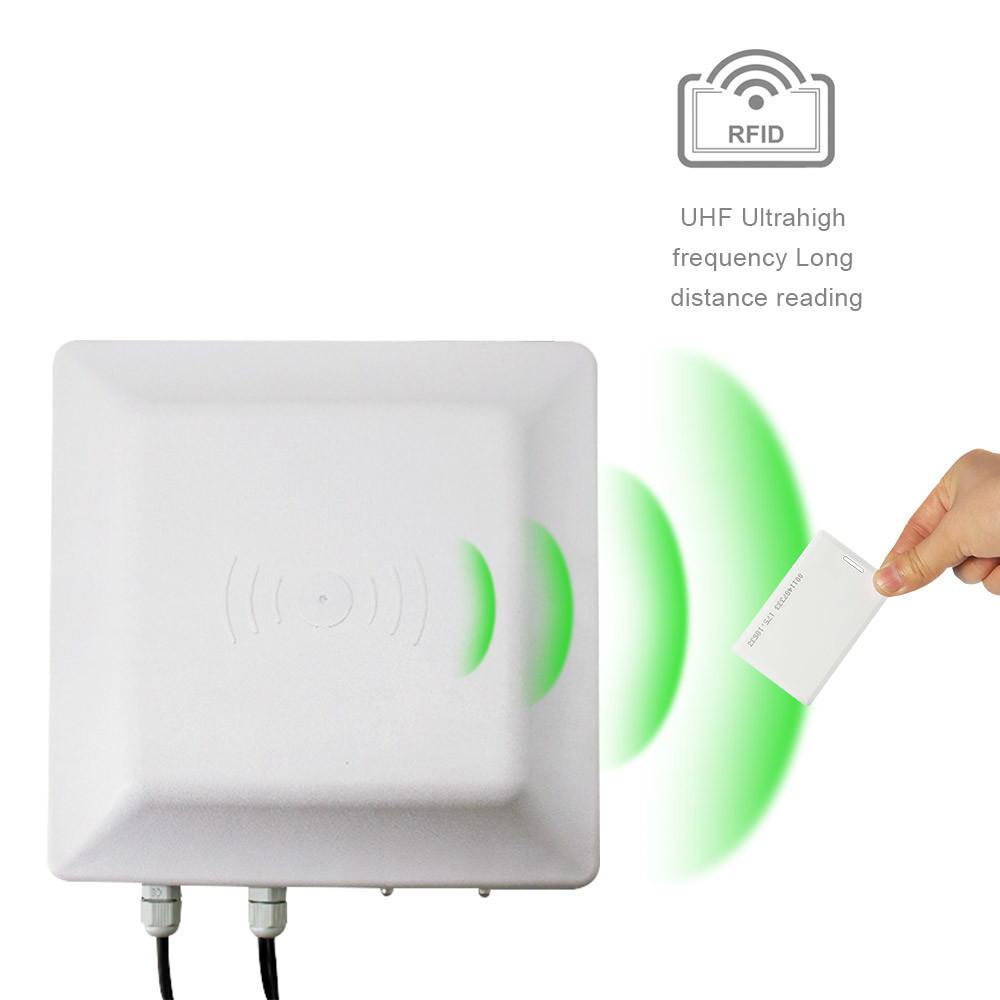

UHF Ultrahigh frequency long distance reading, group tags reading, to read the tags at per time, working frequency ISM 902-928 MHz and ISM 865-868 MHz
RFID Card access control features:
An integrated UHF reader, with multi-protocol compatibility, fast read rate, multi-tag reading, and waterproof design. It can be widely used in various RFID systems
Recognition speed is fast, and the identification of single label can reach 140 times/second. Adopt frequency hopping working mode, strong anti-interference ability and high recognition sensitivity;
RFID card access control advantage:
High speed transmission, fast card reading, for software setting, 115200bps file transmission speed for efficient work
RFID card access control application:
RFID card access control FAQ?
Q1: Are you are trading company or manufacturer factory?
We are the professional manufacturer of Biometric time attendance and access control in Shenzhen, China with 20 years history.
Q2: Can I take free sample for test?
We did not offer free sample, but we can reduce the sample cost from bulk order.
Q3: What kind of OEM can you do for us?
we do support OEM logo putting on device case, Package box, boot up display, even on software interface.
Q43: What is your warranty?
Standard 1 year, but we support giving some free spare parts for repairing as if we did have bulk order cooperation.
Q5. What about your after selling service when i met any question?
We have professional technical support team who can give realtime and convenient service support and instruction online through Email, Skype, Whatsapp, Wechat,etc.
Our products are sold all over the world, you can rest assured.
