Wiegand RS232 TCP Usb Uhf Rfid Reader 20 Meters For Warehouse Gate
School/Parking/Warehouse Gate Fast Speed Wiegand RS232 TCP USB 20 Meters Long Range RFID UHF Reader
RFID Card Access Control Product Applications:

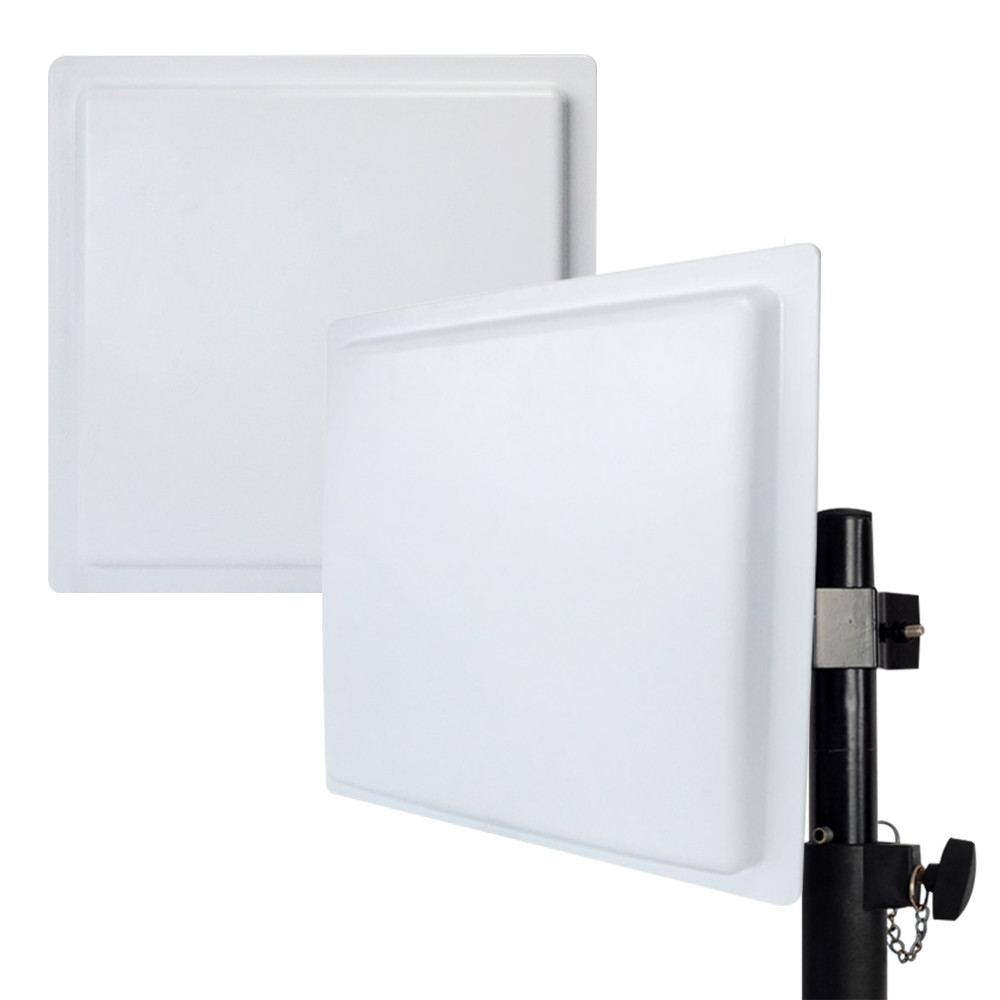

The TM-805 is an integrated UHF reader with multi-protocol compatibility, fast read rate, multi-tag reading, and waterproof design. It can be widely used in various RFID systems.
It is widely used in:
Warehouse Management, Supply Chain Management, Vehicle Management
Line Management, Source Management, Asset Management, Personnel Management,
Attendance Management, Product Anti-counterfeiting Management
RFID Card Access Control Features:
1. Support ISO18000-6B and EPC Class1 GEN2 international standards;
2. Integrated structure design, beautiful appearance, suitable for outdoor environment;
3. Integrate high-performance linear polarized antennas, Recognize the long range distance stably;
4. Supports tag echo signal detection, tag data filtering, clock stamping, and input and output functions;
5. Recognition speed is fast, and the identification of single label can reach 140 times/second;
6. Adopt frequency hopping working mode, strong anti-interference ability and high recognition sensitivity;
7. Support development in multiple languages, such as VC, VB, C, etc.
8. Supports online upgrades, has a rich communication interface, and can be customized to the needs of users.
RFID Card Access Control Specification
|
Model
|
TM-820
|
|
Supported protocols
|
ISO18000-6B,ISO18000-6C(EPC GEN2)
|
|
Communication
|
Wiegand/USB/RS232/RS485
|
|
working frequency
|
ISM 902～928MHz and ISM 865～868MHz,Other frequency standards (customized)
|
|
Operation mode
|
Fixed Frequency or Software Programmable
|
|
RF power
|
0~30dBm,Software Programmable
|
|

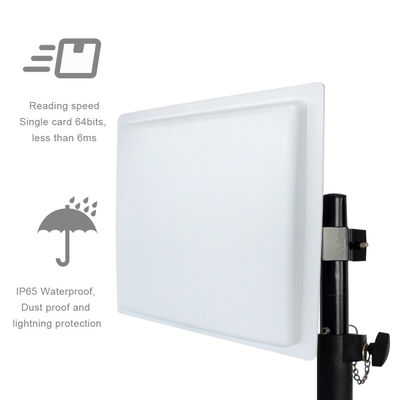

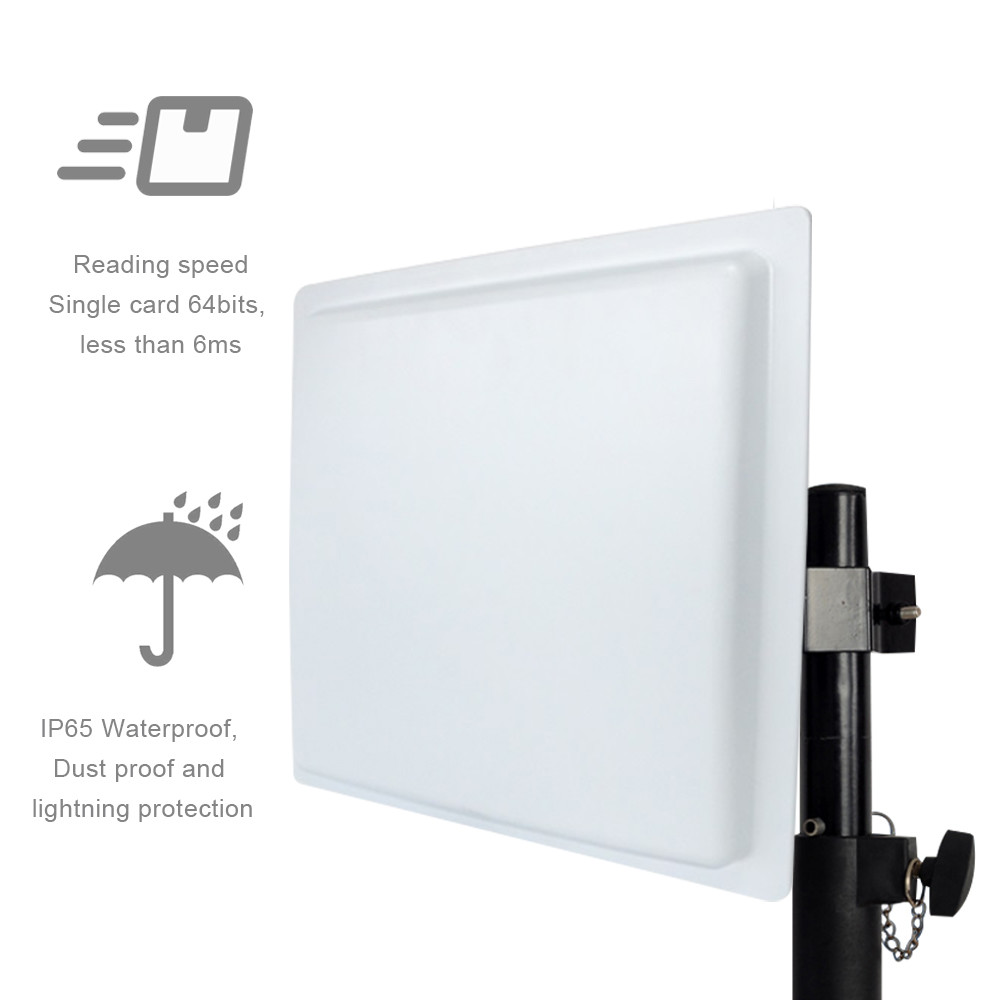

Reading speed
|
Single card average reading is 64bits, less than 6ms,
Software Programmable
|
|
Work mode
|
reading Active and reading passive, Software Programmable
|
|
Communication Ports
|
N:Wiegand26/34/98, RS485,RS232 ,USB
E:Wiegand26/34/98, RS232,TCP ,USB
|
|
Input interface
|
1 way trigger input
|
|
Reading range
|
0-5 m
|
|
Status indicators
|
buzzer
|
|
Antenna
|
7dbi circular antenna
|
|
Power supply
|
DC 9V
|
|
Size
|
215mm×215mm×50mm
|
|
Dimension
|
86*86*8mm
|
|
Weight
|
0.8 Kg
|
|
Operation Temp.
|
-20℃~+70℃
|
Facial Recognition Access Control System FAQ:
Q: 1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q: 2. What is the lead time?
A: Sample needs 1-3 days, mass production time needs 10-25 days for order less than 5000 pcs. Time is negotiable.
Q: 3. Do you have any MOQ limit?
A: No. 1pc is our MOQ.
Q: 4. How do you ship the goods and how long does it take arrive?
A: Sample order, we usually suggest the shipping by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. To bulk order air
or sea shipping is suggested.
Q: 5. What is the warranty for the products?
A: Yes, we offer 1 year warranty for the products.
Q: 6. How is your after-selling service?
A: We have after-sales technical team, provide 24 hours online technical support.
Q: 7. Do you supply OEM service?
A: Yes, We support OEM like logo printing or box customization on quantity of hundreds.
Should you have any inquiry, feel free to contact us
Facial Recognition Access Control System Warranty
Timmy warranties all the hardware products to be free from manufacturing defects. It also warranty this hardware product against defects in materials and workmanship that result in a material deviation from the applicable published Timmy technical specifications or customized specifications for that particular client.
