Built In UHF Integrated Antenna 6~10m 868mhz Long Range UHF RFID Reader

Built In UHF Integrated Antenna 6~10m 868mhz Long Range UHF RFID Reader

  • High Light

    USB Long Distance Rfid Reader

    ,

    RS485 Long Distance Rfid Reader

    ,

    long range uhf rfid reader

  • Supported Protocols
    ISO18000-6B,ISO18000-6C(EPC GEN2)
  • Communication
    Wiegand/USB/RS232/RS485
  • Working Frequency
    ISM 902~928MHz And ISM 865~868MHz,Other Frequency Standards (customized)
  • Operation Mode
    Fixed Frequency Or Software Programmable
  • RF Power
    0~30dBm,Software Programmable
  • Input Interface
    1 Way Trigger Input
  • Size
    215mm×215mm×50mm
  • Dimension
    86*86*8mm
  • Weight
    0.8 Kg
  • Operation Temp.
    -20℃~+70℃
  • Material
    PVC,PC
  • Printing
    Silk Screen Printing
  • Frequency
    125Khz/13.56Mhz/860-960Mhz,UHF
  • Application
    Access Control System
  • Place of Origin
    China
  • Brand Name
    TIMMY
  • Certification
    CE, RoHS
  • Model Number
    TM-805
  • Minimum Order Quantity
    1pcs (sample)
  • Price
    Negotiable

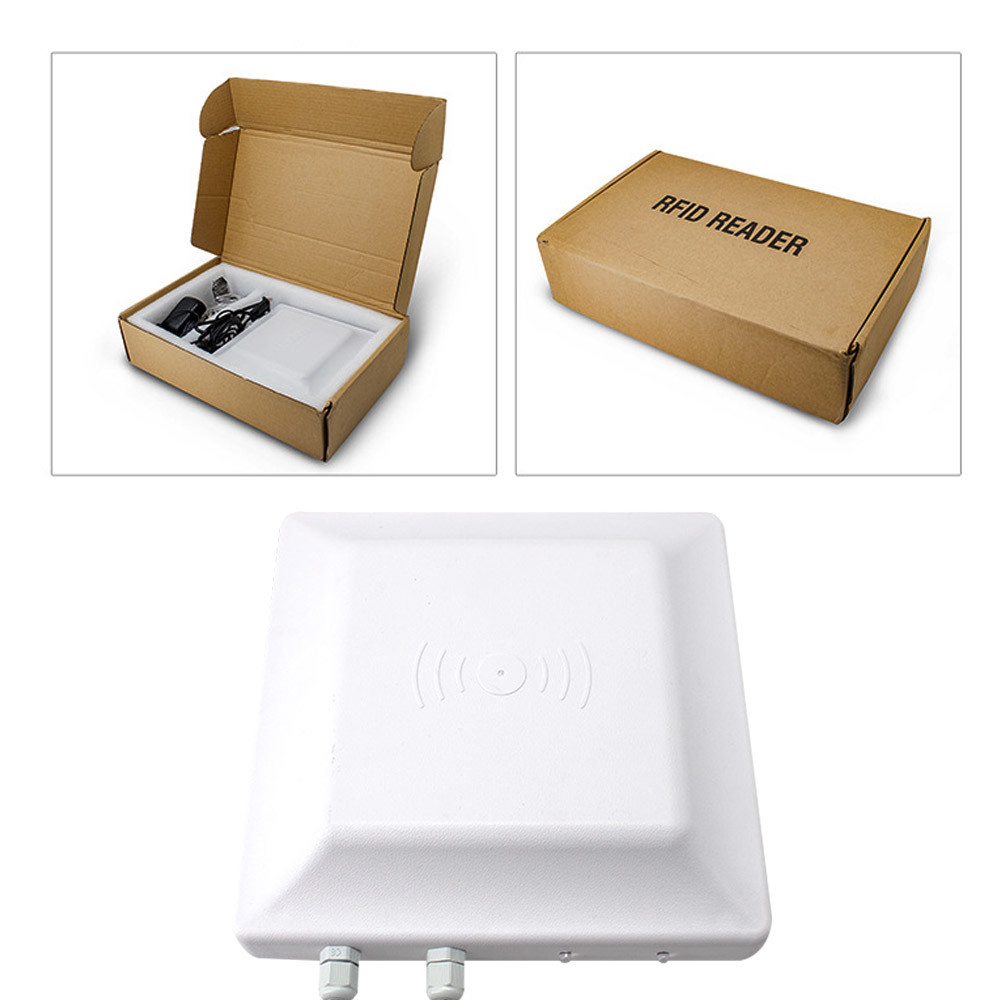

  • Packaging Details
    Export packing: 18 units / Outer Box
  • Delivery Time
    Sample order 2~3 working days; Bulk order 6~12 working days
  • Payment Terms
    T/T, , Payal
  • Supply Ability
    1000 pcs per week

Built In UHF Integrated Antenna 6~10m 868mhz Long Range UHF RFID Reader

5 Meters Wiegand RS232 RS485 USB Long Distance Rfid Reader School Attendance System



School Attendance System 5 Meters Wiegand RS232 RS485 USB Long Range UHF RFID Reader



RFID Card Access Control Product Applications:

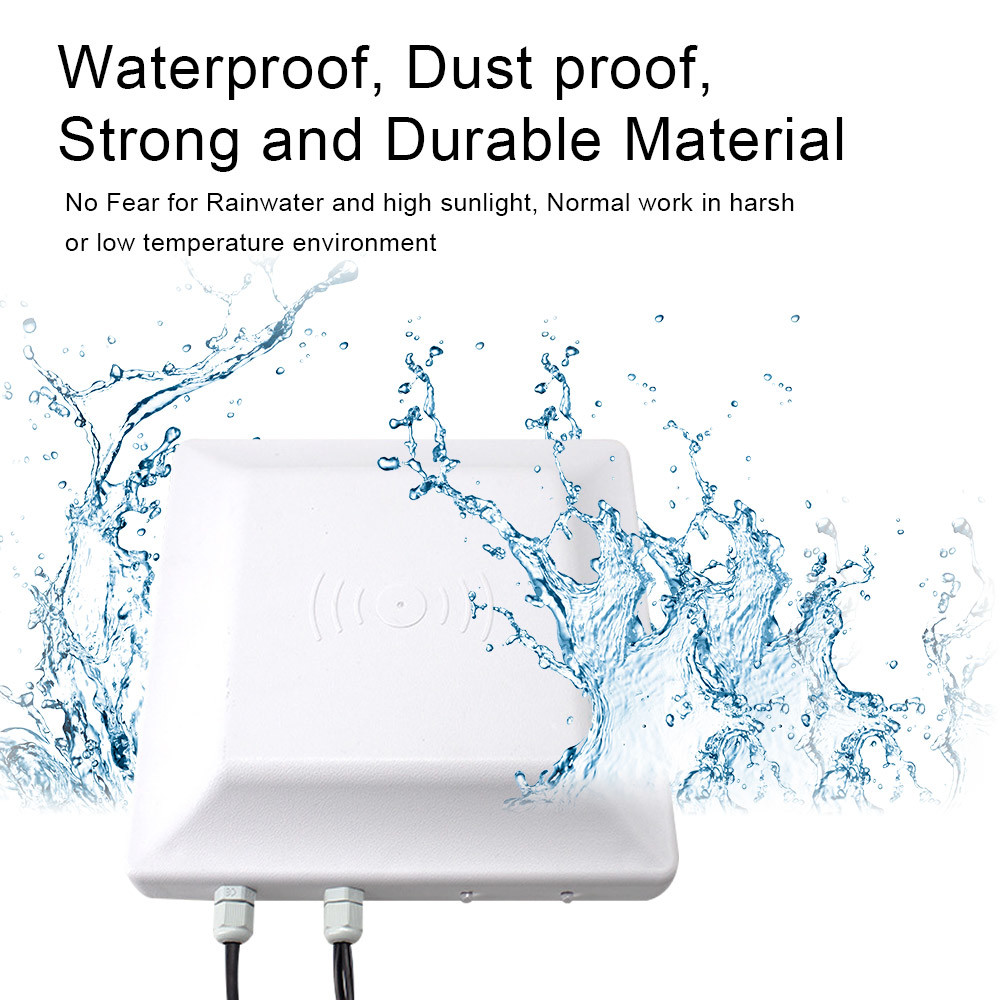

The TM-805 is an integrated UHF reader with multi-protocol compatibility, fast read rate, multi-tag reading, and waterproof design. It can be widely used in various RFID systems.
It is widely used in:
Warehouse Management, Supply Chain Management, Vehicle Management
Line Management, Source Management, Asset Management, Personnel Management,
Attendance Management, Product Anti-counterfeiting Management

RFID Card Access Control Features:

1. Support ISO18000-6B and EPC Class1 GEN2 international standards;
2. Integrated structure design, beautiful appearance, suitable for outdoor environment;
3. Integrate high-performance linear polarized antennas, Recognize the long range distance stably;
4. Supports tag echo signal detection, tag data filtering, clock stamping, and input and output functions;
5. Recognition speed is fast, and the identification of single label can reach 140 times/second;
6. Adopt frequency hopping working mode, strong anti-interference ability and high recognition sensitivity;
7. Support development in multiple languages, such as VC, VB, C, etc.
8. Supports online upgrades, has a rich communication interface, and can be customized to the needs of users.



RFID Card Access Control Specification



Model
TM-805
Supported protocols
ISO18000-6B,ISO18000-6C(EPC GEN2)
Communication
Wiegand/USB/RS232/RS485
working frequency
ISM 902~928MHz and ISM 865~868MHz,Other frequency standards (customized)
Operation mode
Fixed Frequency or Software Programmable
RF power
0~30dBm,Software Programmable
Reading speed
Single card average reading is 64bits, less than 6ms,
Software Programmable
Work mode
reading Active and reading passive, Software Programmable

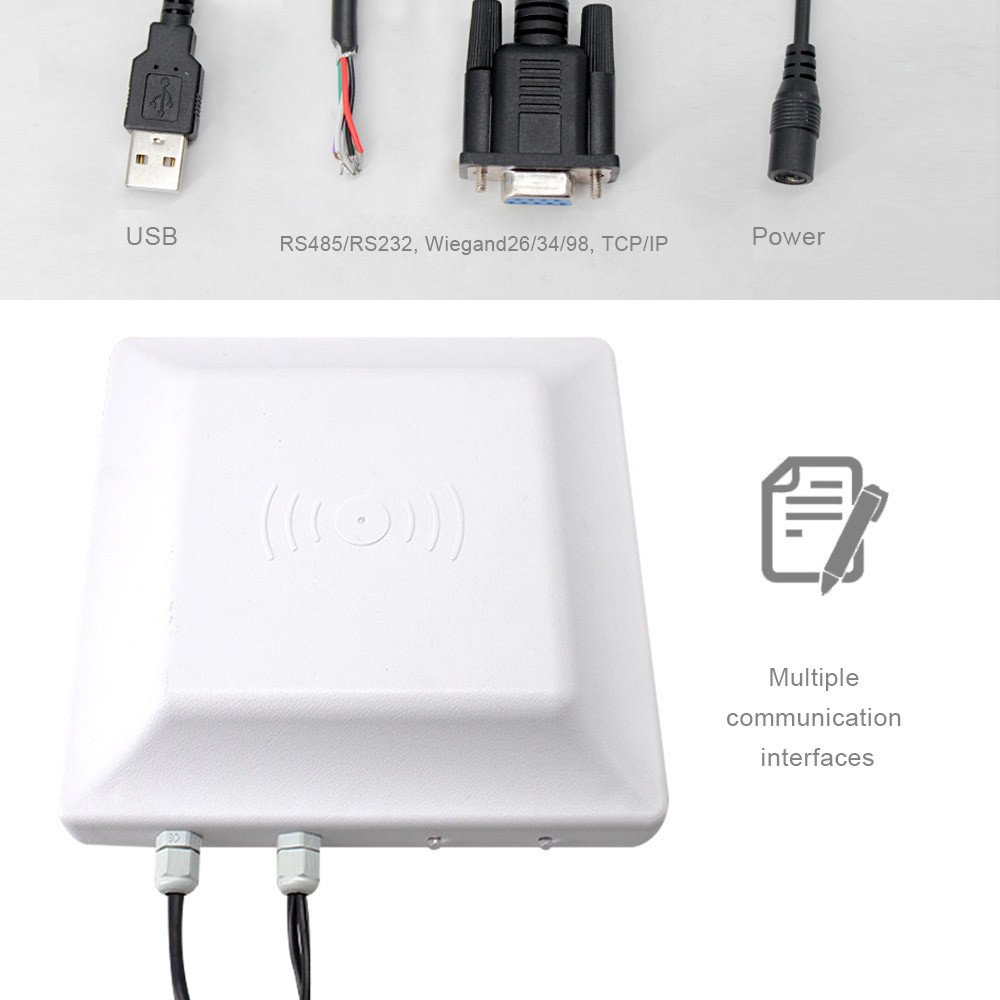

Communication Ports
N:Wiegand26/34/98, RS485,RS232 ,USB
E:Wiegand26/34/98, RS232,TCP ,USB
Input interface
1 way trigger input

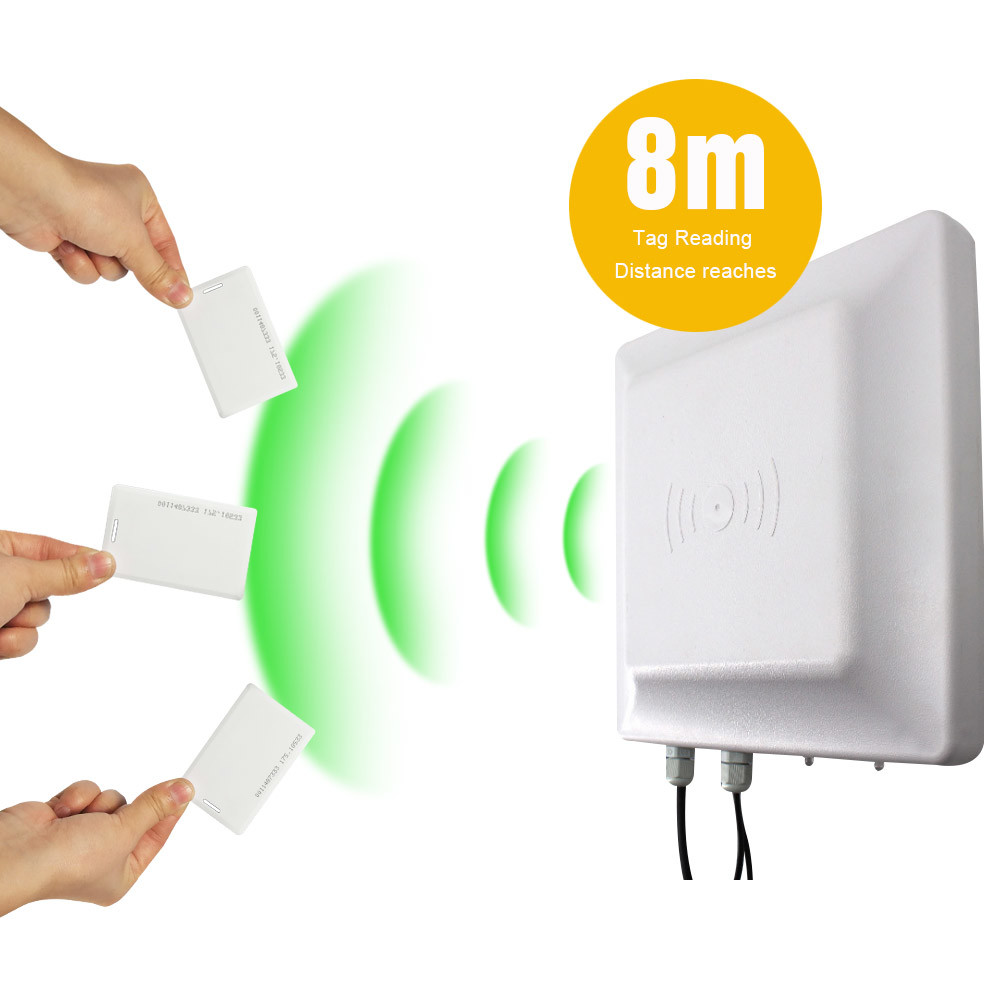

Reading range
0-5 m
Status indicators
buzzer
Antenna
7dbi circular antenna
Power supply
DC 9V
Size
215mm×215mm×50mm
Dimension
86*86*8mm
Weight
0.8 Kg
Operation Temp.
-20℃~+70℃



Built In UHF Integrated Antenna 6~10m 868mhz Long Range UHF RFID Reader 0











Facial Recognition Access Control System FAQ:



Q: 1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q: 2. What is the lead time?
A: Sample needs 1-3 days, mass production time needs 10-25 days for order less than 5000 pcs. Time is negotiable.

Q: 3. Do you have any MOQ limit?
A: No. 1pc is our MOQ.

Q: 4. How do you ship the goods and how long does it take arrive?
A: Sample order, we usually suggest the shipping by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. To bulk order air
or sea shipping is suggested.

Q: 5. What is the warranty for the products?
A: Yes, we offer 1 year warranty for the products.

Q: 6. How is your after-selling service?
A: We have after-sales technical team, provide 24 hours online technical support.

Q: 7. Do you supply OEM service?
A: Yes, We support OEM like logo printing or box customization on quantity of hundreds.


Should you have any inquiry, feel free to contact us



Facial Recognition Access Control System Warranty

Timmy warranties all the hardware products to be free from manufacturing defects. It also warranty this hardware product against defects in materials and workmanship that result in a material deviation from the applicable published Timmy technical specifications or customized specifications for that particular client.
