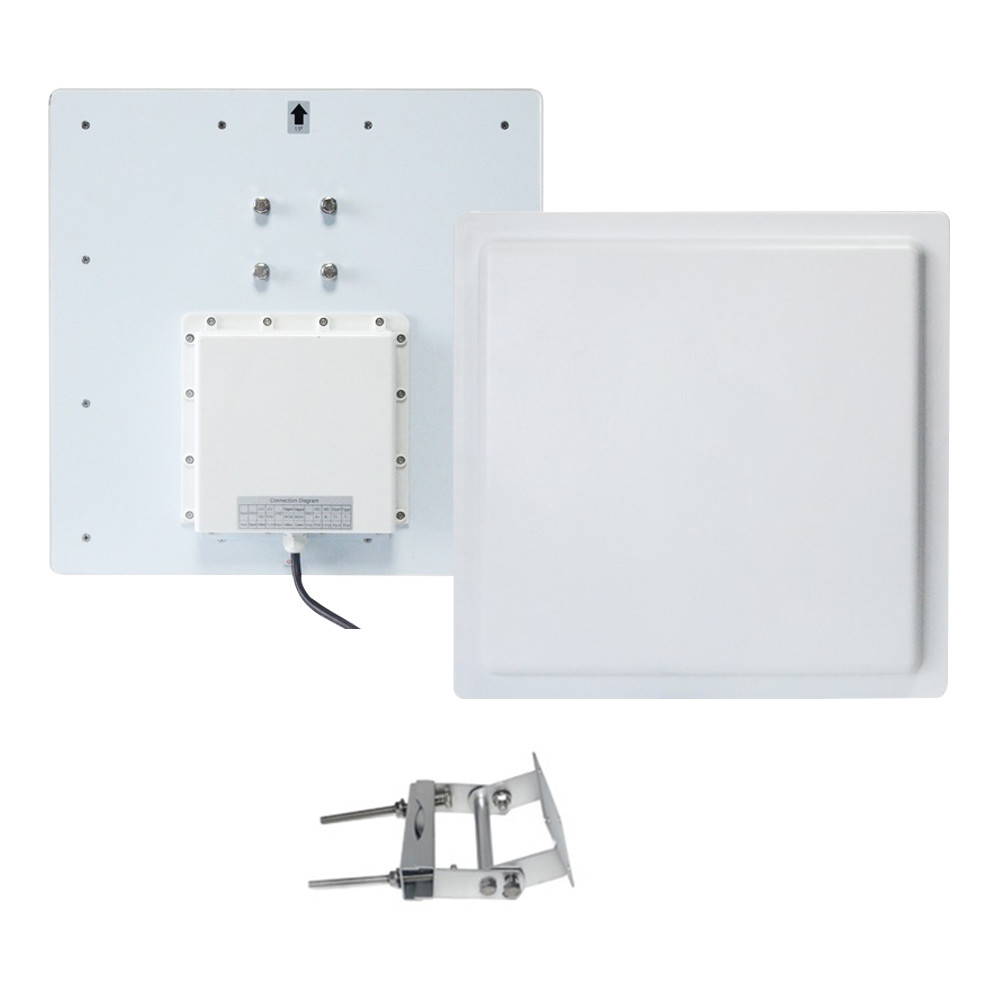

868MHz Integrated RFID Card Access Control System Anti Interference

868MHz Integrated RFID Card Access Control System Anti Interference

  • High Light

    Integrated RFID Card Access Control System


    868MHz RFID Card Access Control


    868MHz rfid card reader

  • Sipport Portocols
    ISO18000-6B,ISO18000-6C(EPC GEN2)
  • Working Frequency
    ISM 902~928MHz And ISM 865~868MHz,Other Frequency Standards (customized)
  • Operation Mode
    Fixed Frequency Or Software Programmable
  • RF Power
    0~30dBm,Software Programmable
  • Reading Range
    20-35 M(High Power 0~8m)
  • Antenna
    10dbi Circular Antenna
  • Power Supply
  • Size
  • Weight
    2.55 Kg(Package:4.65kg)
  • Operation Temperature
  • Place of Origin
  • Brand Name
  • Certification
  • Model Number
  • Minimum Order Quantity
    1pcs (sample)
  • Price
  • Packaging Details
    Packed in carton with sponge
  • Delivery Time
    Sample order 2~3 workdays; Bulk order 6~12 workdays
  • Payment Terms
    T/T, ,PayPal
  • Supply Ability
    3000pcs per week

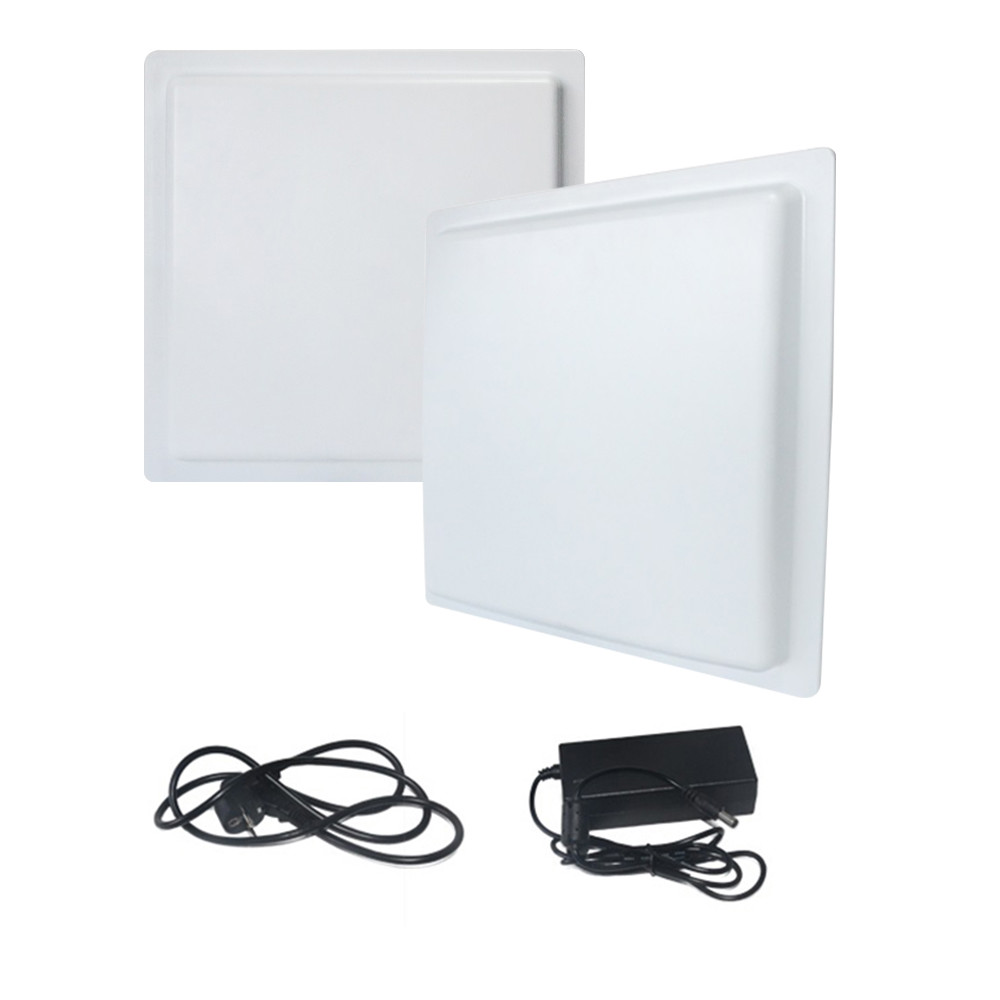

868MHz Integrated RFID Card Access Control System Anti Interference

868MHz Integrated RFID Card Access Control System Anti Interference

15~20 Meters Long Range Integrated RFID Card Access Control UHF Reader


RFID Card Access Control Features

1. Support ISO18000-6B and EPC Class1 GEN2 international standards;

2. Integrated structure design, beautiful appearance, suitable for outdoor environment;

3. Integrate high-performance linear polarized antennas, Recognize the long range distance stably;

4. Supports tag echo signal detection, tag data filtering, clock stamping, and input and output functions;

5. Recognition speed is fast, and the identification of single label can reach 140 times/second;

6. Adopt frequency hopping working mode, strong anti-interference ability and high recognition sensitivity;

7. Support sp) development in multiple languages, such as VC, VB, C, etc.



RFID Card Access Control Specification

Model Number TU-820
Supported protocols ISO18000-6B,ISO18000-6C(EPC GEN2)
working frequency ISM 902928MHz and ISM 865868MHz,Other frequency standards (customized)
Operation mode Fixed Frequency or Software Programmable
RF power 0~30dBm,Software Programmable
Reading speed Single card average reading is 64bits, less than 6ms, Software Programmable
Work mode reading Active and reading passive, Software Programmable
Communication Ports N:Wiegand26/34/98, RS485,RS232 ,USB E:Wiegand26/34/98, RS232,TCP ,USB
Input interface 1 way trigger input

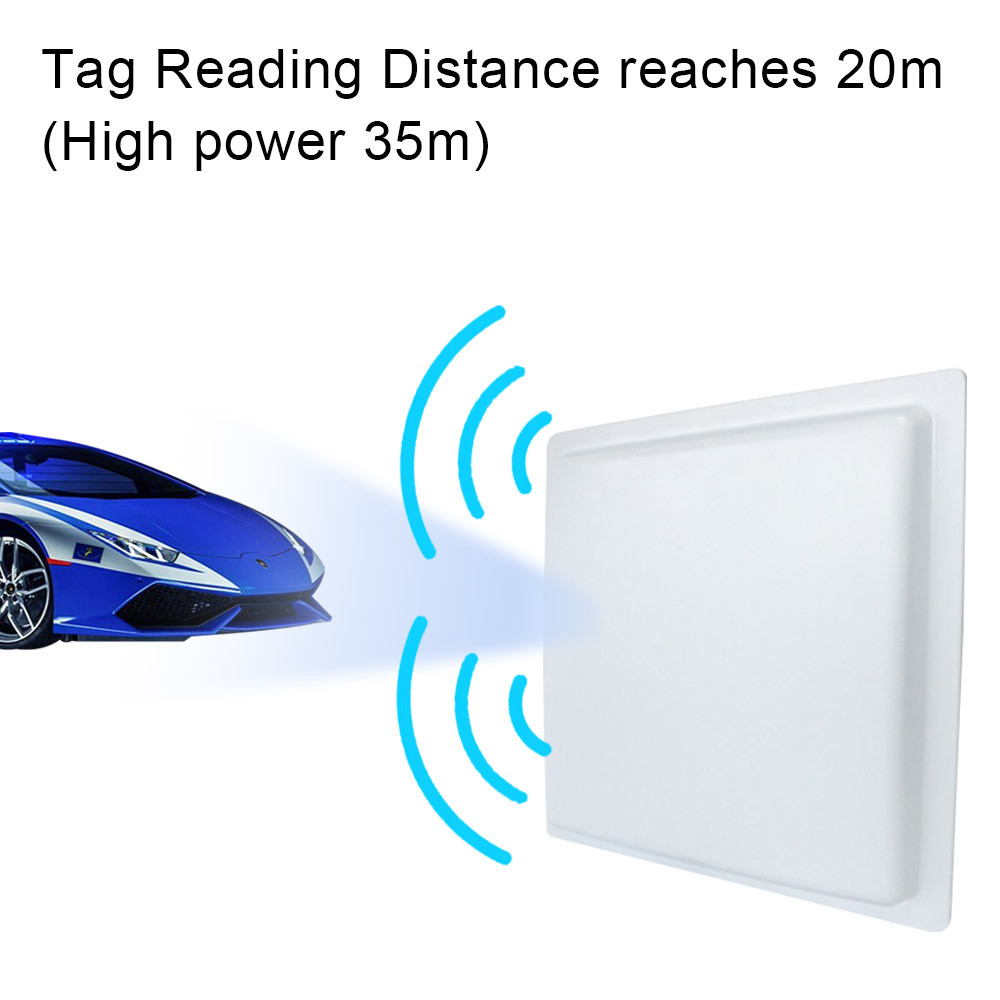

Reading range >20m (High power 35m)
Status indicators buzzer
Antenna 10dbi circular antenna
Power supply DC9V
Size 445mm×445mm×35mm
Weight 2.55 Kg(Package:4.65kg)
Operation Temp -20~+70


RFID Card Access Control Introduction

TU-805 supports online upgrades, has a rich communication interface, and can be customized to the needs of users.
868MHz Integrated RFID Card Access Control System Anti Interference 0

RFID Card Access Control FAQ?


Q1: Are you a factory or a trade company?

Reply :We are a factory located in Shenzhen, China, welcome to visit our factory at any time.


Q2: How many days can I get the products if I placed purchase order?

Reply : In general, about 1-3 working days for Sample and ready stock; 15 working days for production order after receving order deposit.


Q3: Which payment can be accepted?

Reply: T/T, Paypal, and L/C etc.


Q4: When did you start?

Reply : We have started our factory from year 2000, and we have experience of producing and developing Biometric attendance and access control terminals for more than 15 years. All of our engineers are professors in this area.


Q5: Can I get some samples?

Reply: We are honored to offer you samples, you can send E-mail to us or contact us to require samples. It's convenient for you, so please do not hesitate to contact us if you need a sample.


Q6: Can I print my Logo?

Reply:No problem, Logo printed is free for order of more than 100pcs. OEM is acceptable.


Q7: How does your factory do regarding QC?

Reply:Quality is priority, we are always pay more attention on quality controlling from the very beginning to the very end. What's more, our company got CE, FCC, ROSH, China policy system certificates of all products.


Any Interests, please contact us freely.
