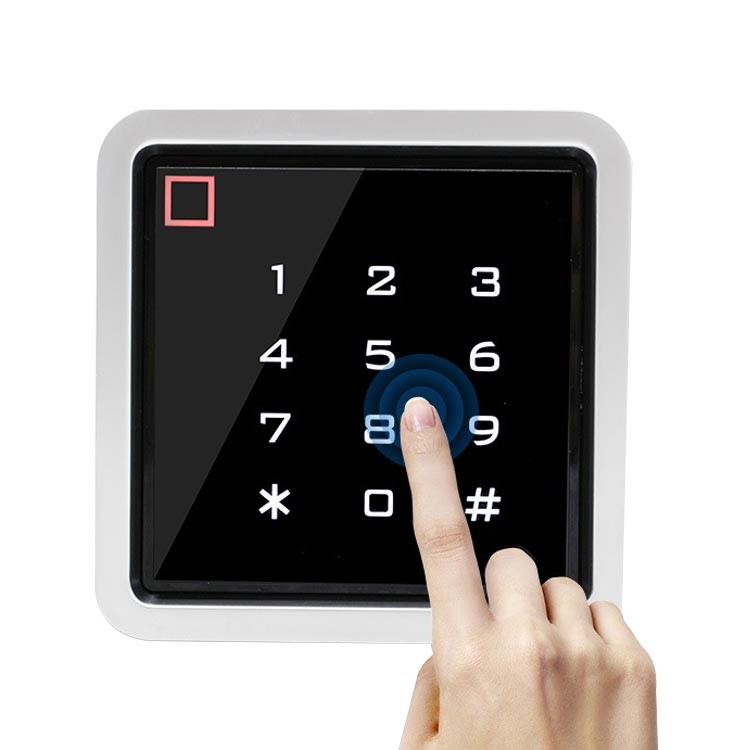

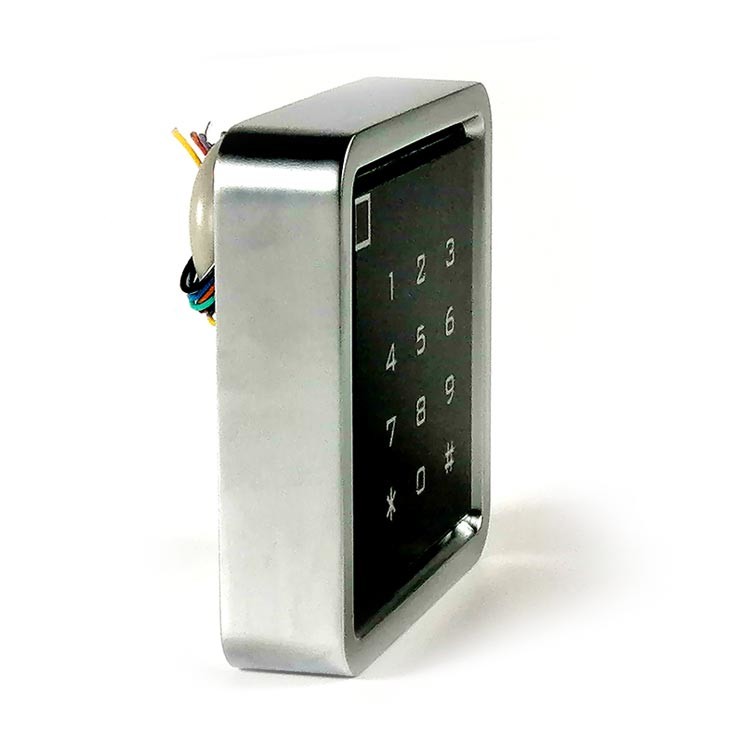

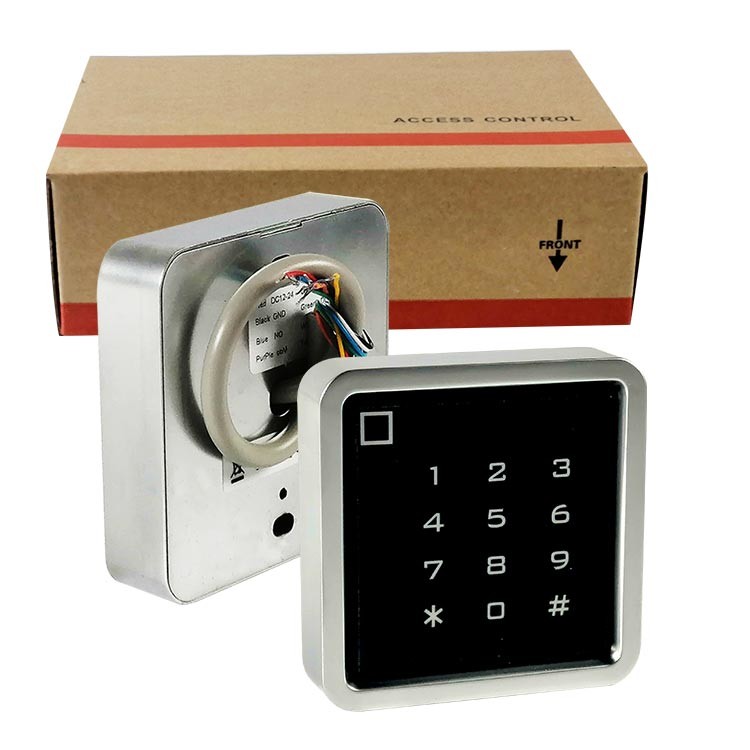

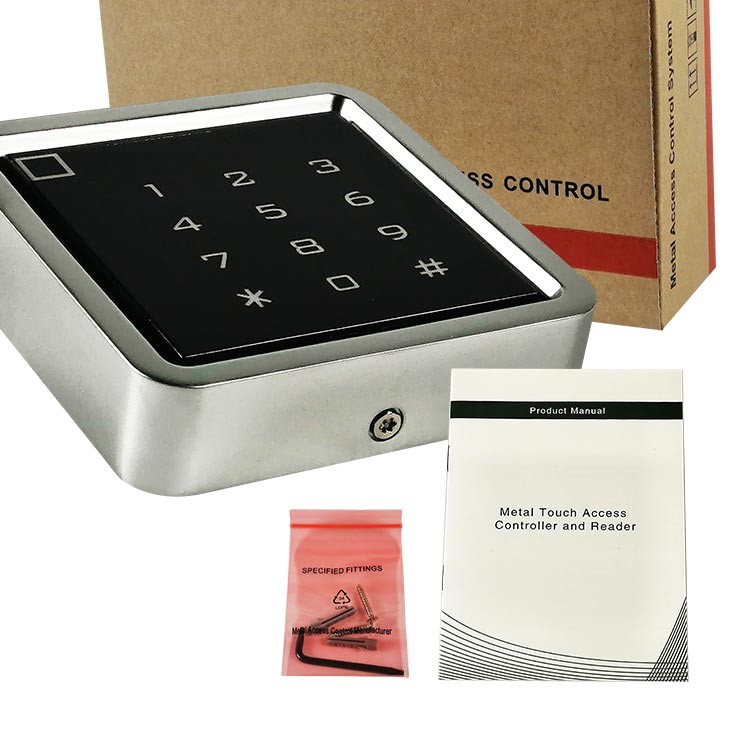

IP68 RFID Card Access Control
IP68 Waterproof Wiegand Standalone RFID Card Access Control Contactless Door Access Control
RFID Card Access Control Features
1. It is IP68 waterproof for both indoor and outdoor use
2. It is with interface to connect with magnetic lock, exit button, power supply box, door bell, alarm
3. Multi verification mode: RFID card, password
4. Backlight touch keypad, fast response
5. Metal case, anti-vandel
6. Wiegand 26 input&output
7. 2000 cards/code in total
RFID Card Access Control Specification
Product Name | TDS RFID Card Access Control |
Work Mode | Offline |
Card/code Capacity | 2000 |
Card Type | Standard with ID card, IC card is optional |
Alarm output load | ≤2A |
Working voltage | DC 12V~24V |
Wiegand | in & out |
Reading range | 2~5cm |
Operation Temperature | -45℃~60℃ |
Operation Humidity | 10%~90% |
Lock Output Load | ≤3A |
Access Control | interface to connect with magnetic lock, exit button, power supply box |
Door opening time | 0~99s (adjustable) |
Short circuit protect | ≤100um |
Product Size | 86*86*20mm |
Warranty Period | 1 year |
RFID Card Access Control Introduction
TDS10 RFID Card Access Control is IP68 waterproof for both indoor and outdoor use. It is professional access control with interface to connect with magnetic lock, exit button, power supply box etc. It is standalone use, no need software, very easy operation.
RFID Card Access Control Application
TDS10 RFID Card Access Control is widely used at entrance of school, office, government etc for door access control. We also support OEM/ODM, for example, print your logo on machine, make your logo as boot screen/standby screen, and customized package box.
RFID Card Access Control FAQ
Q1: Are you real manufacturer?
Yes, our factory is based in Shenzhen China and we've been in this industry for 20 years
Q2: How is your after-sales service?
We have after-sales technical team, provide 24 hours online technical support.
Q3: Do you supply OEM service?
Yes, we can customize your logo on machine/boot screen/standby screen/package box. Other customization is negotiable.
Q4: What is your Warranty?
1 year normally.
Our products are sold all over the world, you can rest assured.
