TIMMY Wifi Face Recognition Biometric Device 4.3 Inch IPS Touch Screen

TIMMY Wifi Face Recognition Biometric Device 4.3 Inch IPS Touch Screen

  • High Light

    Wifi Face Recognition Biometric Device

    ,

    IPS Screen Face Recognition Biometric Device

    ,

    4.3 Inch face recognition time attendance machine

  • Screen
    4.3-inch IPS Touch Screen
  • Resolution
    272*480
  • Identification Mode
    1:N, 1:1
  • Identification Speed
    ≦0.2s
  • Face / ID Capacity
    5,000
  • Record Capacity
    500,000
  • Special Features
    Motion Detection, Touch Screen, Built-in Camera, Night Vision (
  • Detection Range
    0.5-3m
  • Screen Resolution
    200WP Dual Infrared, Dual HD Camera
  • Fire Input
    1 Set
  • Relay Output
    1 Set
  • Wiegand
    1 Set Wiegand 26/34 Input Output
  • External Alarm
    Support
  • Power Supply
    DC 12V 1A
  • Communication
    TCP/IP,Wiegand Out
  • Place of Origin
    China
  • Brand Name
    TIMMY
  • Certification
    RoHS, CE, FCC
  • Model Number
    TM-AI06F
  • Minimum Order Quantity
    1pcs (sample)
  • Price
    Negotiable
  • Packaging Details
    Export packing: 49*40*30 cm 20 units/carton G.W. 10 Kg
  • Delivery Time
    Sample order 2~3 working days; Bulk order 6~12 working days
  • Payment Terms
    T/T, , Payal
  • Supply Ability
    2000 pcs per week

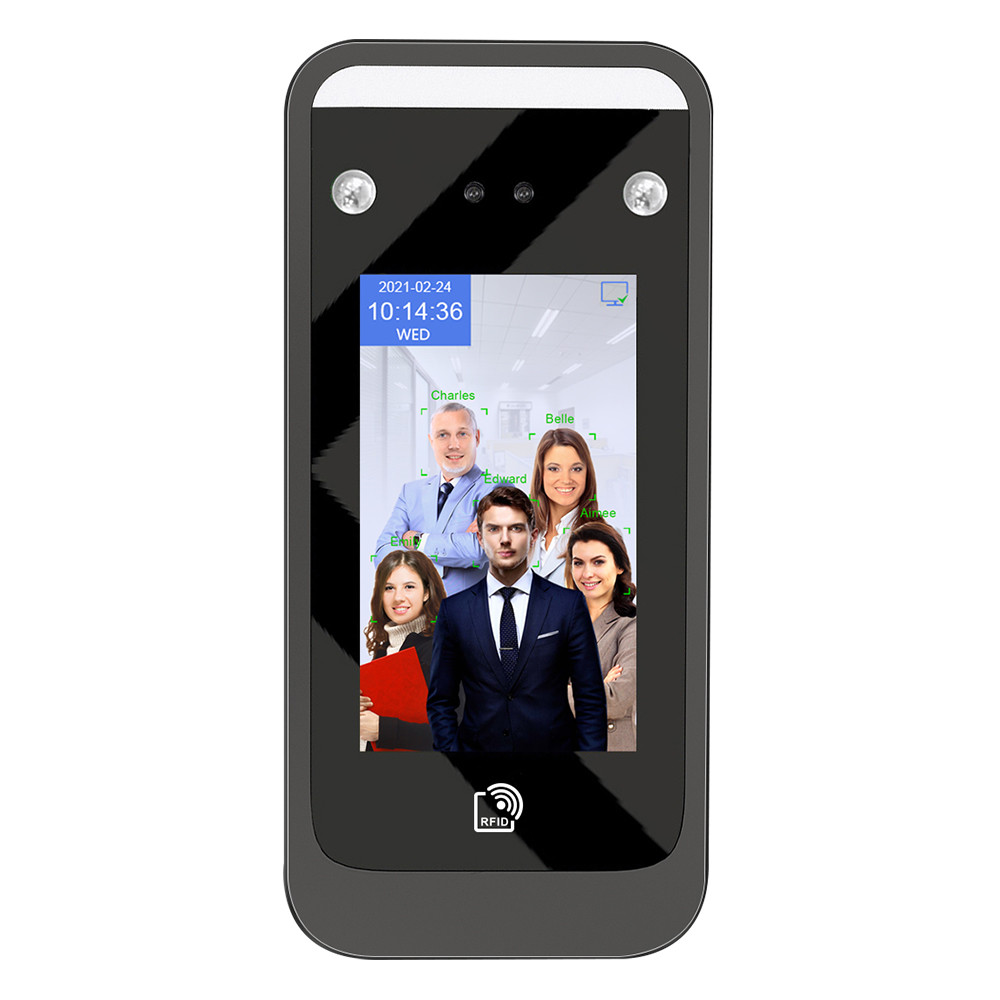

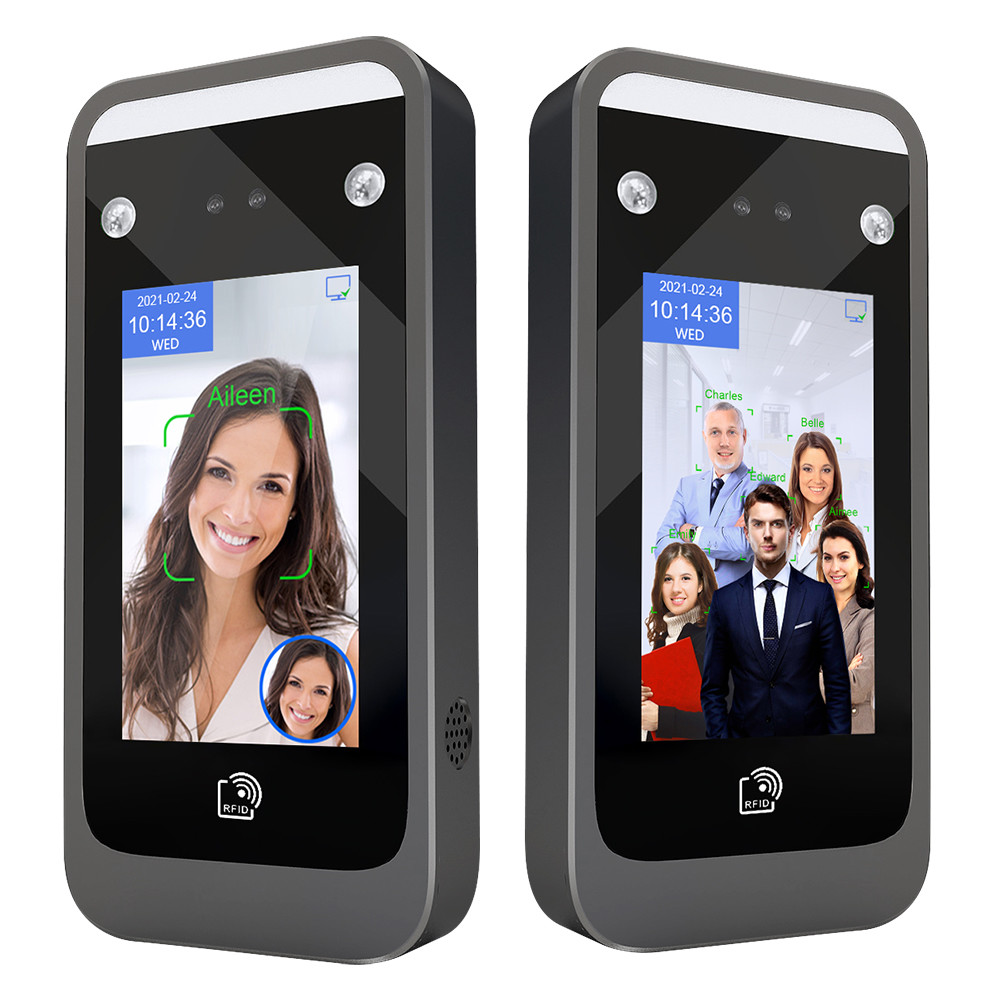

TIMMY Wifi Face Recognition Biometric Device 4.3 Inch IPS Touch Screen

TIMMY Wifi Face Recognition Camera Biometric Device Fingerprint Time Clock Time Recording Access Control

Fingerprint Time Clock Time Recording Access Control

TM-AI06F is a face recognition time attendance and access control machine,it support face recognition, RFID card, password, 4.3-inch touch screen, TCP/IP and USB, wifi is optional. Function is high but price is economy.



Face Recognition Machines Features

Specifications
Product name
Visible Light QR Code Smart Access Control Face Recognition Time Attendance System
Screen
4.3 Inch, HD 1280*720, Capacitive Touch Screen
Keypad
Touch keypad
Operation system
LINUX 3.10
CPU,NPU
1.2G Dual-Core ARM Cortex-A7, 600G (0.6T)
RAM
256MB DDR3
ROM
eMMC Flash 4GB
Binocular camera
200W Colorful WDR+200W Infrared live camera
Logs capacity
500000
Face Registration
Local operation: Enroll face with machine, import user photo with U disk
Software operation: Import user photo to software, capture user photo with camera
Verification
Dynamic face recognition, password, ID/IC card optional
Face capacity
5000 (20000 optional)
Card Capacity
5000 (20000 optional), ID Card Standard, IC Card Optional
Password Capacity
5000 (20000 optional)
Face Recognition Accuracy
99.70%
Recognition Speed
≤0.2s, support single user/multi user(at most 5 users) recognition at same time
Recognition Distance
0.5~2.5 meters (0.5~1.5 meters with live face recognition on)
Prevent Photo
Dual camera anti-counterfeiting, prevent recognition with photo/video
Principle of Identification
Face algorithm technology of multi-task cascaded convolutional neural network based on

video stream for dynamic face detection, tracking and recognition
WDR
Wide dynamic range, support accurate face recognition under Strong light, dark light and backlight
USB

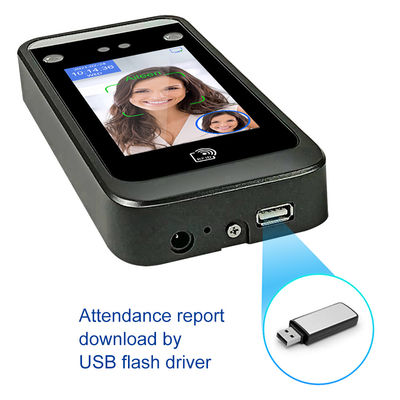

USB2.0x1,Support U disk import/export data
Power supply
DC12V interface x 1
Speaker Interface
Reserved for extended Speaker Interface
Network Communication
TCP/IP, Support C/S LAN communication, Wifi (optional)
Free Attendance sofware
Support exporting excel attendance report with U disk
Shift
Support shift setting and importing shift schedule with U disk
Management Software
Support PC software to manage data through network connection with equipment
Access Control Function
Door unclosed alarm, forced door opening alarm, alarm linkage and output, one set of door opening signals,
one set of alarm signals, time permission control, connect external access control reader,
Wiegand 26/34 output
Environmental adaptability
Working temperature: -15C~+45°C (storage temperature -40C~+65°C),
Working humidity: 20% ~90% (storage humidity 20%~90+2%),
Dark enviroment: LEDSoft light automatic fll light (Automatic control according to ambient light)
Ambient light adaptation range: 0-50000Lux
Muti language
English, Spanish, Arabic, Thai, Farsi, Portuguese, French, Italian, Japanese, Korean, etc
Broadcase and ring
Support display name, voice broadcase name, builtin bell ring
Automatic fill light
Support infrared fill light, the white fll light automatically lights up when face is captured in dark light
Working Current
stand-by current: 310mA , Working current: 520mA
QR Code Scanner
Support
Working Voltage
DC12V
Installation Way
Standard: Wall mount, desktop stand; Optional: bracket for turnstile, floor stand
Device Dimension
133x155x25.5mm
Color box dimension
214x214x94mm
Carton dimension
Size: 480x438x229mm,12Kg/carton, 10pcs /carton

TIMMY Wifi Face Recognition Biometric Device 4.3 Inch IPS Touch Screen 0



Fingerprint Time Clock Time Recording Access Control FAQ

Q: 1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q: 2. What is the lead time?
A: Sample needs 1-3 days, mass production time needs 10-25 days for order less than 5000 pcs. Time is negotiable.

Q: 3. Do you have any MOQ limit?
A: No. 1pc is our MOQ.

Q: 4. How do you ship the goods and how long does it take arrive?
A: Sample order, we usually suggest the shipping by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. To bulk order air or sea shipping is suggested.

Q: 5. What is the warranty for the products?
A: Yes, we offer 1 year warranty for the products.

Q: 6. How is your after-selling service?
A: We have after-sales technical team, provide 24 hours online technical support.

Q: 7. Do you supply OEM service?
A: Yes, We support OEM like logo printing or box customization on quantity of hundreds.




Should you have any inquiry, feel free to contact us





Biometric Device Time Attendance And Door Access Control Warranty



Timmy warranties all the hardware products and software to be free from manufacturing defects. It also warranty this hardware product against defects in materials and workmanship that result in a material deviation from the applicable published Timmy technical specifications or customized specifications for that particular client.
