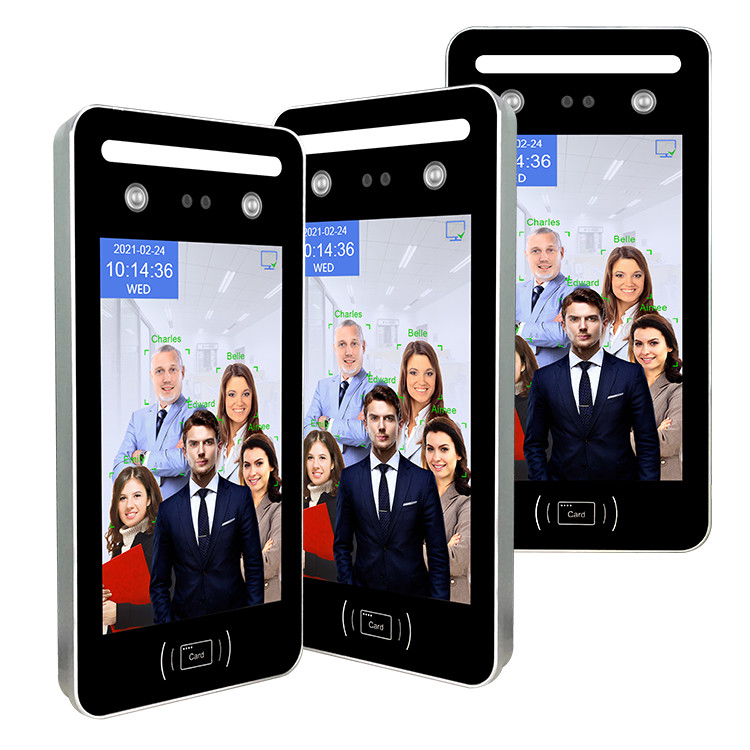

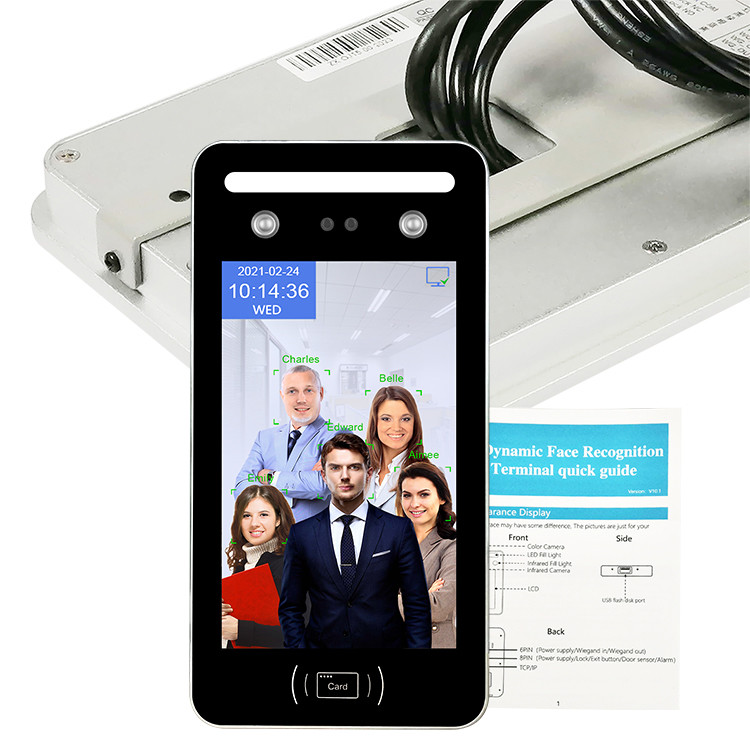

WDR Cloud NPU 1.2T Facial Recognition Access Control System Time Attendance Machine

WDR Cloud NPU 1.2T Facial Recognition Access Control System Time Attendance Machine

  • High Light

    1.2T Facial Recognition Access Control System


    8 inch Facial Recognition Access Control System


    1.2T Facial Recognition Time Attendance Machine

  • CPU
    1.2G Dual-Core ARM Cortex-A7
  • NPU
  • Camera
    SONY 200W Pixel Hd Color WDR Camera, 200W Infrared Camera
  • Display
    8" Capacitive LCD IPS Touch Screen
  • Identification Style
    Visible Light Facial Recognition, PIN, Face & PIN Combination ,ID/IC
  • Identification Style:Visible Light Facial Recognition, PIN, Face & PIN Combination ,ID/IC Identifica
    1:1, 1:N
  • User Capacity
  • Record Capacity
  • Operating System
  • Face Recognition Time
  • Place of Origin
    Shenzhen, Guangdong
  • Brand Name
  • Certification
    CE FCC RoHs
  • Model Number
  • Minimum Order Quantity
    1pcs (sample)
  • Price
  • Packaging Details
    12pcs/ctn 630*430*548mm /ctn
  • Delivery Time
    5-10 work days
  • Payment Terms
    D/A, D/P, T/T, ,Paypal
  • Supply Ability
    10000pcs Per month

WDR Cloud NPU 1.2T Facial Recognition Access Control System Time Attendance Machine

WDR Cloud NPU 1.2T Facial Recognition Access Control System Time Attendance Machine

AI Visible Light WDR Cloud NPU 1.2T Facial Recognition Access Control System Time Attendance Machine


* Facial Recognition Access Control System Application scenarios:

TM-AI08 is widely used in: government agencies, intelligent building buildings, office buildings, high-end real estate communities, colleges and universities, enterprises and institutions Places, industrial and mining enterprises and other places are used as access control and attendance equipment.


* Facial Recognition Access Control System Product features:


  1.  Exquisite appearance, aluminum alloy material
  2.  CPU 1.2G Dual-Core ARM Cortex-A, NPU 1.2T computing power, AI CPU
  3.  The real 2 million binocular camera, 2 million Sony color camera, wide dynamic camera, can be identified in strong light, dark light,   backlight optimization
  4.  Support 50,000 faces, 50,000 passwords, and 50,000 cards
  5.  Support for simultaneous recognition of up to 5 people, face tracking and face capture
  6.  The face recognition speed is fast, and the face recognition is less than 0.2S
  7.  Support live body detection, dynamic binocular anti-counterfeiting, and prevent all kinds of photos and videos from deceiving on   various carriers
  8.  Support face, card, password verification, and face+card combination verification
  9.  8-inch IPS touch screen, screen resolution 800*1280
  10.  Support TTS: Chinese and English voice report name
  11.  Supports 20 national languages, including Chinese and English, and voices. Support Chinese, English, Korean, Persian T9 input   method
  12.  Support offline scheduling editing, U disk download report
  13.  Professional access control function: time period to open the door, group combination to open the door, user effective date, anti-passback, alarm mechanism: illegal door opening alarm,Door open prompt
  14.  Support desktop software, cloud platform
  15.  Support night LED supplement light and infrared supplement light
  16.  Support QR code recognition, cooperate with cloud platform to realize visitor function

 WDR Cloud NPU 1.2T Facial Recognition Access Control System Time Attendance Machine 0


  * Facial Recognition Access Control System Specification :



Product name Al Dynamic Face Recognition Time Attendance Access Control Terminal
Screen 8.0 Inch. HD 800*1280, Capacitive Touch Screen
Keypad Touch keypad
Operation system LINUX 3.10
CPU.NPU 1.2G Dual-Core ARM Cortex-A7,1200G (1.2T)
Binocular camera 200W Colorful WDR+200W Infrared live camera
Logs capacity 500000
Face Registration Local operation: Enroll face with machine, import user photo with U disk
Software operation: Import user photo to software, capture user photo with camera
Verification Dynamic face recognition, password, ID/IC card optional
Face capacity 20000
Card Capacrty 20000. ID and IC Card
Password Capacity 20000
Face Recognition Accuracy 99.70%
Recognition Speed s0.2s, support single user/multi user(at most 5 users) recognition at same time
Recognition Distance 0 5-2.5 meters (0.5*1.5 meters with live face recognition on)
Prevent Photo Dual camera anli-counlerfeiting, prevent recognition with pholo/video
Principle of Identification Face algorithm technology of multi-task cascaded convolutional neural network based on video stream for dynamic face detection, tracking and recognition
WDR Wide dynamic range, support accurate face recognition under Strong light, dark light and backlight
USB USB2.0 x 1 f Support U disk import/export data
Power supply DC 12V interface x 1
Speaker Interface Reserved for extended Speaker Interface
Network Communication TCP/IP Support C/S LAN communication. Wifi (optional)
Free Attendance software Support exporting excel attendance report with U disk
Shift Support shift setting and importing shift schedule with U disk
Management Software Support PC software to manage data through network connection with equipment
Access Control Function Door unclosed alarm, forced door opening alarm, alarm linkage and output, one set of door opening signals, one set of alarm signals, time permission control, connect external access control reader, Wiegand 26/34 Output&lnput
Environmental adaptability Working temperature: -15°C~+45°C (storage temperature -40°C~+65°C),
Working humidrty: 20%〜90% (storage humidity 20%~90±2%).
Dark enviroment: LED Soft light automatic fill light (Automatic control according to ambient light)
Ambient light adaptation range: 0-50000Lux
Multi language English. Spanish, Arabic, Thai. Farsi. Portuguese, French, Italian, Japanese, Korean, etc
Broadcase and ring Support display name, voice broadcase name builtin bell ring
Automatic fill light Support infrared fill light, the white fill light automatically lights up when face is captured in dark light
Working Current stand-by current: 310mA , Working current: 520mA
QR Code Scanner Support
Working Voltage DC 12V
Installation Way Standard: Wall mount, desktop stand; Optional: bracket for turnstile, floor stand
Machine Dimension 265x132 6x20mm
Carton dimension Size: 480x438x229mm, 12Kg/cartonr 10units/carton
