Specifications
|
Product name
|
Visible Light QR Code Smart Access Control Face Recognition Time Attendance System
|
Screen
|
4.3 Inch, HD 1280*720, Capacitive Touch Screen
|
Keypad
|
Touch keypad
|
Operation system
|
LINUX 3.10
|
CPU,NPU
|
1.2G Dual-Core ARM Cortex-A7, 600G (0.6T)
|
RAM
|
256MB DDR3
|
ROM
|
eMMC Flash 4GB
|
Binocular camera
|
200W Colorful WDR+200W Infrared live camera
|
Logs capacity
|
500000
|
Face Registration
|
Local operation: Enroll face with machine, import user photo with U disk
|
Software operation: Import user photo to software, capture user photo with camera
|
Verification
|
Dynamic face recognition, password, ID/IC card optional
|
Face capacity
|
5000 (20000 optional)
|
Card Capacity
|
5000 (20000 optional), ID Card Standard, IC Card Optional
|
Password Capacity
|
5000 (20000 optional)
|
Face Recognition Accuracy
|
99.70%
|
Recognition Speed
|
≤0.2s, support single user/multi user(at most 5 users) recognition at same time
|
Recognition Distance
|
0.5~2.5 meters (0.5~1.5 meters with live face recognition on)
|
Prevent Photo
|
Dual camera anti-counterfeiting, prevent recognition with photo/video
|
Principle of Identification
|
Face algorithm technology of multi-task cascaded convolutional neural network based on
|
|
video stream for dynamic face detection, tracking and recognition
|
WDR
|
Wide dynamic range, support accurate face recognition under Strong light, dark light and backlight
|
USB
|
USB2.0x1,Support U disk import/export data
|
Power supply
|
DC12V interface x 1
|
Speaker Interface
|
Reserved for extended Speaker Interface
|
Network Communication
|
TCP/IP, Support C/S LAN communication, Wifi (optional)
|
Free Attendance sofware
|
Support exporting excel attendance report with U disk
|
Shift
|
Support shift setting and importing shift schedule with U disk
|
Management Software
|
Support PC software to manage data through network connection with equipment
|
Access Control Function
|
Door unclosed alarm, forced door opening alarm, alarm linkage and output, one set of door opening signals,
|
one set of alarm signals, time permission control, connect external access control reader,
|
Wiegand 26/34 output
|
Environmental adaptability
|
Working temperature: -15C~+45°C (storage temperature -40C~+65°C),
|
Working humidity: 20% ~90% (storage humidity 20%~90+2%),
|
Dark enviroment: LEDSoft light automatic fll light (Automatic control according to ambient light)
|
Ambient light adaptation range: 0-50000Lux
|
Muti language
|
English, Spanish, Arabic, Thai, Farsi, Portuguese, French, Italian, Japanese, Korean, etc
|
Broadcase and ring
|
Support display name, voice broadcase name, builtin bell ring
|
Automatic fill light
|
Support infrared fill light, the white fll light automatically lights up when face is captured in dark light
|
Working Current
|
stand-by current: 310mA , Working current: 520mA
|
QR Code Scanner
|
Support
|
Working Voltage
|
DC12V
|
Installation Way
|
Standard: Wall mount, desktop stand; Optional: bracket for turnstile, floor stand
|

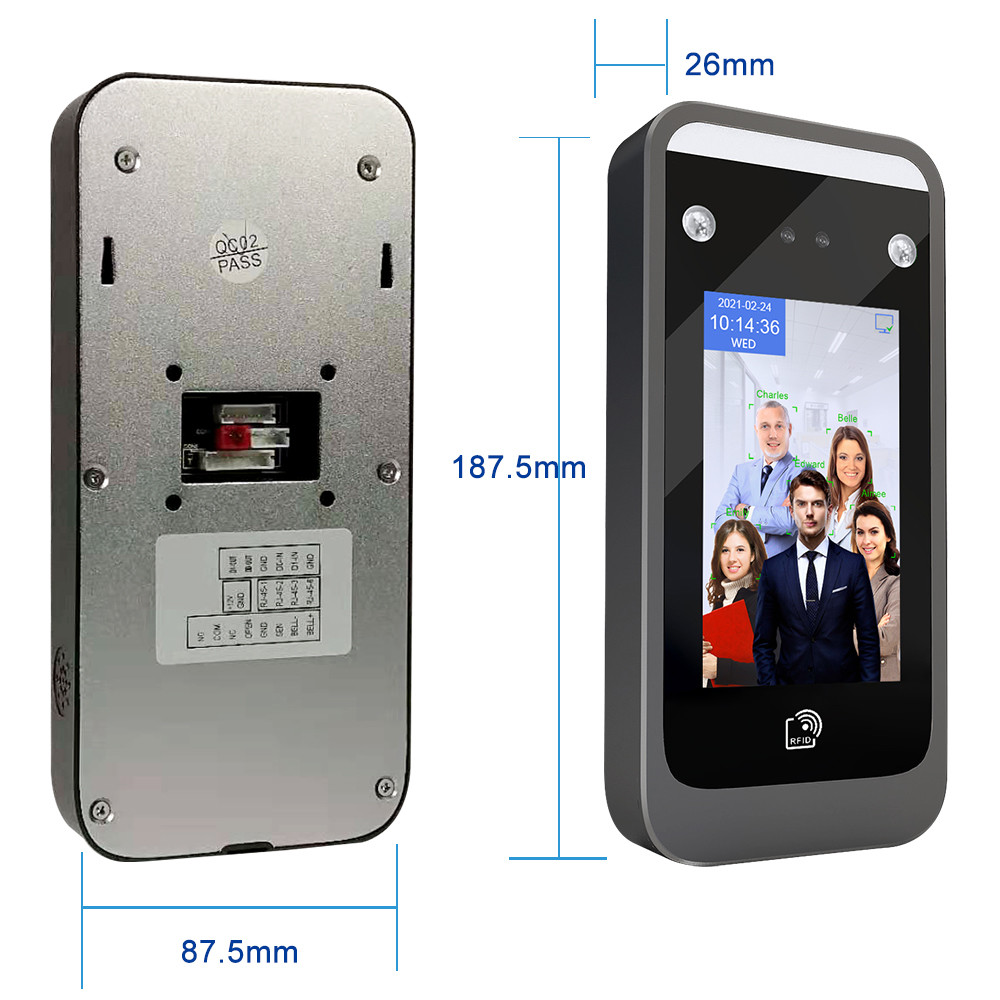

Device Dimension
|
133x155x25.5mm
|
Color box dimension
|
214x214x94mm
|
Carton dimension
|
Size: 480x438x229mm,12Kg/carton, 10pcs /carton
|
