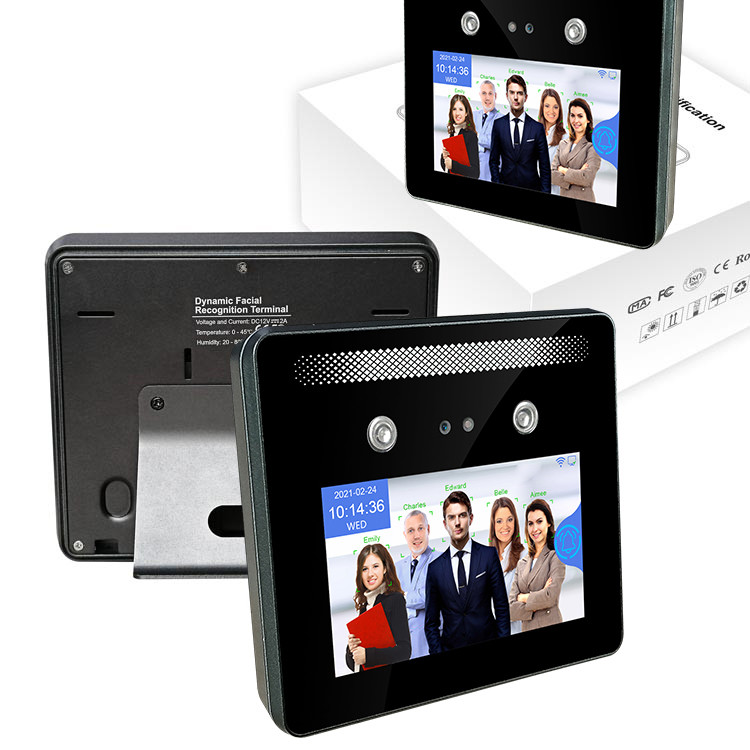

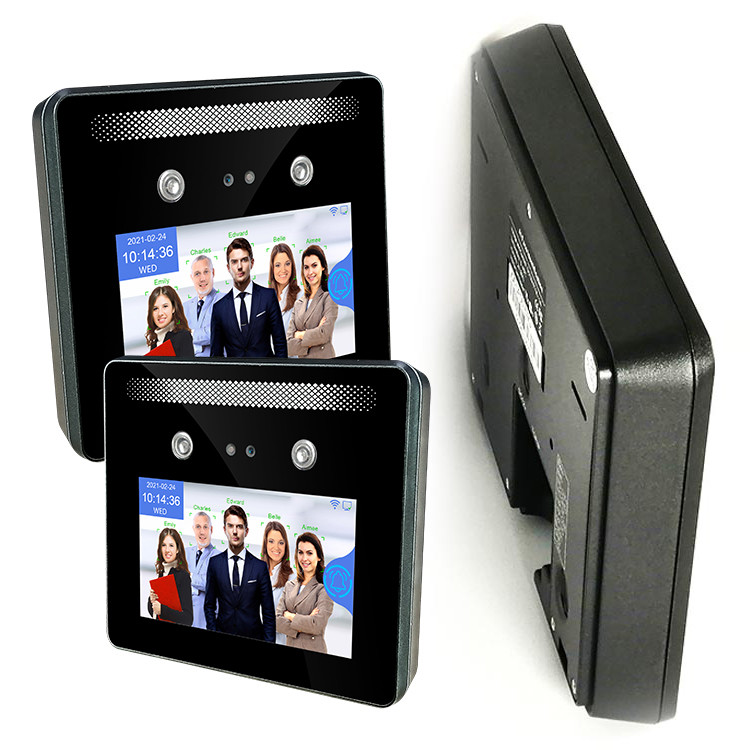

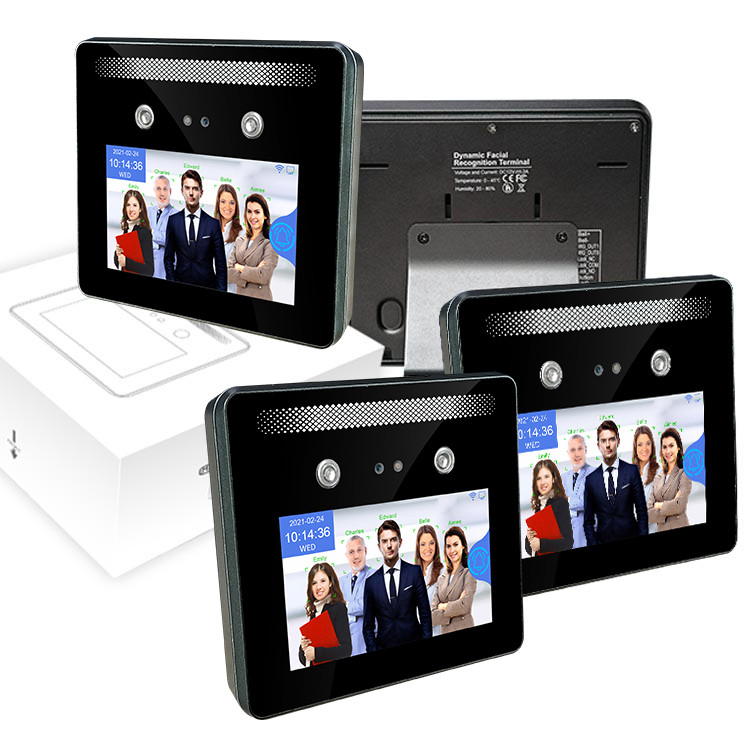

Face Recognition Biometric Time Attendance System Long Range Dynamic

Face Recognition Biometric Time Attendance System Long Range Dynamic

  • High Light

    Face Recognition Biometric Time Attendance System


    5 inch Biometric Time Attendance System


    5 inch Face Recognition Attendance System

  • Identification Mode
    1:N, 1:1
  • Screen
    5-inch IPS Touch Screen
  • Identification Speed
  • Face / ID Capacity
  • Record Capacity
  • Resolution
    1280 X 720
  • Special Features
    Motion Detection, Built-in Camera, Touch Screen, Night Vision (
  • Detection Range
  • Screen Resolution
    200W Pixel Dual Infrared, Dual HD Camera
  • Wiegand
    1 Set Wiegand Out
  • Power Supply
    DC 12V 1A
  • Place of Origin
  • Brand Name
  • Certification
    RoHS, CE, FCC
  • Model Number
  • Minimum Order Quantity
    1pcs (sample)
  • Price
  • Packaging Details
    Export packing: 10 units / Outer Box 575*435*235 mm G.W: 11.80 Kgs
  • Delivery Time
    Sample order 2~3 working days; Bulk order 6~12 working days
  • Payment Terms
    T/T, , Payal
  • Supply Ability
    1000 pcs per week

Face Recognition Biometric Time Attendance System Long Range Dynamic

Face Recognition Biometric Time Attendance System Long Range Dynamic


It is a professional access control and time attdendance model support 0.2s face recognition, Rfid card recognition, pass word, 5-inch touch HD screen, TCP/IP Port, USB and Wifi Function is optional.


Dynamic Face Recognition Machines Main Features:

  1. Display Screen: 5-inch IPS LCD Color touch screen, 1280 * 720 resolution. Multi- language adjustable. LINUX intelligent operating system, simple and convenient.
  2. Dual Camera: 200W pixel HD color camera and 210W infrared camera with IR night vision, can carry out quick identification in any environment. Recognition distance: 0.5-2.5 meters.
  3. Support multi person face recognition with 5 persons at same time (Single person or multi person recognition are selectable)
  4. Support WDR (wide dynamic range), with good performance. It can be detected under a strong light, dark light and back-light environment
  5. Support mask detection (Choose Yes/No in the menu)
  6. Support capture stranger's face if he appears in the camera
  7. Display user enrolled photo when verified face.
  8. Support set face recognition distance: close (around 0.8m), middle (around 1.5m), far (around 2~3m)
  9. Support lock screen mode function, the machine needs to be activated for face recognition.
  10. Support match in server.
  11. Support TTS (Text To Speech) prompt voice in English & Chinese name


Face recognition machines Specification


Product name

Long Range Dynamic Face Recognition Biometric Time Attendance System


5-Inch, HD 1280*720 solution, Capacitive Touch Screen


Touch keypad

Operation system

LINUX 3.15


1.2G Dual-Core ARM Cortex-A7, 600G (0.6T)


256MB DDR3


4GB eMMC Flash

Binocular camera

200W Colorful WDR+210W Infrared live camera

Logs capacity


Face Registration

Local operation: Enroll face with machine, import user photo with U disk

Software operation: Import user photo to software, capture user photo with camera


Dynamic face recognition, password, ID/IC card optional

Face capacity

5,000 (20,000/50,000 optional)

Card Capacity

5,000 (20,000/50,000 optional), ID Card Standard, IC Card Optional

Password Capacity

5,000 (20,000/50,000 optional)

Face Recognition Accuracy


Recognition Speed

≤0.2s, support single user/multi user(at most 5 users) recognition at same time

Recognition Distance

0.5~2.5 meters (0.5~1.5 meters with live face recognition on)

Prevent Photo

Dual camera anti-counterfeiting, prevent recognition with photo/video

Principle of Identification

Face algorithm technology of multi-task cascaded convolutional neural network based on



video stream for dynamic face detection, tracking and recognition


Wide dynamic range, support accurate face recognition under Strong light, dark light and backlight


USB2.0x1,Support U disk import/export data

Power supply

DC12V interface x 1

Speaker Interface

Reserved for extended Speaker Interface

Network Communication

TCP/IP, Support C/S LAN communication, Wifi (optional)

Free Attendance sofware

Support exporting excel attendance report with U disk


Support shift setting and importing shift schedule with U disk

Management Software

Support PC software to manage data through network connection with equipment

Access Control Function

Door unclosed alarm, forced door opening alarm, alarm linkage and output, one set of door opening signals,

one set of alarm signals, time permission control, connect external access control reader,

Wiegand 26/34 output

Environmental adaptability

Working temperature: -15C~+45°C (storage temperature -40C~+65°C),

Working humidity: 20% ~90% (storage humidity 20%~90+2%),

Dark enviroment: LEDSoft light automatic fll light (Automatic control according to ambient light)

Ambient light adaptation range: 0-50000Lux

Muti language

English, Spanish, Arabic, Thai, Farsi, Portuguese, French, Italian, Japanese, Korean, etc

Broadcase and ring

Support display name, voice broadcase name, builtin bell ring

Automatic fill light

Support infrared fill light, the white fll light automatically lights up when face is captured in dark light

Working Current

stand-by current: 310mA , Working current: 520mA

QR Code Scanner


Working Voltage


Installation Way

Standard: Wall mount, desktop stand; Optional: bracket for turnstile, floor stand

Device Dimension


Color box dimension


Carton dimension

Size: 480x438x229mm,12Kg/carton, 10pcs /carton

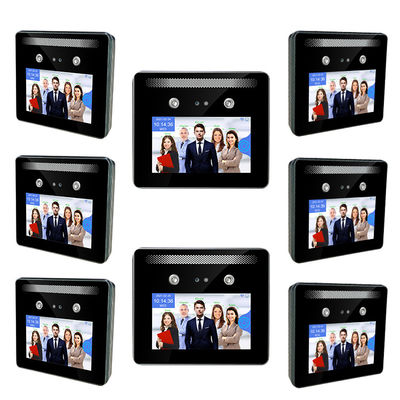

Face Recognition Biometric Time Attendance System Long Range Dynamic 0Face Recognition Biometric Time Attendance System Long Range Dynamic 1








Face recognition machines FAQ


Q: 1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q: 2. What is the lead time?
A: Sample needs 1-3 days, mass production time needs 10-25 days for order less than 5000 pcs. Time is negotiable.

Q: 3. Do you have any MOQ limit?
A: No. 1pc is our MOQ.

Q: 4. How do you ship the goods and how long does it take arrive?
A: Sample order, we usually suggest the shipping by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. To bulk order air or sea shipping is suggested.

Q: 5. What is the warranty for the products?
A: Yes, we offer 1 year warranty for the products.

Q: 6. How is your after-selling service?
A: We have after-sales technical team, provide 24 hours online technical support.

Q: 7. Do you supply OEM service?
A: Yes, We support OEM like logo printing or box customization on quantity of hundreds.



Should you have any inquiry, Please feel free to contact us



Face recognition machines Warranty


Timmy warrantees all the hardware products to be free from manufacturing defects. It also warrants this hardware product against defects in materials and workmanship that result in a material deviation from the applicable published Timmy technical specifications or customized specifications for that particular client.
