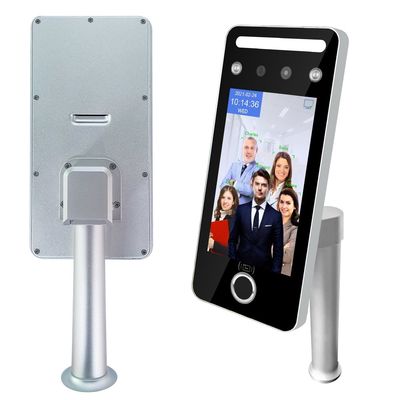

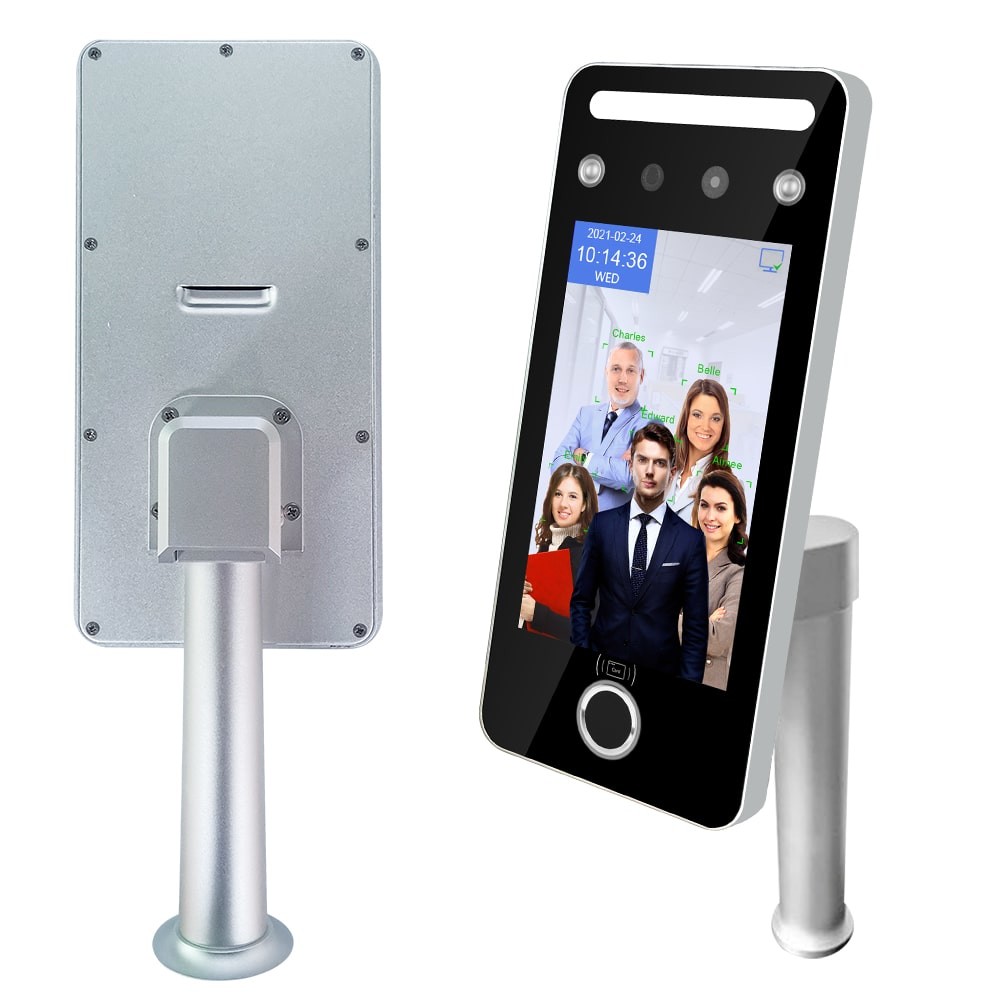

Biometric Facial Recognition Access Control System Fingerprint Attendance Machine
5 inch IPS Screen Biometric Face&Fingerprint Attendance System Door Access Control
Biometric Face Recognition System Features:
1, Single User/5 User Face Recogntion at same time.
2, Face Recognition detecting distance reaches 0.5-2.5m (Adjustable)
3, Large User Capacity with Standard 5000 (20,000 User Capacity Optional).
4. Fast Recognition speed of less than 0.2s
5. Supports mutiple identification methods including Face, Fingerprint, QR Code, RFID Card, Password
Biometric Face Recognition System Specification:
|
Product Model |
TM-DF05 |
||
|
Appearance |
Case Material |
Aluminum Alloy |
|
|
Production Craft |
Engraving |
||
|
Firmware Specification |
CPU Processor |
1.2G Dual-Core ARM Cortex-A7 |
|
|
RAM |
256M DDR3 |
||
|
ROM |
4G eMMC |
||
|
Camera |
200WPixel HD Colorful Camera |
||
|
100W Infrared Camera |
|||
|
Fill Light |
Highlight LED Fill Light |
||
|
Dual Infrared High Power Fill Light |
|||
|
Display Screen |
5.0 IPS HD Touch Screen |
||
|
Screen Resolution |
1280*780 |
||
|
Keypad |
Touch Virtual Keypad |
||
|
Communication Method |
TCP/IP,USB type-A port,WIFI |
||
|
FRR |
<= 0.1% |
||
|
FAR |
<= 0.001% |
||
|
Product Size |
154mm*122mm*22mm |
||
|
Power Supply |
DC 12V,2A |
||
|
Working Temperature |
－15℃ to 60℃ |
||
|
OS |
LINUX System |
||
|
Language |
Chinese, English and other languages(Customized) |
||
|
User ID Capacity |
5000(20,000) |
||
|
Face Capacity |
5000(20,000) |
||
|
User Record Capacity |
1,000,000 |
||
|
Identification Type |
Dynamic Face Recognition, Password, Face Recognition& Password |
||
|
Face Recognition Mode |
1:1, 1:N |
||
|
Identification Display |
Person Name& Number |
||
|
Face Recognition Time |
Less than 0.2s |
||
|
Intelligent Function |
Infrared Live Person Identification Detection |
||
|
Face Recognition Distance |
Purely Dynamic Face Recognition |
0.5-3m |
|
|
Infrared Live movement detection |
0.5-1.5m |
||
|
Interface Specification |
Relay output |
1 set |
|
|
U-Disk output |
1 set |
||
|
Exit Switch |
1 set |
||
|
Wiegand Output |
1 set WG26/34 Output |
||
Biometric Face Recognition System Terminal Introduction:

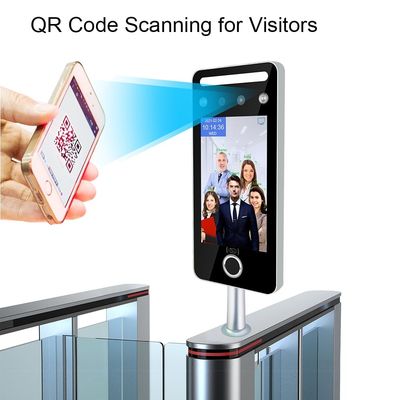

TM-AI07 supports the access verification through face, fingerprint, QR code, RFID card and password, it can be wall-mounted or Installed on turnstile. we freely offer software and mobile app to let user check real-time attendance and access records.
Biometric Face Recognition System Terminal Application:
TM-AI07F can be widely installed at the entrance of Office, hospital, public buidling,etc. which is to control the attendance logs and access records of the people flow. It adopts new generation of AI platform and new face algorithm, it can support 5 person face recognition at same time, it can be more effective and save time.
Biometric Face Recognition System Software Introduction.
TM-AI07F can connect to the software(both desktop software or web cloud software) through the communications of WIfi, TCP/IP( Ethernet), after setting configuaration on inputting network IP address, port number and series number. the device can automatically push data of attendance and logs to software in real time.
