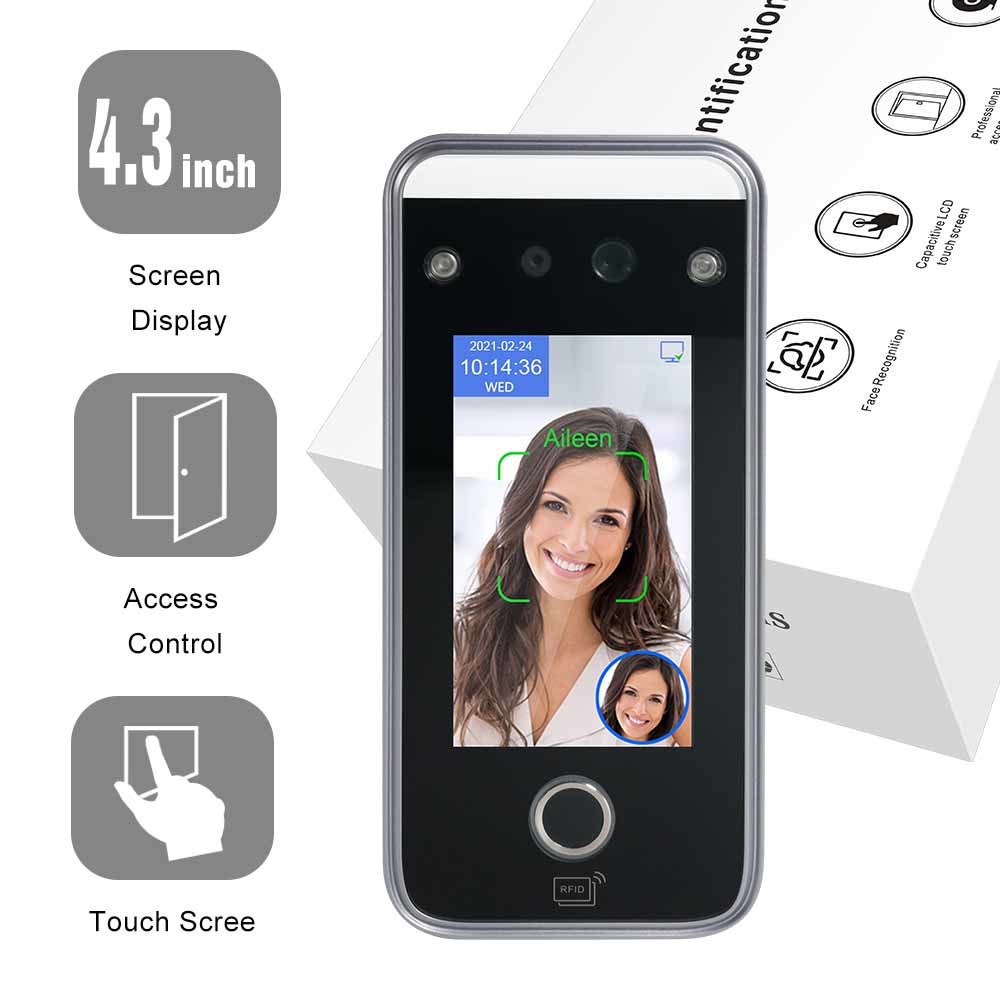

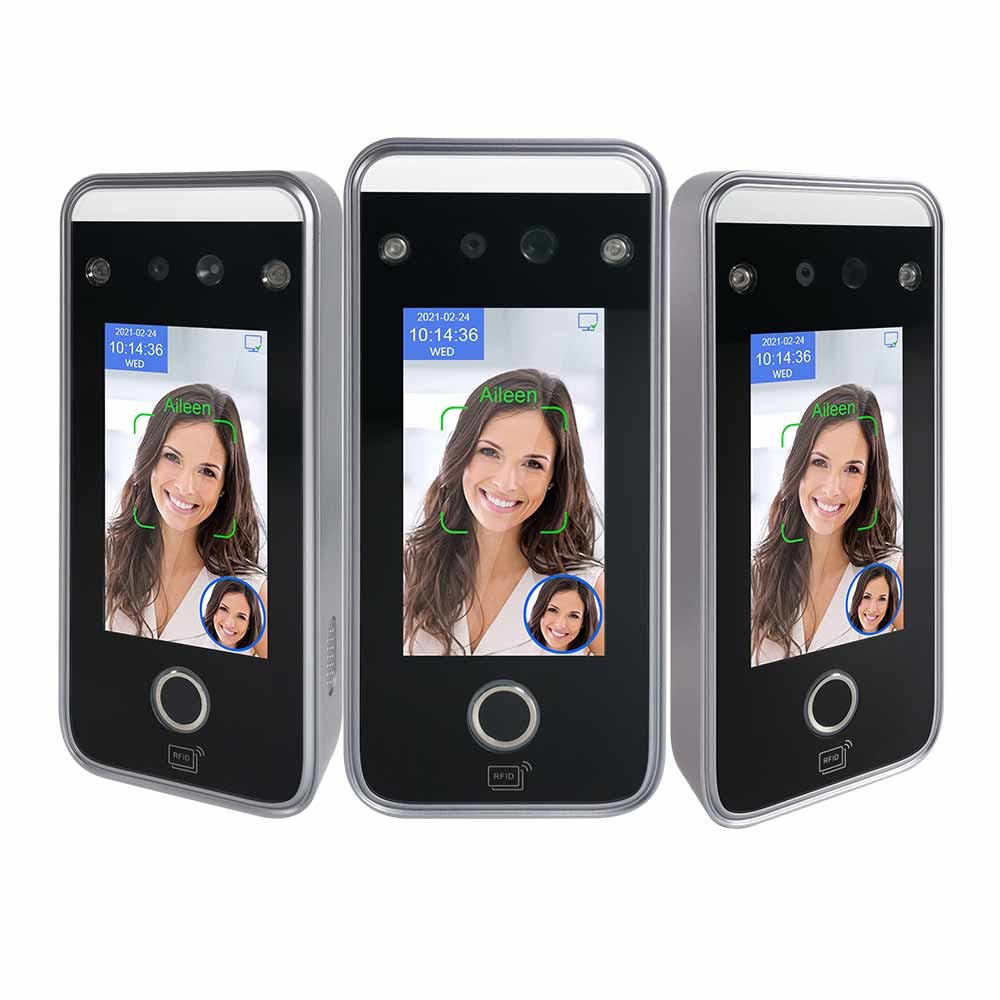

4.3" IPS Fingerprint Attendance System 272x480 Touch Screen Face Recognition Machines

4.3" IPS Fingerprint Attendance System 272x480 Touch Screen Face Recognition Machines

  • High Light

    fingerprint attendance system IPS Screen

    ,

    4.3" IPS fingerprint attendance system

    ,

    Face Recognition Machines FCC

  • Screen
    4.3" IPS 272*480 Touch Screen
  • Verification Type
    Face, Fingerprint, Card, Password
  • Identification Mode
    1:N, 1:1
  • Identification Speed
    ≦0.2s
  • Face / ID Capacity
    5,000
  • Fingerprint Capacity
    10,000 (50,000 Optional)
  • Record Capacity
    500,000
  • Detection Range
    0.5-3m
  • Special Features
    Motion Detection, Touch Screen, Built-in Camera, Night Vision (
  • Screen Resolution
    200WP Dual Infrared, Dual HD Camera
  • Relay Output
    1 Set
  • Wiegand
    1 Set Wiegand 26/34 Input Output
  • Communication
    USB/TCP/IP/U-stick(Optional: Wifi)
  • Power Supply
    DC 12V 1A
  • Place of Origin
    China
  • Brand Name
    TIMMY
  • Certification
    RoHS, CE, FCC
  • Model Number
    TM-AI06F
  • Minimum Order Quantity
    1pcs (sample)
  • Price
    Negotiable
  • Packaging Details
    Export packing: 49*40*30 cm 20 units/carton G.W. 10 Kg
  • Delivery Time
    Sample order 2~3 working days; Bulk order 6~12 working days
  • Payment Terms
    T/T, , Payal
  • Supply Ability
    1000 pcs per week

4.3" IPS Fingerprint Attendance System 272x480 Touch Screen Face Recognition Machines

AI Face & Fingerprint Recognition Machines Smart Attendance Access Control

Multiple Faces Recognition 4.3-Inch IPS Screen AI based Live Face Recognition Access Control Terminal

TM-AI06F is a time attendance and access control machine support face and fingerprint recognition, RFID card, password, 4.3-inch touch screen, TCP/IP and USB, wifi is optional. Powerful functions with economical price.



Face Recognition Machines Features

  1. Support multi (Up to 5 persons) and single person face recognition.
  2. Adopt wide dynamic range technology with good performance. It can detect under a strong light, dark light and backlight environment.
  3. It can be installed on turnstile and wall mounting.
  4. Support capture stranger's face if he appears in the camera.
  5. Display user enrolled photo when verified face.
  6. Support set face recognition distance: close (around 0.8m), middle (around 1.5m), far (around 2~3m)
  7. Support lock screen function: After the device screen does not uses, the screen will lock. Users have to unlock the screen by using fingerprint detection to activate the screen for face recognition detection.
  8. Support configure into the server.
  9. Support mask detection.

4.3" IPS Fingerprint Attendance System 272x480 Touch Screen Face Recognition Machines 04.3" IPS Fingerprint Attendance System 272x480 Touch Screen Face Recognition Machines 14.3" IPS Fingerprint Attendance System 272x480 Touch Screen Face Recognition Machines 2



Face Recognition Machines specifications



Product name
TM-AI06F WDR AI Face Recognition Access Control Time Attendance Terminal
Screen
4.3 Inch Touch Screen
Keypad
Touch keypad
Operation system
LINUX 3.10
CPU,NPU
1.2G Dual-Core ARM Cortex-A7
RAM
256M DDR3L
ROM
4G EMMC
Binocular camera
200W pixel high-definition color camera WDR wide dynamic
200W pixel infrared live camera
Live detection
Dynamic dual-camera anti-counterfeiting, to prevent all kinds of black-and-white, color photos and videos from deception
Logs capacity
500000
Face Registration
Local operation: Enroll face with machine, import user photo with U disk
Software operation: Import user photo to software, capture user photo with camera
Verification
Dynamic face recognition, password, ID (IC card optional)
Face capacity
5000(50000 optional)
Card Capacity
5000(50000 optional)
Fingerprint Capacity
5000(50000 optional)
Face Recognition Accuracy
99.70%
Recognition Speed
≤0.2s, support single user/multi user(at most 5 users) recognition at same time
Recognition Distance
0.5~2.5 meters (0.5~1.5 meters with live face recognition on)
Prevent Photo
Dual camera anti-counterfeiting, prevent recognition with photo/video
Principle of Identification
Face algorithm technology of multi-task cascaded convolutional neural network based on
video stream for dynamic face detection, tracking and recognition
WDR
Wide dynamic range, support accurate face recognition under Strong light, dark light and backlight
USB
USB2.0x1,Support U disk import/export data
Power supply
DC12V 2A
Network Communication
TCP/IP, Wifi
Free Attendance sofware
Support exporting excel attendance report with U disk
Mask detection
Support mask detection and face recognition with wearing mask
Management Software
Desktop, Cloud ,SDK, Mobile APP
Access Control Function
Door sensor: support
Alarm output:1 set
Usb Disk output:1 set
Relay output:1 set
Exit button: 1 set
WG:1 set WG In, out
Fire Input:1 set
External alarm:support
QR Code Scanner
Support
Environmental adaptability
Working temperature: -15C~+45°C (storage temperature -40C~+65°C),
Working humidity: 20% ~90% (storage humidity 20%~90+2%),
Dark enviroment: LEDSoft light automatic fll light (Automatic control according to ambient light)
Ambient light adaptation range: 0-50000Lux
Muti language
Support 20 national languages and voices including English, Spanish, Arabic, Thai, Farsi, Portuguese, French, Italian, Japanese,Korean, etc
Installation Way
Standard: Wall mount, desktop stand; Optional: bracket for turnstile, floor stand



Face recognition machines FAQ

Q1: Are you a manufacturer or a trade company?
Reply : Shenzhen Union Timmy Technology Co., Ltd. is one of the leading manufacturers and exporters. We are enjoying an excellent reputation through 20 years’ production experience of time attendance in China.

Q2: How many days can we get the products if placed purchase order?
Reply : In regularly, 2-3 working days for Sample and ready stock;
15 working days for production order after receiving of order confirmation and deposit.

Q3: When was your company formed?
Reply : Since year 2000, the founders of Shenzhen Union Timmy Technology Co., Ltd. (Timmy Technology) have been striving for independent research and development of biometric verification algorithms, vertical three roller gates, access control system, one-card management system and the production of biometric verification SDK which was initially widely applied in PC security, time attendance and identity authentication fields.



Q4: Any payment method are acceptable?
Reply: T/T, PayPal and .



Q5: Can we print our brand name for OEM?
Reply: Logo printed and client customization are our expertise for ordering at our MOQ.


Q6: Can we get some samples?
Reply: We are honored to offer samples for your evaluation.

Q7: How does your factory QC?
Reply: Quality check is our first priority for our customers without any careless.
Furthermore, Timmy Technology has been recognized as a "National High-tech Enterprise" for 3 consecutive years, passed ISO9001 certification, and the products have passed FCC/CE/ROHS certification, etc




Should you have any inquiry, feel free to contact us





Face recognition machines Warranty



Timmy warrantees all the hardware products to be free from manufacturing defects. It also warrants this hardware product against defects in materials and workmanship that result in a material deviation from the applicable published Timmy technical specifications or customized specifications for that particular client.
