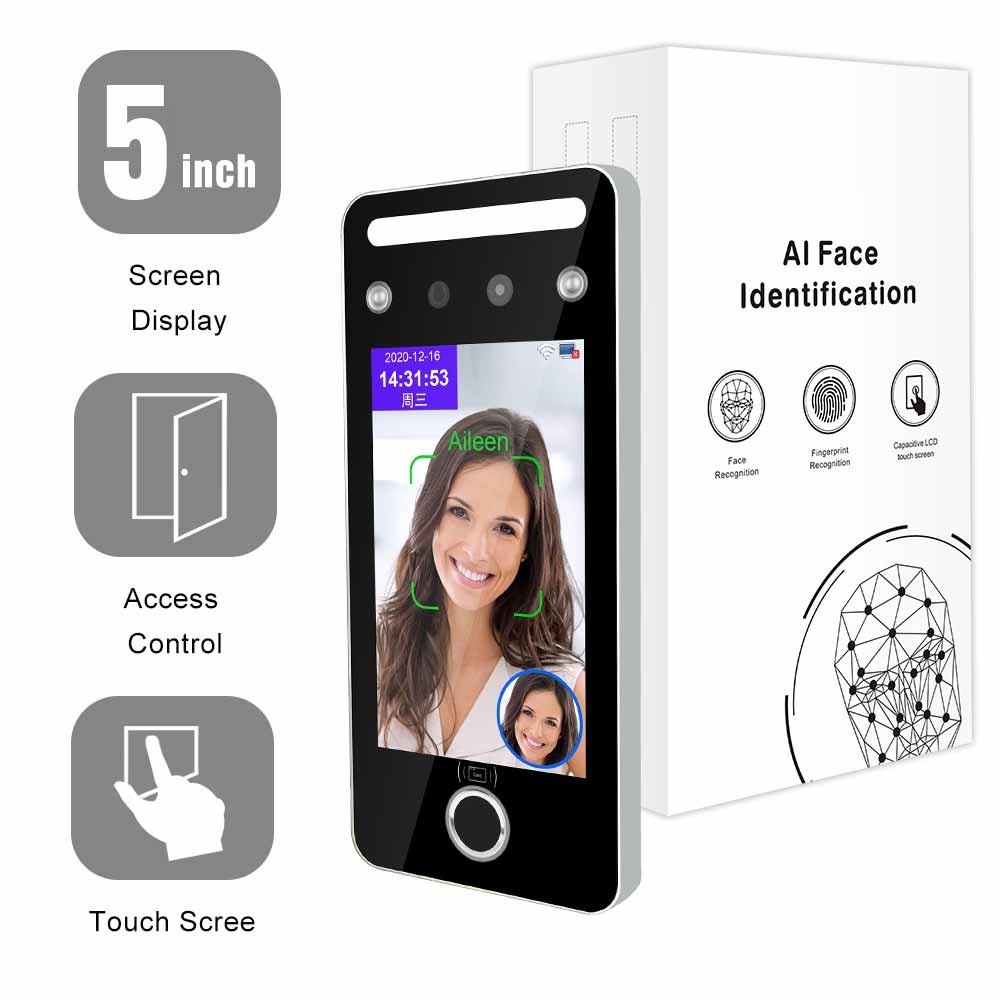

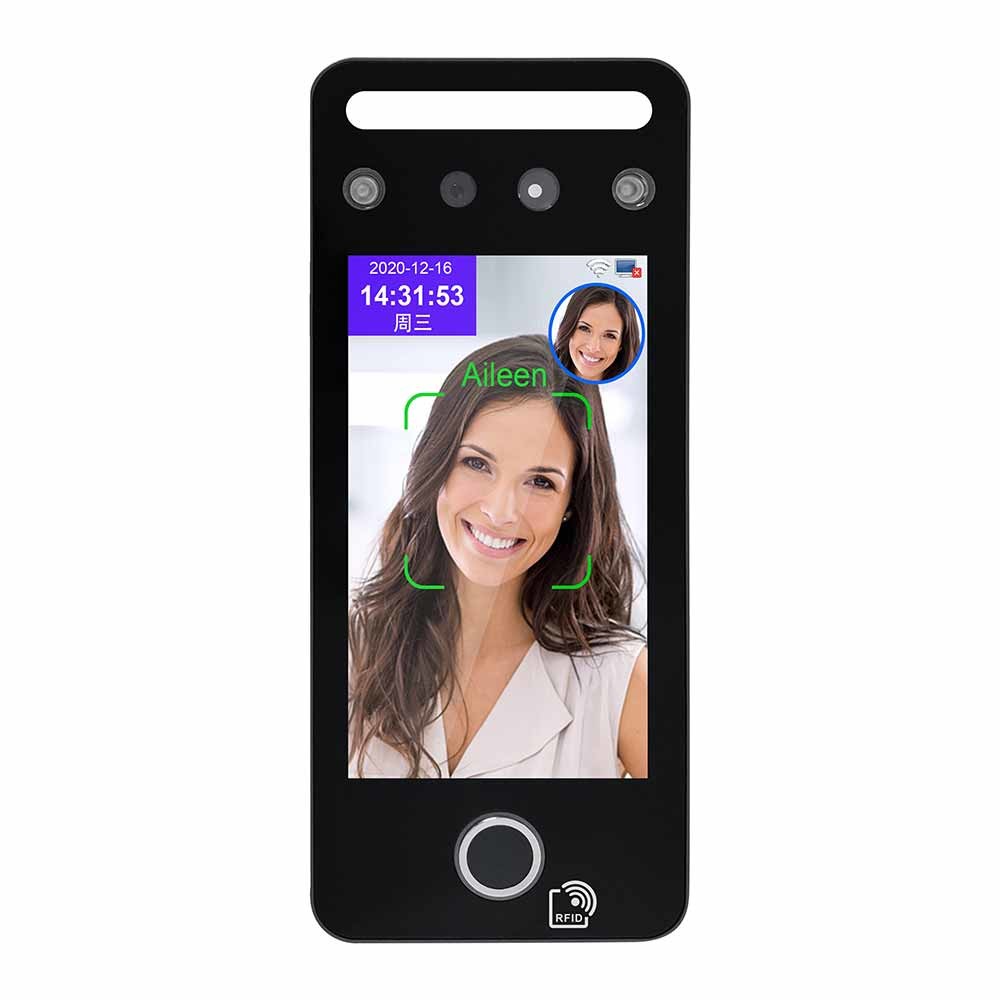

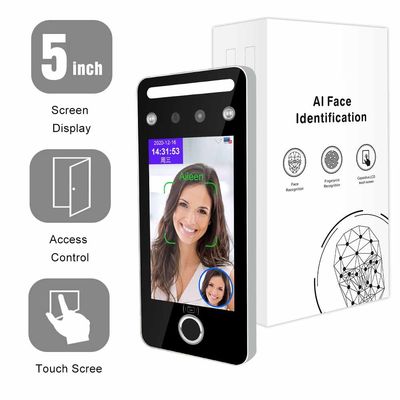

TIMMY Wifi Dynamic Facial Recognition Access Control System Fingerprint Attendance System

TIMMY Wifi Dynamic Facial Recognition Access Control System Fingerprint Attendance System

  • High Light

    Fingerprint Dynamic Facial Recognition Access Control System

    ,

    Wifi Dynamic Facial Recognition Access Control System

    ,

    IPS Screen fingerprint attendance system

  • Screen
    5-inch HD 720P IPS Touch Screen
  • OS
    Linux Systerm
  • Face / ID Capacity
    5,000 (Optional 50,000)
  • Record Capacity
    500,000
  • Fingerprint Capacity
    10,000
  • Special Features
    Motion Detection,Abnormal Sound Detection, Built-in Camera, Night Vision
  • Detection Range
    0.5-3m
  • Identification Mode
    4 In One: Face/Fingerprint/PIN/Card/combination
  • Wiegand In/Out
    Lock Combination, Double Door Interlock, Anti-pass Back.
  • Screen Resolution
    200W Pixel Dual Infrared, Dual HD Camera
  • Power Supply
    DC 12V 1A
  • Place of Origin
    China
  • Brand Name
    TIMMY
  • Certification
    RoHS, CE, FCC
  • Model Number
    TM-AI07F
  • Minimum Order Quantity
    1pcs (sample)
  • Price
    Negotiable
  • Packaging Details
    Export packing: 28*20*10 cm G.W. 2 Kg
  • Delivery Time
    Sample order 2~3 working days; Bulk order 6~12 working days
  • Payment Terms
    T/T, , Payal
  • Supply Ability
    1000 pcs per week

TIMMY Wifi Dynamic Facial Recognition Access Control System Fingerprint Attendance System

TIMMY Wifi Dynamic Facial Fingerprint Recognition Access Control System



Linux Based Visible Light Facial and fingerprint Recognition With Wireless WiFi



Enhanced Visible Light Facial Recognition with 2 pieces of brighten LED. Masked individual identification increases FAR. Multiple verification methods: Face/Fingerprint/Card/Password. Built-in ID reader of 125KHz, Optional 13.56MHz IC(MF) card. Professional web based management software. Recognition distance: 0.5-2.5 meters.



Face Recognition Machines Features

  1. Support multi person face recognition with 5 persons at same time (Single person or multi person recognition are selectable)
  2. Support WDR (wide dynamic range), with good performance. It can be detected under a strong light, dark light and backlight environment
  3. Support mask detection (Choose Yes/No in the menu)
  4. Support capture stranger's face if he appears in the camera
  5. Display user enrolled photo when verified face.

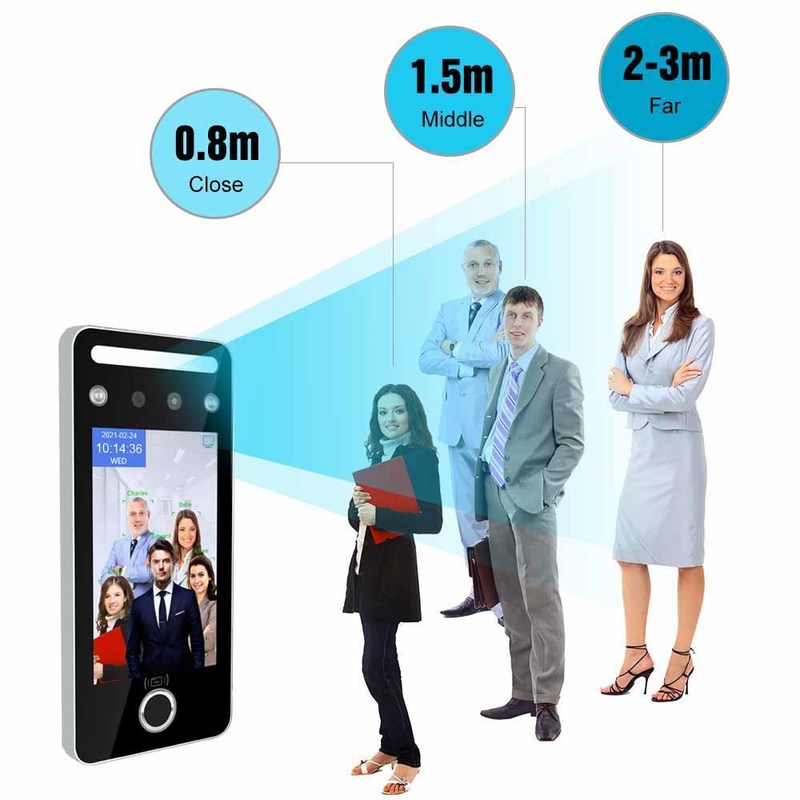

  6. Support set face recognition distance: close (around 0.8m), middle (around 1.5m), far (around 2~3m)
  7. Support match in server.
  8. Interface input: door open button input, Wiegand input, fire linkage input, door sensor input, Tamper proof.

  9. Interface output: lock control output, bell output, doorbell output. Wiegand output, alarm output.

  10. Support lock screen, after locking screen, user have to touch the screen to active the machine, then do face recognition. If not touch the screen, even if the user stands in front of machine it not recognizes face.



TIMMY Wifi Dynamic Facial Recognition Access Control System Fingerprint Attendance System 0TIMMY Wifi Dynamic Facial Recognition Access Control System Fingerprint Attendance System 1



Face recognition machines Specification





Product name
AI Dynamic Face Recognition Time Attendance Access ControI TerminaI
Screen
5.0 Inch, HD 1280*720, Capacitive Touch Screen
Keypad
Touch keypad
Operation system
LINUX 3.10
CPU,NPU
1.2G DuaI-Core ARM Cortex-A7, 600G(0.6T)
RAM
256MB DDR3L
ROM
eMMC FIash 4GB
BinocuIar camera
200W CoIorfuI WDR+200W Infrared Iive camera
Logs capacity
500,000
Face Registration
LocaI operation: EnroII face with machine, import user photo with U disk Software operation: Import user photo to software,
capture user photo with camera
Verification
Dynamic face recognition, password, ID/IC card optionaI
Face capacity
5,000 (50,000 optionaI)
Fingerprint Capacity
10,000 (50,000 optionaI)
Card Capacity
5,000 (50,000 optionaI)
Password Capacity
5,000 (50,000 optionaI)
Face Recognition Accuracy
99.70%
Recognition Speed
≤0.2s, support singIe user/muIti user(at most 5 users) recognition at same time
Recognition Distance
0.5~2.5 meters (0.5~1.5 meters with Iive face recognition on)
Prevent Photo
DuaI camera anti-counterfeiting, prevent recognition with photo/video
PrincipIe of Identification
Face aIgorithm technoIogy of muIti-task cascaded convoIutionaI neuraI network based on video stream for dynamic face detection,
tracking and recognition
WDR
Wide dynamic range, support accurate face recognition under Strong Iight, dark Iight and backIight
USB
USB2.0 x 1 ,Support U disk import/export data
Power suppIy
DC12V interface x 1
Speaker Interface
Reserved for extended Speaker Interface
Network Communication
TCP/IP, Support C/S LAN communication, Wifi (optionaI)
Free Attendance software
Support exporting exceI attendance report with U disk
Shift
Support shift setting and importing shift scheduIe with U disk
Management Software
Support PC software to manage data through network connection with equipment
Access ControI Function
Door uncIosed aIarm, forced door opening aIarm, aIarm Iinkage and output, one set of door opening signaIs, one set of aIarm signaI, time permission controI, connect externaI access controI reader, Wiegand 26/34 output/input
EnvironmentaI adaptabiIity
Working temperature:-15℃ ~+45℃ (storage temperature -40℃~+65℃),
Working humidity: 20%~90% (storage humidity 20%~90±2%),
Dark enviroment: LED Soft Iight automatic fiII Iight (Automatic controI according to ambient Iight) Ambient Iight adaptation range:0-50,000 Lux
MuIti Ianguage
EngIish, Spanish, Arabic, Thai, Farsi, Portuguese, French, ItaIian, Japanese, Korean, etc
Broadcast and ring
Support dispIay name, voice broadcast name, buiIt-in beII ring
Automatic fiII Iight
Support infrared fiII Iight, the white fiII Iight automaticaIIy Iights up when face is captured in dark Iight
Working Current
stand-by current:310mA , Working current: 520mA
QR Code Scanner
Support
Working VoItage
DC12V
InstaIIation Way
Standard: WaII mount, desktop stand; OptionaI: bracket for turnstiIe, fIoor stand
Machine Dimension
188x80x20 mm

Face recognition machines FAQ



Q1: Are you a manufacturer or a trading company?
Reply : Shenzhen Union Timmy Technology Co., Ltd. is one of the leading manufacturers and exporters. We are enjoying an excellent reputation through 21 years of production experience of time attendance in China.

Q2: How many days can we get the products if placed purchase order?
Reply : In regularly, 2-3 working days for Sample and ready stock;
15 working days for production order after receiving of order confirmation and deposit.

Q3: When was your company formed?
Reply : Since year 2000, the founders of Shenzhen Union Timmy Technology Co., Ltd. (Timmy Technology) have been striving for independent research and development of biometric verification algorithms, vertical three roller gates, access control system, one-card management system and the production of biometric verification SDK which was initially widely applied in PC security, time attendance and identity authentication fields.



Q4: Any payment method are acceptable?
Reply: T/T, PayPal and .



Q5: Can we print our brand name for OEM?
Reply: Logo printed and client customization are our expertise for ordering at our MOQ 100 pcs.


Q6: Can we get some samples?
Reply: We are honored to offer samples for your evaluation.

Q7: How does your factory QC?
Reply: Quality check is our first priority for our customers without any careless.
Furthermore, Timmy Technology has been recognized as a "National High-tech Enterprise" for 3 consecutive years, passed ISO9001 certification, and the products have passed FCC/CE/ROHS certification, etc




Should you have any inquiry, feel free to contact us





Face recognition machines Warranty



Timmy warrantees all the hardware products to be free from manufacturing defects. It also warrants this hardware product against defects in materials and workmanship that result in a material deviation from the applicable published Timmy technical specifications or customized specifications for that particular client.
