SDK Cloud Wiegand Biometric Face Recognition Machines Door Access Control

SDK Cloud Wiegand Biometric Face Recognition Machines Door Access Control

  • High Light

    Wiegand Biometric Face Recognition Machines


    Wiegand Door Access control


    0.2s Face Recognition Machines

  • Screen
    5-inch HD 720P IPS Touch Screen
  • Identification Mode
    4 In One: Face/Fingerprint/PIN/Card/combination
  • OS
    Linux Systerm
  • Face / ID Capacity
  • Record Capacity
  • Fingerprint Capacity
  • Special Features
    Motion Detection, HD Touch Screen, Built-in Camera, Night Vision
  • Detection Range
  • Screen Resolution
    200W Pixel Dual Infrared, Dual HD Camera
  • Wiegand In/Out
    Lock Combination, Double Door Interlock, Anti-pass Back.
  • Power Supply
    DC 12V 1A
  • Place of Origin
  • Brand Name
  • Certification
    RoHS, CE, FCC
  • Model Number
  • Minimum Order Quantity
    1pcs (sample)
  • Price
  • Packaging Details
    Export packing: 28*20*10 cm G.W. 2 Kg
  • Delivery Time
    Sample order 2~3 working days; Bulk order 6~12 working days
  • Payment Terms
    T/T, , Payal
  • Supply Ability
    1000 pcs per week

SDK Cloud Wiegand Biometric Face Recognition Machines Door Access Control

SDK Cloud Wiegand Biometric Face Recognition Machines Door Access Control


Linux Based Visible Light Facial and fingerprint Recognition With Wireless WiF


Enhanced Visible Light Facial Recognition with 6 pieces of brighten LED. Masked individual identification increases FAR. Multiple verification methods: Face/Fingerprint/Card/Password. Built-in ID reader of 125KHz, Optional 13.56MHz IC(MF) card. Professional web based management software. Recognition distance: 0.5-2.5 meters.


Face Recognition Machines Features

  1. Support multi person face recognition with 5 persons at same time (Single person or multi person recognition are selectable)
  2. Support WDR (wide dynamic range), with good performance. It can be detected under a strong light, dark light and backlight environment
  3. Support mask detection (Choose Yes/No in the menu)
  4. Support capture stranger's face if he appears in the camera
  5. Display user enrolled photo when verified face.
  6. Support set face recognition distance: close (around 0.8m), middle (around 1.5m), far (around 2~3m)
  7. Support lock screen, after locking screen, user have to touch the screen to active the machine, then do face recognition. If not touch the screen, even if the user stands in front of machine it not recognizes face.
  8. Support match in server.
  9. Interface output: lock control output, bell output, doorbell output. Wiegand output, alarm output

  10. Interface input: door open button input, Wiegand input, fire linkage input, door sensor input, Tamper proof.


Face recognition machines Specification


SDK Cloud Wiegand Biometric Face Recognition Machines Door Access Control 0


Product name
AI Dynamic Face Recognition Time Attendance Access ControI TerminaI
5.0 Inch, HD 1280*720, Capacitive Touch Screen
Touch keypad
Operation system
LINUX 3.10
1.2G DuaI-Core ARM Cortex-A7, 600G(0.6T)
eMMC FIash 4GB
BinocuIar camera
200W CoIorfuI WDR+200W Infrared Iive camera
Logs capacity
Face Registration
LocaI operation: EnroII face with machine, import user photo with U disk Software operation: Import user photo to software,
capture user photo with camera
Dynamic face recognition, password, ID/IC card optionaI
Face capacity
5,000 (50,000 optionaI)
Fingerprint Capacity
10,000 (50,000 optionaI)
Card Capacity
5,000 (50,000 optionaI)
Password Capacity
5,000 (50,000 optionaI)
Face Recognition Accuracy
Recognition Speed
≤0.2s, support singIe user/muIti user(at most 5 users) recognition at same time
Recognition Distance
0.5~2.5 meters (0.5~1.5 meters with Iive face recognition on)
Prevent Photo
DuaI camera anti-counterfeiting, prevent recognition with photo/video
PrincipIe of Identification
Face aIgorithm technoIogy of muIti-task cascaded convoIutionaI neuraI network based on video stream for dynamic face detection,
tracking and recognition
Wide dynamic range, support accurate face recognition under Strong Iight, dark Iight and backIight
USB2.0 x 1 ,Support U disk import/export data
Power suppIy
DC12V interface x 1
Speaker Interface
Reserved for extended Speaker Interface
Network Communication
TCP/IP, Support C/S LAN communication, Wifi (optionaI)
Free Attendance software
Support exporting exceI attendance report with U disk
Support shift setting and importing shift scheduIe with U disk
Management Software
Support PC software to manage data through network connection with equipment
Access ControI Function
Door uncIosed aIarm, forced door opening aIarm, aIarm Iinkage and output, one set of door opening signaIs, one set of aIarm signaI, time permission controI, connect externaI access controI reader, Wiegand 26/34 output/input
EnvironmentaI adaptabiIity
Working temperature:-15℃ ~+45℃ (storage temperature -40℃~+65℃),
Working humidity: 20%~90% (storage humidity 20%~90±2%),
Dark enviroment: LED Soft Iight automatic fiII Iight (Automatic controI according to ambient Iight) Ambient Iight adaptation range:0-50,000 Lux
MuIti Ianguage
EngIish, Spanish, Arabic, Thai, Farsi, Portuguese, French, ItaIian, Japanese, Korean, etc
Broadcast and ring
Support dispIay name, voice broadcast name, buiIt-in beII ring
Automatic fiII Iight
Support infrared fiII Iight, the white fiII Iight automaticaIIy Iights up when face is captured in dark Iight
Working Current
stand-by current:310mA , Working current: 520mA
QR Code Scanner
Working VoItage
InstaIIation Way

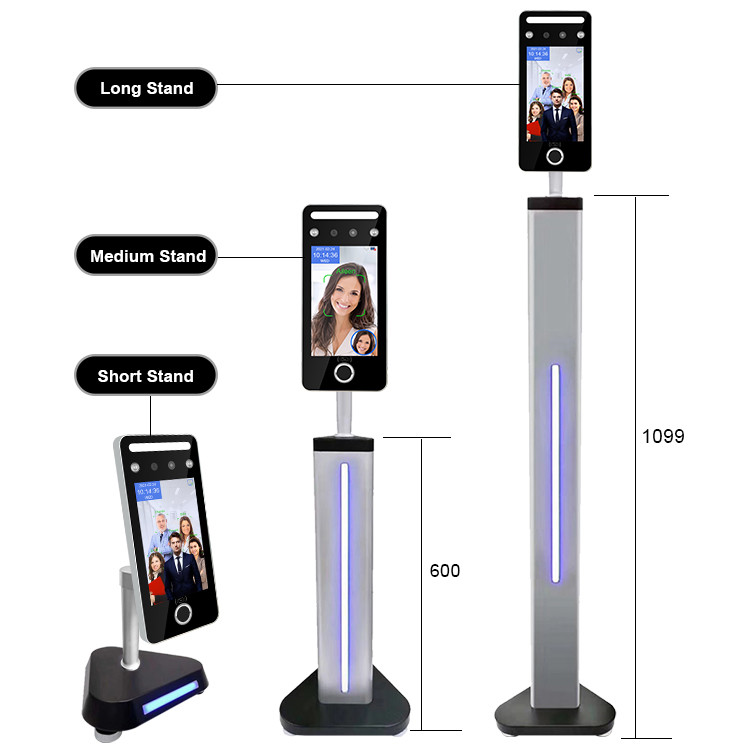

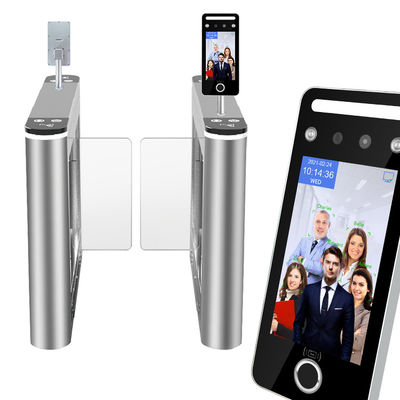

Standard: WaII mount, desktop stand; OptionaI: bracket for turnstiIe, fIoor stand
Machine Dimension
188x80x20 mm


Face recognition machines FAQ


Q: 1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q: 2. What is the lead time?
A: Sample needs 1-3 days, mass production time needs 10-25 days for order less than 5000 pcs. Time is negotiable.

Q: 3. Do you have any MOQ limit?
A: No. 1pc is our MOQ.

Q: 4. How do you ship the goods and how long does it take arrive?
A: Sample order, we usually suggest the shipping by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. To bulk order air or sea shipping is suggested.

Q: 5. What is the warranty for the products?
A: Yes, we offer 1 year warranty for the products.

Q: 6. How is your after-selling service?
A: We have after-sales technical team, provide 24 hours online technical support.

Q: 7. Do you supply OEM service?
A: Yes, We support OEM like logo printing or box customization on quantity of hundreds.


Should you have any inquiry, feel free to contact us



Face recognition machines Warranty


Timmy warrantees all the hardware products to be free from manufacturing defects. It also warrants this hardware product against defects in materials and workmanship that result in a material deviation from the applicable published Timmy technical specifications or customized specifications for that particular client.
