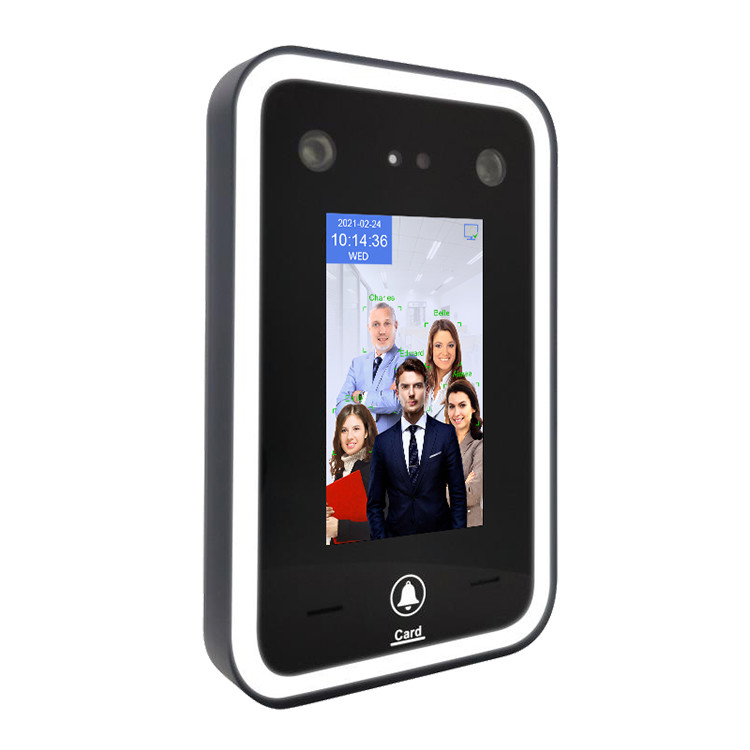

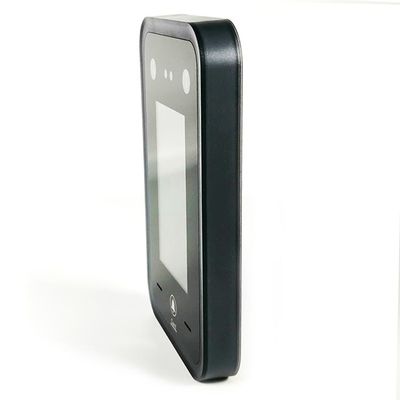

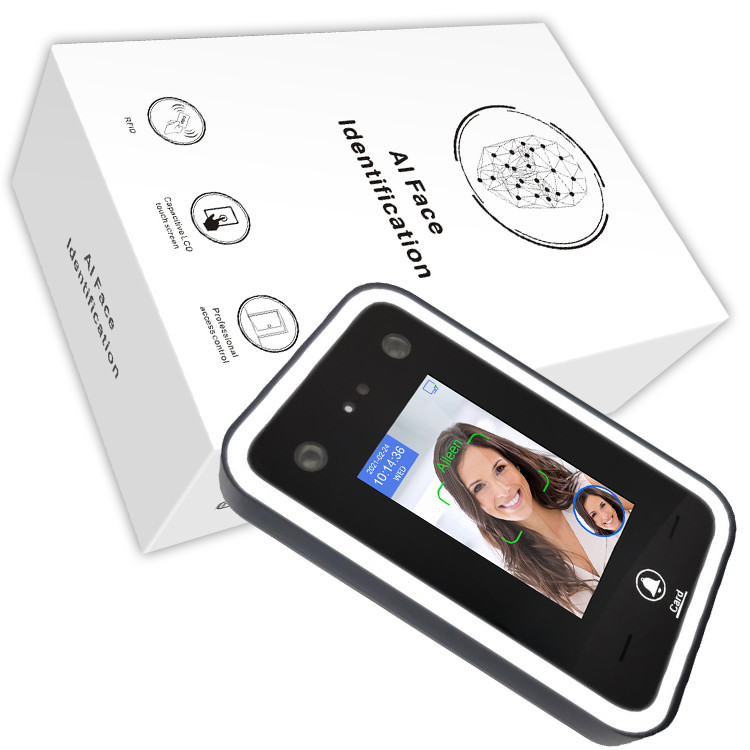

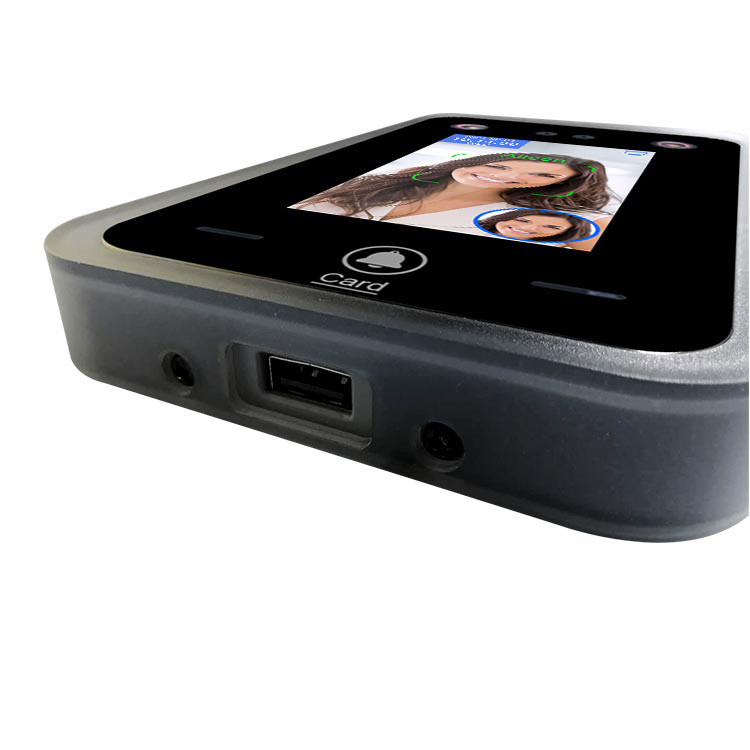

5 Inch IPS Touch LCD Face Recognition Device For Turnstile Barrier

5 Inch IPS Touch LCD Face Recognition Device For Turnstile Barrier

  • High Light

    LCD Face Recognition Device


    Turnstile Face Recognition Device


    Turnstile Face Recognition Terminal

  • Screen
    5-inch IPS Touch Screen
  • Cameera
    200W Pixel Dual Infrared, Dual HD Camera
  • Identification Mode
    1:N, 1:1
  • Identification Speed
  • Face / ID Capacity
  • Record Capacity
  • Resolution
  • Special Features
    Motion Detection, Touch Screen, Built-in Camera, Night Vision
  • Wiegand
    1 Set Wiegand 26/34 Input Output
  • Power Supply
    DC 12V / 1A
  • Place of Origin
  • Brand Name
  • Certification
    RoHS, CE, FCC
  • Model Number
  • Minimum Order Quantity
    1pcs (sample)
  • Price
  • Packaging Details
    Export packing: 26*9*17 cm /box 48*38*23 cm / Outer carton 10pcs/carton
  • Delivery Time
    Sample order 2~4 working days; Bulk order 5~13 working days
  • Payment Terms
    T/T, , Payal
  • Supply Ability
    1000 pcs per week

5 Inch IPS Touch LCD Face Recognition Device For Turnstile Barrier

5 Inch IPS Touch LCD Face Recognition Device For Turnstile Barrier
AI02 is Linuex Visible light Dynamic Face Recognition for turnstile or Barrier, Linuex, 5 inch Touch screen, 10000 face, 100,000 logs, optional ID and fingerprint, It is Visibal Light based, can work under the strong sunlight, we have web based software for management.

Facial Recognition Station for turnstile/Barrier

  1.  Enhanced Visible Light Facial Recognition with Deep Learning built-in.

  2.  3-in-1 verification with Fingerprint, RFID and Facial Recognition.

  3.  5-inch touch LCD.

  4. Dual-camera for real-time face detection 10,000 face template capacity.

  5. Recognition distance: 0.3 - 3 m.

  6.  Compatible with external RS485 and Wiegand reader.

  7. TCP / IP, USB, RS485 and Wiegand, optional Wi-Fi communication.

  8. It's easy to fix to the turnstile or barrier

 5 Inch IPS Touch LCD Face Recognition Device For Turnstile Barrier 0

Face recognition machines Specification


Installation Method Wall mount, Turnstile, Desktop Stand & Floor Stand
CPU Processor 1.2G Dual-Core ARM Cortex-A7
NPU 600G(0.6T)
Cabinet raw material Metal case ( Aluminum)
Camera 200W Pixel color camera, 200W Infrared camera
LED LED Double high power infrared light
Display 4.3 Inch IPS Capacitance Touch Screen
Communication TCP/IP, WIFI / USB Type-A
FRR <0.1%
FAR <0.0001%
Power supply DC 12V, 2A
Operating system LINUX
Language Multi languages
User capacity Face: 5,000 (Optional 50,000)
Record Capacity 500,000
Identification style Visible Light Facial Recognition, PIN, face & PIN combination ,ID (Multi detection for 5 users are selectable)
Exposure Compensation Wide dynamic image recognition, can be recognized under strong light backlight and dark light
Identification Mode 1:1, 1:N
Prevent photo Prevent face recognition with photo/video
Face recognition time <0.2S
Intelligent function Live face detection
Detection range 0.5-2.5m (0.5~1.5m with live face recognition on)
Magnetic door support
Wiegand 1 set WG26/34 In, out
Dimension 184*113*20mm

Face recognition machines FAQ
Q1: Are you a manufacturer or a trade company?
Reply : Shenzhen Union Timmy Technology Co., Ltd. is one of the leading manufacturers and exporters. We are enjoying an excellent reputation through 20 years’ production experience of time attendance in China.
Q2: When was your company formed?
Reply : Since year 2000, the founders of Shenzhen Union Timmy Technology Co., Ltd. (Timmy Technology) have been striving for independent research and development of biometric verification algorithms, vertical three roller gates, access control system, one-card management system and the production of biometric verification SDK which was initially widely applied in PC security, time attendance and identity authentication fields.

Q3: How many days can we get the products if placed purchase order?
Reply : In regularly, 2-3 working days for Sample and ready stock;
15 working days for production order after receiving of order confirmation and deposit.

Q4: Any payment method are acceptable?
Reply: T/T, PayPal and .

Q5: Can we print our brand name for OEM?
Reply: Logo printed and client customization are our expertise for ordering at our MOQ.

Q6: Can we get some samples?
Reply: We are pleased to offer samples for your evaluation.
Q7: How does your factory QC?
Reply: Quality check is our first priority for our customers without any careless.
Furthermore, Timmy Technology has been recognized as a "National High-tech Enterprise" for 3 consecutive years, passed ISO9001 certification, and the products have passed FCC/CE/ROHS certification, etc

Should you have any inquiry, feel free to contact us
Face recognition machines Warranty
Timmy warrantees all the hardware products to be free from manufacturing defects. It also warrants this hardware product against defects in materials and workmanship that result in a material deviation from the applicable published Timmy technical specifications or customized specifications for that particular client.
