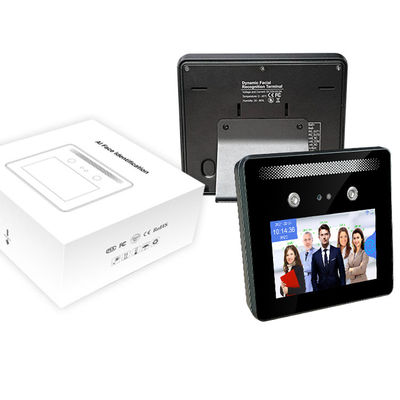

0.2s Multiple Face Recognition Machines Biometric Time Attendance System
Multiple Faces Recognition Time Recorder QR Code Card Recognition Access System Software
It is a time attendance and access control machine support face recognition, RFID card, password, 5-inch touch screen, TCP/IP, USB and Wifi.
Face Recognition Machines Features
Support multi person face recognition with 5 persons at same time (Single person or multi person recognition are selectable)
Support WDR (wide dynamic range), with good performance. It can be detected under a strong light, dark light and backlight environment
Support mask detection (Choose Yes/No in the menu)
Support capture stranger's face if he appears in the camera
Display user enrolled photo when verified face.
Support set face recognition distance: close (around 0.8m), middle (around 1.5m), far (around 2~3m)
Support lock screen, after locking screen, user have to touch the screen to active the machine, then do face recognition. If not touch the screen, even if the user stands in front of machine it not recognizes face.
Support match in server.
Face recognition machines Specification
|
Product name |
AI Dynamic Face Recognition Time Attendance Access Control Terminal |
|
Screen |
5.0 Inch, HD 1280*720, Capacitive Touch Screen |
|
Keypad |
Touch keypad |
|
Operation system |
LINUX 3.10 |
|
CPU,NPU |
1.2G Dual-Core ARM Cortex-A7, 600G (0.6T) |
|
RAM |
256MB DDR3 |
|
ROM |
eMMC Flash 4GB |
|
Binocular camera |
200W Colorful WDR+200W Infrared live camera |
|
Logs capacity |
500000 |
|
Face Registration |
Local operation: Enroll face with machine, import user photo with U disk |
|
Software operation: Import user photo to software, capture user photo with camera |
|
|
Verification |
Dynamic face recognition, password, ID/IC card optional |
|
Face capacity |
5000 (10000/50000 optional) |
|
Card Capacity |
5000 (10000/50000 optional), ID Card Standard, IC Card Optional |
|
Password Capacity |
5000 (10000/50000 optional) |
|
Face Recognition Accuracy |
99.70% |
|
Recognition Speed |
≤0.2s, support single user/multi user(at most 5 users) recognition at same time |
|
Recognition Distance |
0.5~2.5 meters (0.5~1.5 meters with live face recognition on) |
|
Prevent Photo |
Dual camera anti-counterfeiting, prevent recognition with photo/video |
|
Principle of Identification |
Face algorithm technology of multi-task cascaded convolutional neural network based on |
|
|
video stream for dynamic face detection, tracking and recognition |
|
WDR |
Wide dynamic range, support accurate face recognition under Strong light, dark light and backlight |
|
USB |
USB2.0x1,Support U disk import/export data |
|
Power supply |
DC12V interface x 1 |
|
Speaker Interface |
Reserved for extended Speaker Interface |
|
Network Communication |
TCP/IP, Support C/S LAN communication, Wifi (optional) |
|
Free Attendance sofware |
Support exporting excel attendance report with U disk |
|
Shift |
Support shift setting and importing shift schedule with U disk |
|
Management Software |
Support PC software to manage data through network connection with equipment |
|
Access Control Function |
Door unclosed alarm, forced door opening alarm, alarm linkage and output, one set of door opening signals, |
|
one set of alarm signals, time permission control, connect external access control reader, |
|
|
Wiegand 26/34 output |
|
|
Environmental adaptability |
Working temperature: -15C~+45°C (storage temperature -40C~+65°C), |
|
Working humidity: 20% ~90% (storage humidity 20%~90+2%), |
|
|
Dark enviroment: LEDSoft light automatic fll light (Automatic control according to ambient light) |
|
|
Ambient light adaptation range: 0-50000Lux |
|
|
Muti language |
English, Spanish, Arabic, Thai, Farsi, Portuguese, French, Italian, Japanese, Korean, etc |
|
Broadcase and ring |
Support display name, voice broadcase name, builtin bell ring |
|
Automatic fill light |
Support infrared fill light, the white fll light automatically lights up when face is captured in dark light |
|
Working Current |
stand-by current: 310mA , Working current: 520mA |
|
QR Code Scanner |
Support |
|
Working Voltage |
DC12V |
|
Installation Way |
Standard: Wall mount, desktop stand; Optional: bracket for turnstile, floor stand |
|
Device Dimension |
133x155x25.5mm |
|
Color box dimension |
214x214x94mm |
|
Carton dimension |
Size: 480x438x229mm,12Kg/carton, 10台 /carton |
Face recognition machines FAQ
Q1: Are you a manufacturer or a trade company?
Reply : Shenzhen Union Timmy Technology Co., Ltd. is one of the leading manufacturers and exporters. We are enjoying an excellent reputation through 20 years’ production experience of time attendance in China.
Q2: How many days can we get the products if placed purchase order?
Reply : In regularly, 2-3 working days for Sample and ready stock;
15 working days for production order after receiving of order confirmation and deposit.
Q3: When was your company formed?
Reply : Since year 2000, the founders of Shenzhen Union Timmy Technology Co., Ltd. (Timmy Technology) have been striving for independent research and development of biometric verification algorithms, vertical three roller gates, access control system, one-card management system and the production of biometric verification SDK which was initially widely applied in PC security, time attendance and identity authentication fields.
Q4: Any payment method are acceptable?
Reply: T/T, PayPal and .
Q5: Can we print our brand name for OEM?
Reply: Logo printed and client customization are our expertise for ordering at our MOQ.
Q6: Can we get some samples?
Reply: We are honored to offer samples for your evaluation.
Q7: How does your factory QC?
Reply: Quality check is our first priority for our customers without any careless.
Furthermore, Timmy Technology has been recognized as a "National High-tech Enterprise" for 3 consecutive years, passed ISO9001 certification, and the products have passed FCC/CE/ROHS certification, etc
Should you have any inquiry, feel free to contact us
Face recognition machines Warranty
Timmy warrantees all the hardware products to be free from manufacturing defects. It also warrants this hardware product against defects in materials and workmanship that result in a material deviation from the applicable published Timmy technical specifications or customized specifications for that particular client.
Our products are sold all over the world, you can rest assured.
