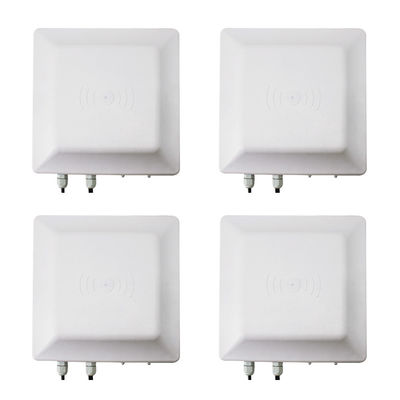

Long Distance RFID Card Access Control Tag Passive Reading Antenna UHF Reader
Long Distance Tag Passive Reading Antenna RFID Card Access Control UHF Reader
RFID Card Access Control Features
1. Support ISO18000-6B and EPC Class1 GEN2 international standards;
2. Integrated structure design, beautiful appearance, suitable for outdoor environment;
3. Integrate high-performance linear polarized antennas, Recognize the long range distance stably;
4. Supports tag echo signal detection, tag data filtering, clock stamping, and input and output functions;
5. Recognition speed is fast, and the identification of single label can reach 140 times/second;
6. Adopt frequency hopping working mode, strong anti-interference ability and high recognition sensitivity;
7. Support sp) development in multiple languages, such as VC, VB, C, etc.
RFID Card Access Control Specification
| Model Number |
TU-805 |
| Supported protocols |
ISO18000-6B,ISO18000-6C(EPC GEN2) |
| working frequency |
ISM 902～928MHz and ISM 865～868MHz,Other frequency standards (customized) |
| Operation mode |
Fixed Frequency or Software Programmable |
| RF power |
0~30dBm,Software Programmable |
| Reading speed |
Single card average reading is 64bits, less than 6ms,Software Programmable |
| Work mode |
reading Active and reading passive, Software Programmable |

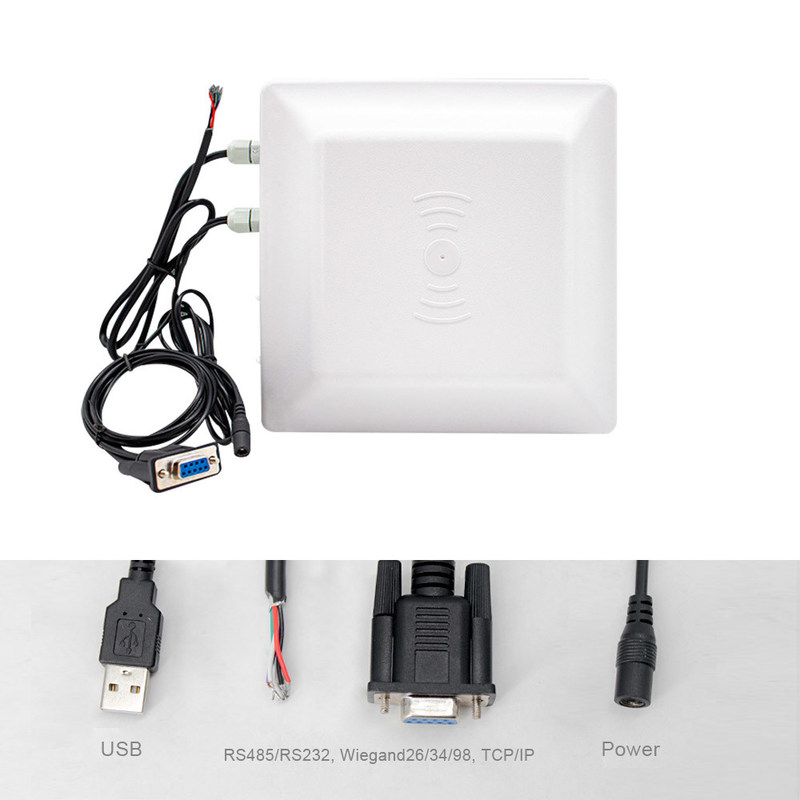

| Communication Ports |
N:Wiegand26/34/98, RS485,RS232 ,USB E:Wiegand26/34/98, RS232,TCP ,USB |
| Input interface |
1 way trigger input |
| Reading range |
0-5 m(High power 0~8m) |
| Status indicators |
buzzer |
| Antenna |
7dbi circular antenna |
| Power supply |
DC＋9V |
| Size |
215mm×215mm×50mm |
| Weight |
0.8 Kg(Package:1.8kg) |
| Operation Temp |
-20℃~+70℃ |
RFID Card Access Control Introduction
TU-805 supports online upgrades, has a rich communication interface, and can be customized to the needs of users.
RFID Card Access Control FAQ?
Q1: Are you are real factory:
Yes, our factory is based in Shenzhen China and we've been in this industry for 20 years.
Q2: Can we get free sample?
For first sample order, it's not free, but all sample cost will be returned to buyer in the next bulk order.
Q3: How long is your warranty?
Normally warranty period is one year.
Q4: Can you print customer's logo?
Yes, for device silkscreen, we can print your logo free if your quantity reaches 200pcs.
Q5. What about after sales service about device using?
We have international technician team and we can have online communication via Skype, Whatsapp, Wechat or any other social media.
