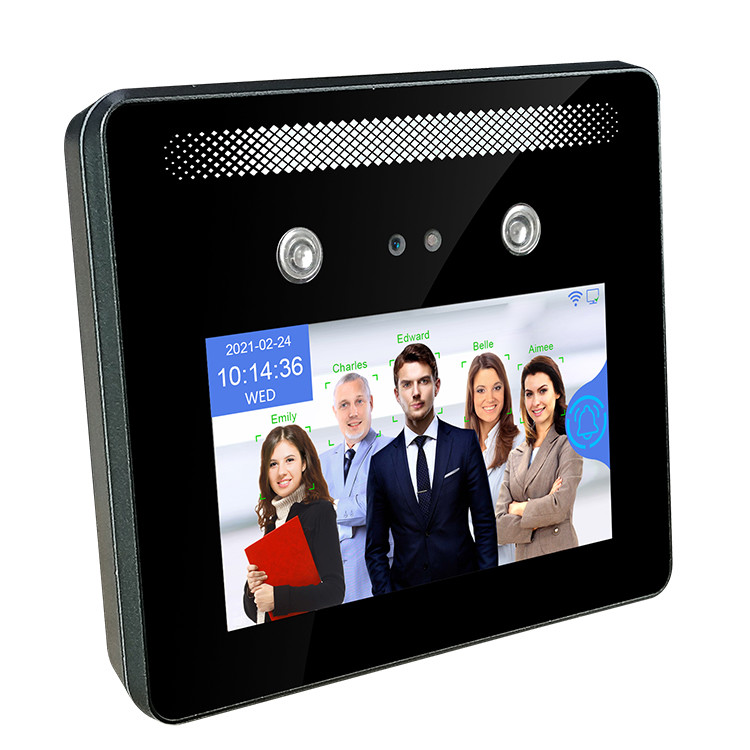

WDR Dynamic 5.0 Inch Face Recognition Attendance Machine Cloud SDK NPU

WDR Dynamic 5.0 Inch Face Recognition Attendance Machine Cloud SDK NPU

  • High Light

    5.0 Inch Face Recognition Attendance Machine


    WDR Dynamic Face Recognition Attendance Machine


    WDR Dynamic face reader attendance machine

  • Display
    5.0 Inch Touch Screen
  • Face Capacity
    5000(10000/50000 Optional)
  • Card Capacity
    5000(10000/50000 Optional)ID Standard,IC Optional
  • Record Capacity
  • Binocular Camera
    2MP Colorful WDR+200W Infrared Live Camera
  • Language
    English/Spanish/Turkish/Arabic/Vietnamese And So On
  • WG
    Wiegand 26/34 Output
  • QR Code Scanner
  • Operation System
    Linux 3.10
  • Recognition Speed
    ≤0.2s,single User/multi User( Max 5 Users) Recognition At Same Time
  • Place of Origin
    Shenzhen, Guangdong
  • Brand Name
  • Certification
    CE FCC RoHs
  • Model Number
  • Minimum Order Quantity
    1pcs (sample)
  • Price
  • Packaging Details
    12pcs/ctn 630*430*548mm /ctn
  • Delivery Time
    5-10 work days
  • Payment Terms
    D/A, D/P, T/T, ,Paypal
  • Supply Ability
    10000pcs Per month

WDR Dynamic 5.0 Inch Face Recognition Attendance Machine Cloud SDK NPU

WDR Dynamic 5.0 Inch Face Recognition Attendance Machine Cloud SDK NPU


AI Visible Light and WDR Dymaic Face Recognition Attendance Machine Cloud SDK NPU



The NPU is not a test item, but a network processor. You can think of this as a component (or subsystem), and sometimes it can be called an NPU coprocessor. The embedded neural network processor (NPU) adopts a "data-driven parallel computing" architecture, and is particularly good at processing massive multimedia data such as videos and images,It is a neural network that imitates humans and can learn deeply.


Desktop software is a professional software that integrates personnel, attendance, and access control.
1. Supports access database and MS SQL database.
2. Friendly interface and simple operation.
3. Personnel pictures can be added to the software and uploaded to the machine.
4. Access control functions are complete (access control period, personnel grouping).
5. Personnel identification is possible. Snap pictures and upload them to the system in real time.
6. The attendance function is perfect, suitable for the attendance needs of small and medium enterprises


Face Recognition Attendance Machine Specification:


TM-AI05 is widely used as attendance and access control equipment in government agencies, intelligent building buildings, office buildings, high-end real estate communities, colleges and universities, enterprises and institutions, industrial and mining enterprises, etc.
Product name TM-AI05 Dynamic Face Recognition Time Attendance and Access Control Terminal
Screen 5.0 Inch IPS Touch Screen, HD 1280*720
Keypad Touch keypad
Operation system LINUX 3.10
CPU,NPU 1.2G Dual-Core ARM Cortex-A7, 600G (0.6T)
ROM eMMC Flash 4GB
Binocular camera Real Sensor 1/2.9 inch FOV 75° 200W pixel high-definition color camera WDR wide dynamic

Sensor 1/5 inch FOV 75°200W pixel infrared live camera
Live detection Dynamic dual-camera anti-counterfeiting, to prevent all kinds of black-and-white, color photos and videos from deception
Logs capacity 500000
Face Registration Local operation: Enroll face with machine, import user photo with U disk
Software operation: Import user photo to software, capture user photo with camera
Verification Dynamic face recognition, password, ID Card, QR Code, IC card optional
Face capacity 5000 (20000 optional)
Card Capacity 5000 (20000 optional), ID Card Standard, IC Card Optional
Password Capacity 5000 (20000 optional)
Face Recognition Accuracy 99.70%
Recognition Speed ≤0.2s, support single user/multi user(at most 5 users) recognition at same time
Recognition Distance 0.5~2.5 meters (0.5~1.5 meters with live face recognition on)
Prevent Photo Dual camera anti-counterfeiting, prevent recognition with photo/video
Principle of Identification Face algorithm technology of multi-task cascaded convolutional neural network based on
video stream for dynamic face detection, tracking and recognition
WDR Wide dynamic range, support accurate face recognition under Strong light, dark light and backlight
Supports simultaneous recognition of up to 5 people, face tracking, face capture

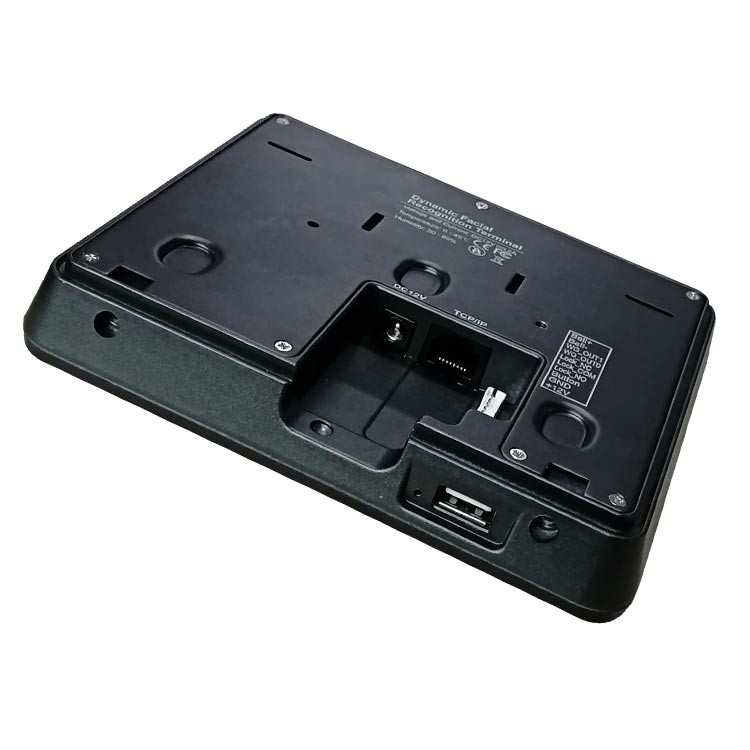

USB USB2.0x1,Support U disk import/export data
Power supply DC12V interface x 1
Speaker Interface Reserved for extended Speaker Interface
Network Communication TCP/IP, Support C/S LAN communication, Wifi (optional)


WDR Dynamic 5.0 Inch Face Recognition Attendance Machine Cloud SDK NPU 0


Face Recognition Attendance Machine:


Q2: How many days can I get the products if I placed purchase order?
Reply : In general, about 1-3 working days for Sample and ready stock;
15 working days for production order after receving order deposit.

Q3: Which payment can be accepted?
Reply: T/T, Paypal, and L/C etc.

Q4: When did you start?
Reply : We have started our factory from year 2000, and we have experience of producing and developing Biometric attendance and access control terminals for more than 15 years. All of our engineers are professors in this area.

Q5: Can I get some samples?
Reply: We are honored to offer you samples, you can send E-mail to us or contact us to require samples. It's convenient for you, so please do not hesitate to contact us if you need a sample.

Q6: Can I print my Logo?
Reply:No problem, Logo printed is free for order of more than 100pcs. OEM is acceptable.
