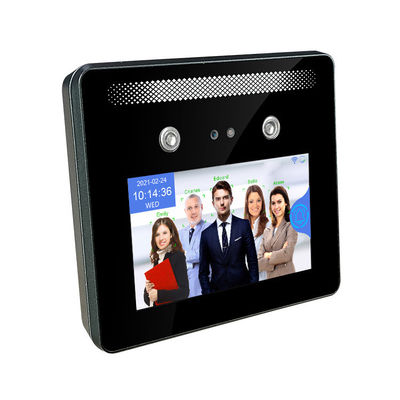

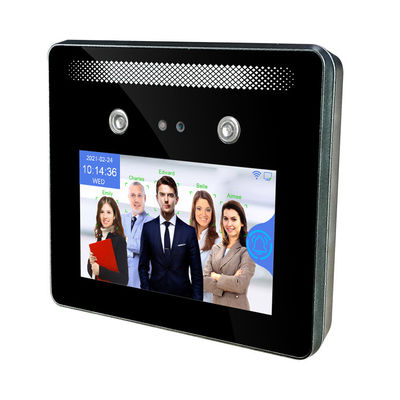

AI Face Multiple People Face Recognition Biometric Time Attendance
Multiple Faces Recognition Time Recorder QR Code Card Recognition Access System Software
It is a time attendance and access control machine support face recognition, RFID card, password, 5-inch touch screen, TCP/IP, USB and Wifi.
Face Recognition Machines Features
Face recognition machines Specification
|
Product name |
AI Face Multiple People Face Recognition Biometric Time Attendance |
|
Screen |
5-Inch, HD 1280*720, Capacitive Touch Screen |
|
Keypad |
Touch keypad |
|
Operation system |
LINUX 3.10 |
|
CPU,NPU |
1.2G Dual-Core ARM Cortex-A7, 600G (0.6T) |
|
RAM |
256MB DDR3 |
|
ROM |
4GB eMMC Flash |
|
Binocular camera |
200W Colorful WDR+210W Infrared live camera |
|
Logs capacity |
500,000 |
|
Face Registration |
Local operation: Enroll face with machine, import user photo with U disk |
|
Software operation: Import user photo to software, capture user photo with camera |
|
|
Verification |
Dynamic face recognition, password, ID/IC card optional |
|
Face capacity |
5,000 (20,000/50,000 optional) |
|
Card Capacity |
5,000 (20,000/50,000 optional), ID Card Standard, IC Card Optional |
|
Password Capacity |
5,000 (20,000/50,000 optional) |
|
Face Recognition Accuracy |
99.70% |
|
Recognition Speed |
≤0.2s, support single user/multi user(at most 5 users) recognition at same time |
|
Recognition Distance |
0.5~2.5 meters (0.5~1.5 meters with live face recognition on) |
|
Prevent Photo |
Dual camera anti-counterfeiting, prevent recognition with photo/video |
|
Principle of Identification |
Face algorithm technology of multi-task cascaded convolutional neural network based on |
|
|
video stream for dynamic face detection, tracking and recognition |
|
WDR |
Wide dynamic range, support accurate face recognition under Strong light, dark light and backlight |
|
USB |
USB2.0x1,Support U disk import/export data |
|
Power supply |
DC12V interface x 1 |
|
Speaker Interface |
Reserved for extended Speaker Interface |
|
Network Communication |
TCP/IP, Support C/S LAN communication, Wifi (optional) |
|
Free Attendance sofware |
Support exporting excel attendance report with U disk |
|
Shift |
Support shift setting and importing shift schedule with U disk |
|
Management Software |
Support PC software to manage data through network connection with equipment |
|
Access Control Function |
Door unclosed alarm, forced door opening alarm, alarm linkage and output, one set of door opening signals, |
|
one set of alarm signals, time permission control, connect external access control reader, |
|
|
Wiegand 26/34 output |
|
|
Environmental adaptability |
Working temperature: -15C~+45°C (storage temperature -40C~+65°C), |
|
Working humidity: 20% ~90% (storage humidity 20%~90+2%), |
|
|
Dark enviroment: LEDSoft light automatic fll light (Automatic control according to ambient light) |
|
|
Ambient light adaptation range: 0-50000Lux |
|
|
Muti language |
English, Spanish, Arabic, Thai, Farsi, Portuguese, French, Italian, Japanese, Korean, etc |
|
Broadcase and ring |
Support display name, voice broadcase name, builtin bell ring |
|
Automatic fill light |
Support infrared fill light, the white fll light automatically lights up when face is captured in dark light |
|
Working Current |
stand-by current: 310mA , Working current: 520mA |
|
QR Code Scanner |
Support |
|
Working Voltage |
DC12V |
|
Installation Way |
Standard: Wall mount, desktop stand; Optional: bracket for turnstile, floor stand |
|

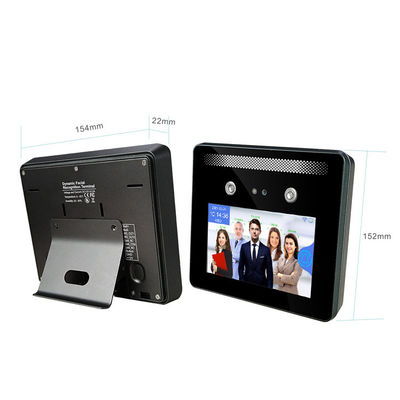

Device Dimension |
133x155x25.5mm |
|
Color box dimension |
214x214x94mm |
|
Carton dimension |
Size: 480x438x229mm,12Kg/carton, 10台 /carton |
Face recognition machines FAQ
Q: 1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q: 2. What is the lead time?
A: Sample needs 1-3 days, mass production time needs 10-25 days for order less than 5000 pcs. Time is negotiable.
Q: 3. Do you have any MOQ limit?
A: No. 1pc is our MOQ.
Q: 4. How do you ship the goods and how long does it take arrive?
A: Sample order, we usually suggest the shipping by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. To bulk order air or sea shipping is suggested.
Q: 5. What is the warranty for the products?
A: Yes, we offer 1 year warranty for the products.
Q: 6. How is your after-selling service?
A: We have after-sales technical team, provide 24 hours online technical support.
Q: 7. Do you supply OEM service?
A: Yes, We support OEM like logo printing or box customization on quantity of hundreds.
Should you have any inquiry, feel free to contact us
Face recognition machines Warranty
Timmy warrantees all the hardware products to be free from manufacturing defects. It also warrants this hardware product against defects in materials and workmanship that result in a material deviation from the applicable published Timmy technical specifications or customized specifications for that particular client.
