Multi Person Wireless Biometric Face Attendance Machine Access Control System

Multi Person Wireless Biometric Face Attendance Machine Access Control System

  • High Light

    Wireless Biometric Face Attendance Machine

    ,

    multi person Biometric Face Attendance Machine

    ,

    3m face scanner attendance system

  • Screen
    5-inch HD 720P IPS Touch Screen
  • Identification Mode
    Face/Fingerprint/PIN/Card/combination
  • Special Features
    Motion Detection, HD Touch Screen, HD Color Camera, Night Vision
  • Fingerprint Capacity
    10,000
  • Record Capacity
    500,000
  • Detection Range
    0.5-3m
  • Wiegand In/Out
    Lock Combination, Double Door Interlock, Anti-pass Back.
  • System
    Access Control System
  • Type
    Biometric Time Recording,face Recognition Machine
  • Biometric Measurement
    Face,Fingerprint
  • Communication
    TCP/IP,WIFI
  • Product Name
    Biometric Access Control Time Attendance Machine,face Recognition Biometric Machine
  • Name
    Biometric Fingerprint Reader
  • Item
    Biometric Attendance System,biometric Fingerprint Face Recognition Time Attendance System
  • Place of Origin
    China
  • Brand Name
    TIMMY
  • Certification
    RoHS, CE, FCC
  • Model Number
    TM-AI07F
  • Minimum Order Quantity
    1pcs (sample)
  • Price
    Negotiable
  • Packaging Details
    Export packing: 28*20*10 cm G.W. 2 Kg
  • Delivery Time
    Sample order 2~3 working days; Bulk order 6~12 working days
  • Payment Terms
    T/T, , Payal
  • Supply Ability
    1000 pcs per week

Multi Person Wireless Biometric Face Attendance Machine Access Control System

Multi Person Wireless Biometric Face Attendance Machine Access Control System



HD Screen WiFi Dynamic Facial And Fingerprint Recognition Access Control Time Attendance Machine



Linux Based Visible Light Facial and fingerprint Recognition With Wireless WiF



Enhanced Visible Light Facial Recognition with brighten LED. Masked individual identification increases FAR. Multiple verification methods: Face/Fingerprint/Card/Password. Built-in ID reader of 125KHz, Optional 13.56MHz IC(MF) card. Professional web based management software. Free SDK for integration............



Face Recognition Machines Features

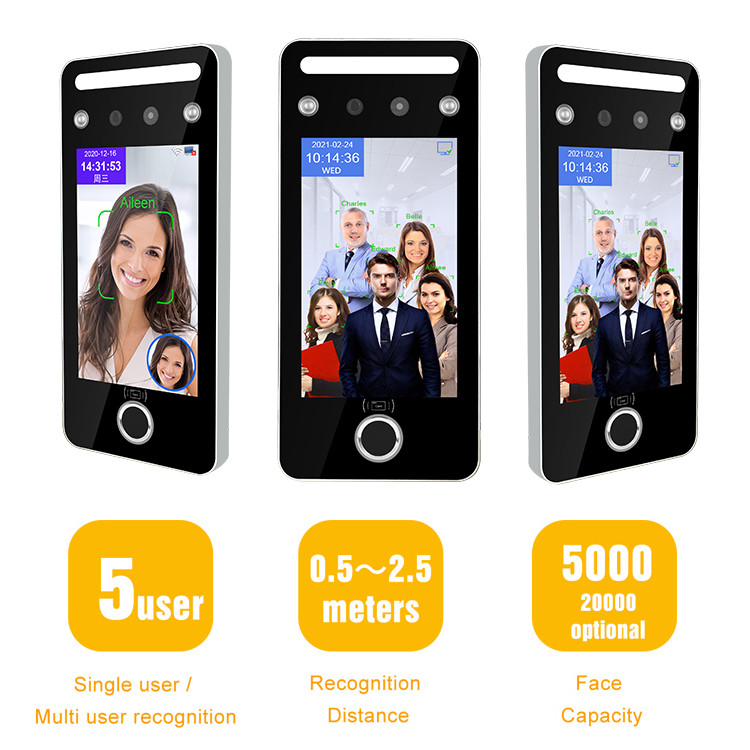

  1. Support multi person face recognition with 5 persons at same time (Single person or multi person recognition are selectable)
  2. Support WDR (wide dynamic range), with good performance. It can be detected under a strong light, dark light and backlight environment
  3. Support mask detection
  4. Support capture stranger's if he appears in the camera
  5. Display user enrolled the registraters' photo.
  6. Support the setting of face recognition distance: close (around 0.8m), middle (around 1.5m), far (around 2~3m)
  7. Support lock screen mode function, the machine needs to be activated for face recognition
  8. Interface output: lock control output, bell output, doorbell output. Wiegand output, alarm output

  9. Interface input: door open button input, Wiegand input, fire protection linkage input, door sensor input, Tamper proof.

  10. Support TTS (Text To Speech) prompt voice in English & Chinese name

Face recognition machines Specification



Multi Person Wireless Biometric Face Attendance Machine Access Control System 0

  Specification:

Product name
Timmy Wireless Facial Time Attendance Rfid Face and Fingerprint Recognition Access Control
Screen
5.0 Inch, HD 1280*720, Capacitive Touch Screen
Keypad
Touch keypad
Operation system
LINUX 3.10
CPU,NPU
1.2G DuaI-Core ARM Cortex-A7, 600G(0.6T)
RAM
256MB DDR3L
ROM
eMMC FIash 4GB
BinocuIar camera
200W CoIorfuI WDR+200W Infrared Iive camera
Logs capacity
500,000
Face Registration
LocaI operation: EnroII face with machine, import user photo with U disk Software operation: Import user photo to software,
capture user photo with camera
Verification
Dynamic face recognition, password, ID/IC card optionaI
Face capacity
5,000 (50,000 optionaI)
Fingerprint Capacity
10,000 (50,000 optionaI)
Card Capacity
5,000 (50,000 optionaI)
Password Capacity
5,000 (50,000 optionaI)
Face Recognition Accuracy
99.70%
Recognition Speed
≤0.2s, support singIe user/muIti user(at most 5 users) recognition at same time
Recognition Distance
0.5~2.5 meters (0.5~1.5 meters with Iive face recognition on)
Prevent Photo
DuaI camera anti-counterfeiting, prevent recognition with photo/video
PrincipIe of Identification
Face aIgorithm technoIogy of muIti-task cascaded convoIutionaI neuraI network based on video stream for dynamic face detection,
tracking and recognition
WDR
Wide dynamic range, support accurate face recognition under Strong Iight, dark Iight and backIight
USB
USB2.0 x 1 ,Support U disk import/export data
Power suppIy
DC12V interface x 1
Speaker Interface
Reserved for extended Speaker Interface
Network Communication
TCP/IP, Support C/S LAN communication, Wifi (optionaI)
Free Attendance software
Support exporting exceI attendance report with U disk
Shift
Support shift setting and importing shift scheduIe with U disk
Management Software
Support PC software to manage data through network connection with equipment
Access ControI Function
Door uncIosed aIarm, forced door opening aIarm, aIarm Iinkage and output, one set of door opening signaIs, one set of aIarm signaI, time permission controI, connect externaI access controI reader, Wiegand 26/34 output/input
EnvironmentaI adaptabiIity
Working temperature:-15℃ ~+45℃ (storage temperature -40℃~+65℃),
Working humidity: 20%~90% (storage humidity 20%~90±2%),
Dark enviroment: LED Soft Iight automatic fiII Iight (Automatic controI according to ambient Iight) Ambient Iight adaptation range:0-50,000 Lux
MuIti Ianguage
EngIish, Spanish, Arabic, Thai, Farsi, Portuguese, French, ItaIian, Japanese, Korean, etc
Broadcast and ring
Support dispIay name, voice broadcast name, buiIt-in beII ring
Automatic fiII Iight
Support infrared fiII Iight, the white fiII Iight automaticaIIy Iights up when face is captured in dark Iight
Working Current
stand-by current:310mA , Working current: 520mA
QR Code Scanner
Support
Working VoItage
DC12V
InstaIIation Way
Standard: WaII mount, desktop stand; OptionaI: bracket for turnstiIe, fIoor stand
Machine Dimension
188x80x20 mm



Face recognition machines FAQ



Q1: Are you a factory or a trade company?
Reply :We are a factory located in Shenzhen, China, welcome to visit our factory at any time.

Q2: How many days can I get the products if I placed purchase order?
Reply : In general, about 1-3 working days for Sample and ready stock;
15 working days for production order after receving order deposit.

Q3: Which payment can be accepted?
Reply: T/T, Paypal, and L/C etc.

Q4: When did you start?
Reply : We have started our factory from year 2000, and we have experience of producing and developing Biometric attendance and access control terminals for more than 15 years. All of our engineers are professors in this area.

Q5: Can I get some samples?
Reply: We are honored to offer you samples, you can send E-mail to us or contact us to require samples. It's convenient for you, so please do not hesitate to contact us if you need a sample.

Q6: Can I print my Logo?
Reply:No problem, Logo printed is free for order of more than 100pcs. OEM is acceptable.

Q7: How does your factory do regarding QC?
Reply:Quality is priority, we are always pay more attention on quality controlling from the very beginning to the very end. What's more, our company got CE, FCC, ROSH, China policy system certificates of all products.


If you have any inquiry, feel free to contact us





Face recognition machines Warranty



Timmy warranties all the hardware products to be free from manufacturing defects. It also warranty this hardware product against defects in materials and workmanship that result in a material deviation from the applicable published Timmy technical specifications or customized specifications for that particular client.all model has 1 years warranty and get CE/FCC/Rohs Certificate.
