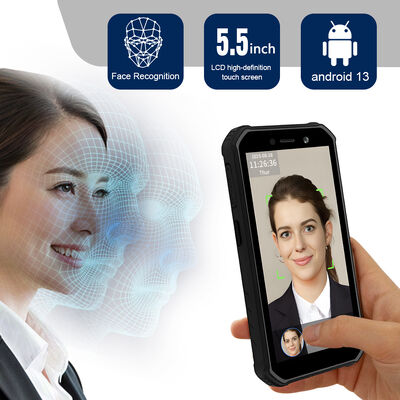

5.5-inch Handheld Face Recognition Attendance Machine
Product Introduction:
The SI-HF2 handheld facial recognition device is specially designed for mobile attendance. Relying on deep learning facial recognition algorithms, it achieves rapid and accurate recognition. Portable and flexible, it supports offline operation, breaks through the limitations of fixed scenarios, and can maintain stable attendance even when the network is poor. It also features outstanding three-proof performance and super strong pressure resistance, adapting to harsh environments and maintaining long-term stable operation, providing reliable support for the management of personnel in complex mobile projects.
Application Scenarios:

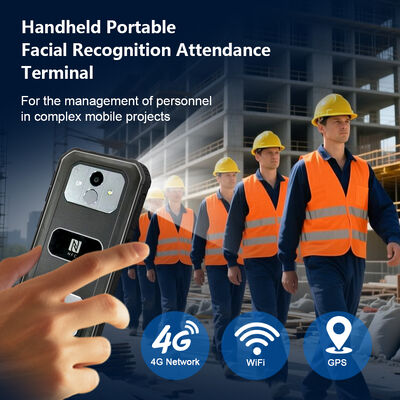

SI-HF2 is widely used in: construction industry, logistics and warehousing industry, property security industry, retail chain industry, outdoor education and training industry, medical and public service industry, prison personnel check-in, event and competition organization and other places with scattered personnel, strong mobility and unfixed operation areas, as a dynamic attendance management device.
Product Features:
l CPU Unisoc T606 8-coe 1.6GHz 12nm high-performance processor, fast and smooth experience, RAM: 4G, ROM: 16G
l Industrial-grade design with stable performance and smooth lines
l 5.5-inch LCD high-definition touch screen with a resolution of 720*1440 pixels

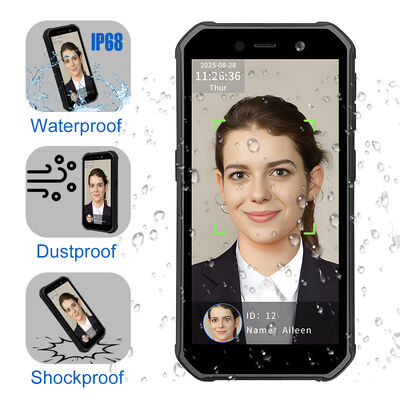

l Three-proof property (IP68)
l OS: Android 13
l Built-in face recognition algorithm, with a face recognition speed of less than 0.5 seconds;
l Supports facial recognition, card swiping and password verification, supports 5,000 users and 500,000 records.
l Built-in 5050mAh large-capacity lithium battery for super long battery life
l Front and rear ultra-high-definition dual cameras (8 million +13 million pixels);
l Ready to use upon startup, portable and convenient
l Supporting our desktop version of attendance management software and cloud platform attendance management software
l Providing communication SDK to support third-party docking
l Providing a secondary development environment for the Android platform and support customers in developing their own apps for application.
Technical Parameters:
|
Product Model: SI-HF2
|
|
Hardware Parameter
|
|
CPU
|
Unisoc T606 8-coe 1.6GHz 12nm
|
|
RAM
|
4GB
|
|
ROM
|
64GB
|
|
Camera
Camera
|
Front camera: 8 megapixels
|
|
Rear camera: Sony 13 million pixels
|
|
Display
|
5.5-inch LCD high-definition touch screen, 720*1440 pixels
|
|
Battery Capacity
|
5050mAh large-capacity lithium battery
|
|
Expansion Slot
|
2Nano-SIM card, 1expandable TF card (supporting Micro SD card up to 128G)
|
|
2G/3G/4G
|
2G:GSM85090018001900
3G:WCDMA: B1/5/8
4G:FDD:B1/3/5/7/8/20/28A/TDD:B38/40/41
or FDD B2/4/5/7/17 (optional)
|
|
Wi-Fi
|
Support 802.11a/b/g/n wireless protocol
|
|
Bluetooth (backup)
|
BT 4.2
|
|
GPS
|
GPS, AGPS, Glonass, BEIDOU
|
|
NFC
|
Supported
|
|
USB
|
Type C(USB flash drive data import and export)
|
|
TF card
|
Supports Micro SD card, with a maximum capacity of 128G (card not included as standard).
|
|
Speaker
|
Supported
|
|
Microphone
|
Supported
|
|
TTS
|
Supported
|
|
Side Buttons
|
Power button, volume +/- buttons
|
|
Overall Dimension
|
155.32*77*14.05mm
|
|
Overall Weight
|
220g
|
|
Waterproof Rating
|
IP68/CE/Mil-STO 810g/ MSDS/ UN38.3
|
|
Parameters of face recognition algorithm
|
|
|
Recognition angle
|
Less than 0.5 second
|
|
Recognition distance
|
Approximately 20 degrees up, down, left, and right is optimal.
|
|
Recognition rate
|
0.3m~1m
|
|
Misidentification rate
|
≥99.9%
|
|
False Recognition Rate
|
≤0.001%
|
|
Attendance Firmware:
|
|
|
OS
|
Android 13.0
|
|
Language
|
Chinese, English (standard, multiple languages can be customized)
|
|
User Capacity
|
5000 pieces
|
|
Face Capacity
|
5000 pieces
|
|
Card Capacity
|
5000 pieces
|
|
Password Capacity
|
5000 pieces
|
|
User Records (entry)
|
500,000 entries(20,000 records with photos.)
|
|
Verification Method
|
Dynamic face recognition, password
|
|
Recognition Mode
|
1:N
|
|
Recognition Display
|
Name, employee ID
|
|
Face Recognition Time
|
Less than 0.5 second
|
|
Optimal Handheld Recognition Distance
|
0.6m
|
|
Data Communication
|
|
|
Network
|
GSM/WCDMA/LTE
|
|
WIFI
|
802.11a/b/g/n; supporting WIFI hotspot
|
|
location
|
GPS,AGPS,Glonass,BEIDOU
|
|

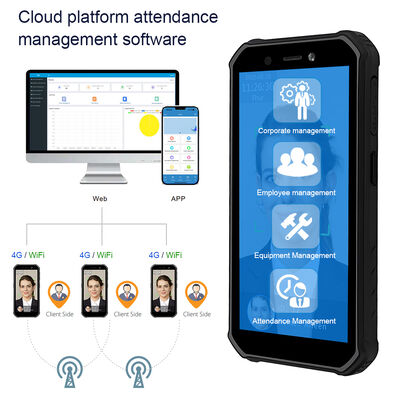

Software
|
|
|
Public cloud platform
|
Free
|
A professional public cloud platform integrating personnel management and attendance tracking.
1. Alibaba Cloud servers offer fast processing speed and high security.
2. Registration information and attendance data are synchronized to the cloud server in real time without manual operation.
3. Multiple devices can be interconnected across different locations, and managed uniformly by the headquarters.
4. Employees can check their attendance status through the APP, and administrators can view the attendance of all employees
|
