Employee Face Recognition Attendance Machine Temperature Detection

Employee Face Recognition Attendance Machine Temperature Detection

  • High Light

    RoHS Face Recognition Attendance

    ,

    0.5m Face Recognition Attendance

    ,

    0.5m Employee Attendance Machine

  • Face Capacity
    5,000
  • Transactions
    500,000
  • Fingerprint Capacity
    10,000
  • Camera
    Dual Cameras 2M Pixel HD Color; 2M Infrared Camera
  • Display Size
    5-Inch HD IPS Touch Screen
  • Operation System
    Linux System 3.10
  • Communication
    TCP/IP / Wi-Fi / USB Flash Drive
  • Access Control Interface
    Lock Relay Output / Alarm Output / Exit Button
  • Temperature Measurement Distance
    0.5m
  • Data Storage
    Cloud, Memory, Locally In Machine Or PC
  • Place of Origin
    China
  • Brand Name
    TIMMY
  • Certification
    CE, RoHS
  • Model Number
    TM-AI03FT
  • Minimum Order Quantity
    1pcs (sample)
  • Price
    Negotiable
  • Packaging Details
    Export packing: Outer Box /10 units 60*43.8*23(cm) G.W: 20 Kgs
  • Delivery Time
    Sample order 2~3 workdays; Bulk order 6~12 workdays
  • Payment Terms
    T/T, , Payal
  • Supply Ability
    3000pcs per week

Employee Face Recognition Attendance Machine Temperature Detection

Employee Face Recognition Attendance Machine Temperature Detection



Employee Face Attendance Machine Fingerprint Temperature Detection Scanner

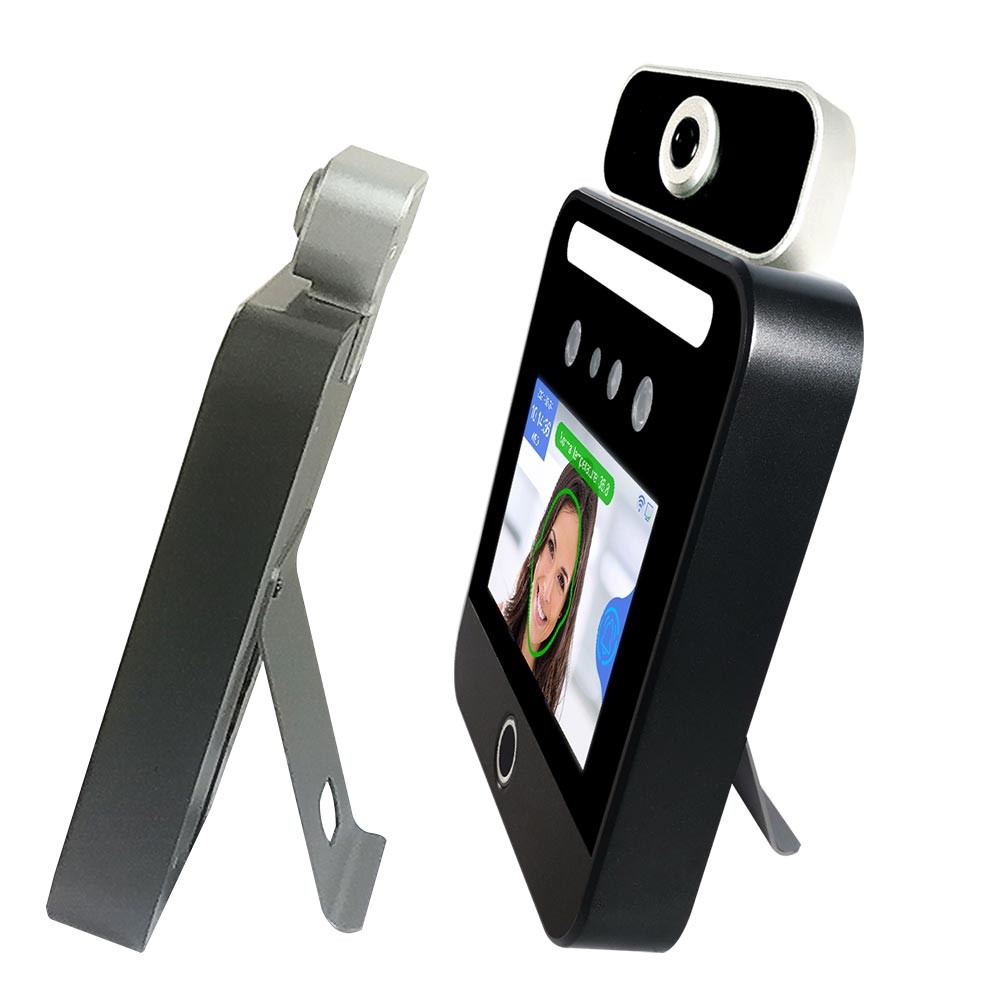

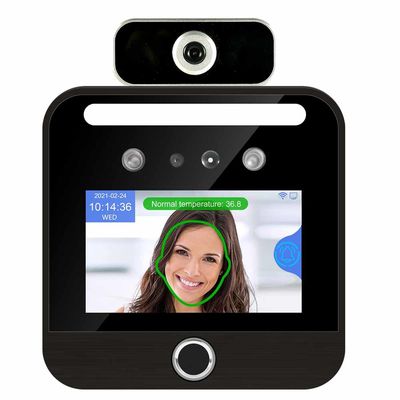

TM-AI03FT is a Linux Based Visible Light Facial and fingerprint Recognition Temperature Measurement Device


Enhanced Visible Light Facial Recognition with 6 pieces of brighten LED. Support WDR with good performance under strong light, dark light and backlight environment. Multiple verification methods: Face/Fingerprint/Card/Password. Built-in ID reader of 125KHz, Optional 13.56MHz IC(MF) card. Professional web based management software. Recognition distance: 0.5-2.5 meters.

Face Recognition Temperature Scanner Features:

  1. Support multi-person face recognition with 5 persons at the same time (You can set in the menu to choose a single person or multi-person recognition)

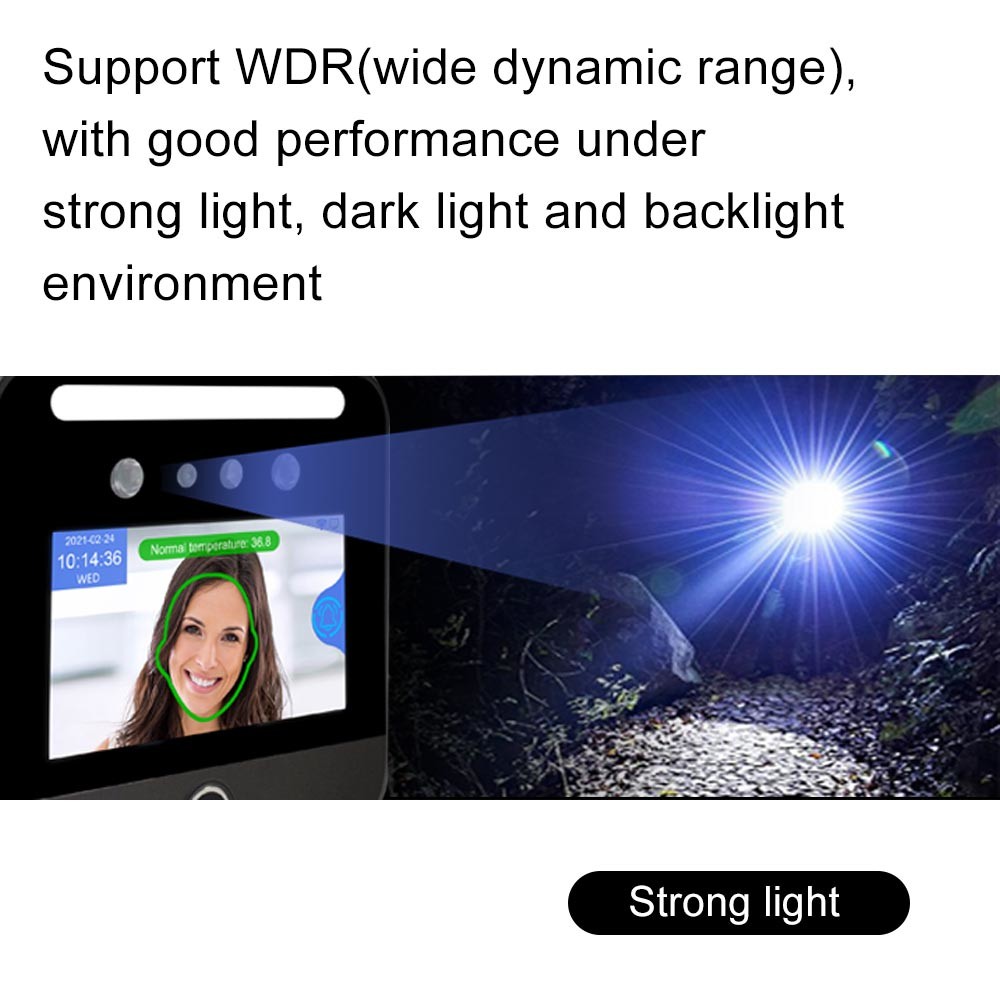

  2. Support WDR (wide dynamic range), with good performance under strong light, dark light, and backlight environment
  3. Support mask detection (you can set in machine Yes/No)
  4. Support capture stranger's face if he appears in the camera
  5. Display user enrolled photo when verified face
  6. Support set face recognition distance: close (around 0.8m), middle (around 1.5m), far (around 2~3m)

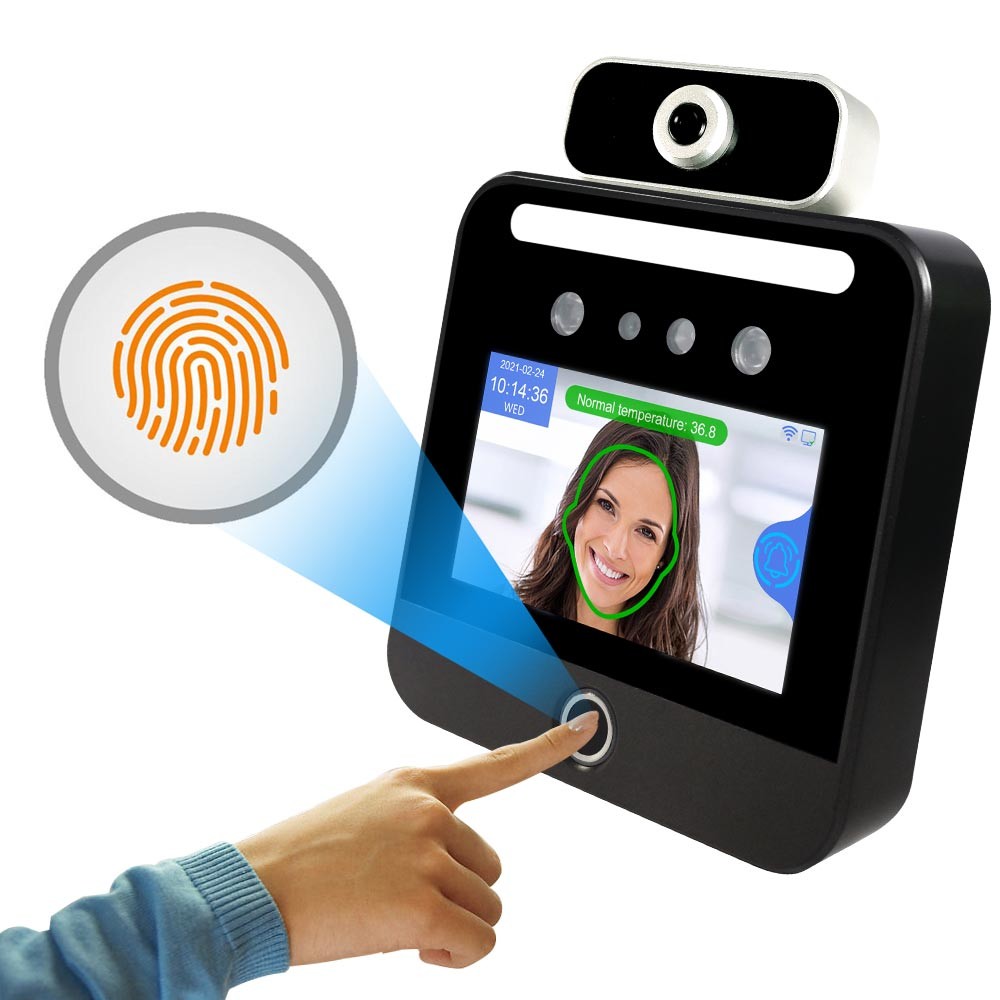

  7. Support lock screen: After the device screen does not uses, the screen will lock. Users have to unlock the screen by using fingerprint detection, activate the screen for face recognition detection.
  8. Support match in server
  9. Support temperature detection

Employee Face Recognition Attendance Machine Temperature Detection 0Employee Face Recognition Attendance Machine Temperature Detection 1Employee Face Recognition Attendance Machine Temperature Detection 2Employee Face Recognition Attendance Machine Temperature Detection 3

Face Recognition Temperature Scanner Specifications



Temperature Detection Support
Temperature Detection Method Melexis (90614DCI) Single point temperature measurement Sensor
Temperature Detection Range 0.5 meters (Detection error: 0.5 ℃ )
CPU Processor 1.2G Dual-Core ARM Cortex-A7
NPU Processor NPU: 0.6T
RAM 256MB DDR3L
ROM 4GB eMMC
Cabinet raw material ABS case
Camera Dual (IMX307) Cameras with 1/2.8" CMOS; Lens: 6 mm 2M Pixel HD Color; 2.1M (GC2145) infrared camera
LED LED Double high power infrared light
Display 5'' HD IPS Screen
Resolution 720*1280
Dimension 154*152*22mm
Exposure compensation Under the strong light, sun light and back light, exposure compensation will be automatically
Communication Support LAN/wifi/u disk connection, support CS desktop version software, real-time data upload, cloud websocket
FRR <0.1%
FAR <0.001%
Power supply DC 12V, 1A~5A
Operating system LINUX 3.10
Language 20 country of languages
Face capacity 5,000
Card capacity 15,000
Finger capacity 10,000
Record Capacity 500,000
Identification stylel Face, Finger,ID Card, PIN or combination
Access Control Interface output: Lock control , doorbell, U-Disk, Wiegand, relay, alarm output.
Interface input: Exit button, Wiegand, fire linkage. Compatible with all our fingerprint machines
Identification Mode 1:1, 1:N
Face recognition time <0.2S
Intelligent function Live face detection
Detection range 0.5-2.5m
Magnetic door support
Alarm output 1 set
WG 1 set WG In, out
Waterproof rating NIL
Installation Environment Indoor
Desktop Software AAS Version 6.8
Cloud Software www.yunatt.com:82
SDK Free SDK


Face Recognition Temperature Scanner FAQ?
Q1: Are you a manufacturer or a trade company?
Reply : Shenzhen Union Timmy Technology Co., Ltd. is one of the leading manufacturers and exporters. We are enjoying an excellent reputation through 20 years’ production experience of time attendance in China.
Q2: How many days can we get the products if placed purchase order?
Reply : In regularly, 1-3 working days for Sample and ready stock;
15 working days for production order after receiving order deposit.
Q3: Which payment method are acceptable?
Reply: T/T, PayPal, and L/C are available.
Q4: When did your company formed?
Reply : Since year 2000, the founders of Shenzhen Union Timmy Technology Co., Ltd. (Timmy Technology) have been striving for independent research and development of biometric verification algorithms, vertical three roller gates, access control system, one-card management system and the production of biometric verification SDK which was initially widely applied in PC security, time attendance and identity authentication fields.
Q5: Can I get some samples?
Reply: We are honored to offer samples for your evaluation.
Q6: Can we print Logo for OEM?
Reply: Logo printed and client customization are our expertise for ordering at MOQ in 100pcs.
Q7: How does your factory do regarding QC?
Reply: Quality check is our first priority for our customers without any careless.
Furthermore, Timmy Technology has been recognized as a "National High-tech Enterprise" for 3 consecutive years, passed ISO9001 certification, and the products have passed FCC/CE/ROHS certification, etc

Should you have any inquiry, feel free to contact us
