15m RS232/485 WG26/34 RELAY Integrated Uhf Rfid Reader Gates / Boom Barriers

15m RS232/485 WG26/34 RELAY Integrated Uhf Rfid Reader Gates / Boom Barriers

  • High Light

    Long distance Uhf Rfid Reader


    Integrated Uhf Rfid Reader


    15m Long Range Rfid Reader

  • Place Of Origin
    Guangdong, China
  • Communication
    WG26/34/98, RS-485/232, USB
  • Verify Mode
    RFID Card
  • Antenna
    8dbi Circular Antenna
  • Working Frequency
    ISM 902 928MHz And ISM 865-868MHz
  • Item Name
    Long Distance Uhf Rfid Reader
  • Frequency
  • Status Indicator
  • Protocol
    ISO 18000-6C
  • Brand Name
  • Place of Origin
  • Brand Name
  • Certification
    CE, RoHS, FCC
  • Model Number
  • Minimum Order Quantity
    1pcs (sample)
  • Price
  • Packaging Details
    Packed in carton with sponge
  • Delivery Time
    Sample order 2~3 workdays; Bulk order 6~12 workdays
  • Payment Terms
    T/T, ,Paypal
  • Supply Ability
    3000pcs per week

15m RS232/485 WG26/34 RELAY Integrated Uhf Rfid Reader Gates / Boom Barriers

15m Epc Gen2 Password RS232/485 WG26/34 RELAY Uhf Rfid Intergrated Reader Gates/ Boom Barriers


SM15 is a high performance UHF RFID integrated reader. It is designed upon fully self-intellectual property. Based on efficient DSP algorithm, it supports fast tag read/write operation with high identification rate. It can be widely applied in many RFID application systems such as logistics, access control, anti-counterfeit and industrial production process control system.


♦ Vehicle no-stop toll management (car parking lot)

♦ Logistics and warehouse management

♦ Production flew-line management

♦ Animals' recording management

♦ Products anti-counterfeiting detection

Other field:

♦ Club management

♦ Library management

♦ School and factory access control

♦ Attendance management and more


1. Self-intellectual property;

2. Support ISO18000-6C (EPC C1G2) protocol tag;

3. 865~868MHz, 902~928MHz frequency band (frequency customization optional by Soft);

4. FHSS or Fix Frequency transmission;

5. RF output power up to 30dBm (adjustable);

6. 7dBi circular antenna with effect distance up to 0m~8m*;

7. Support active mode, answer mode, trigger-activating and password work mode;

8. Low power dissipation with single +12V DC power supply;

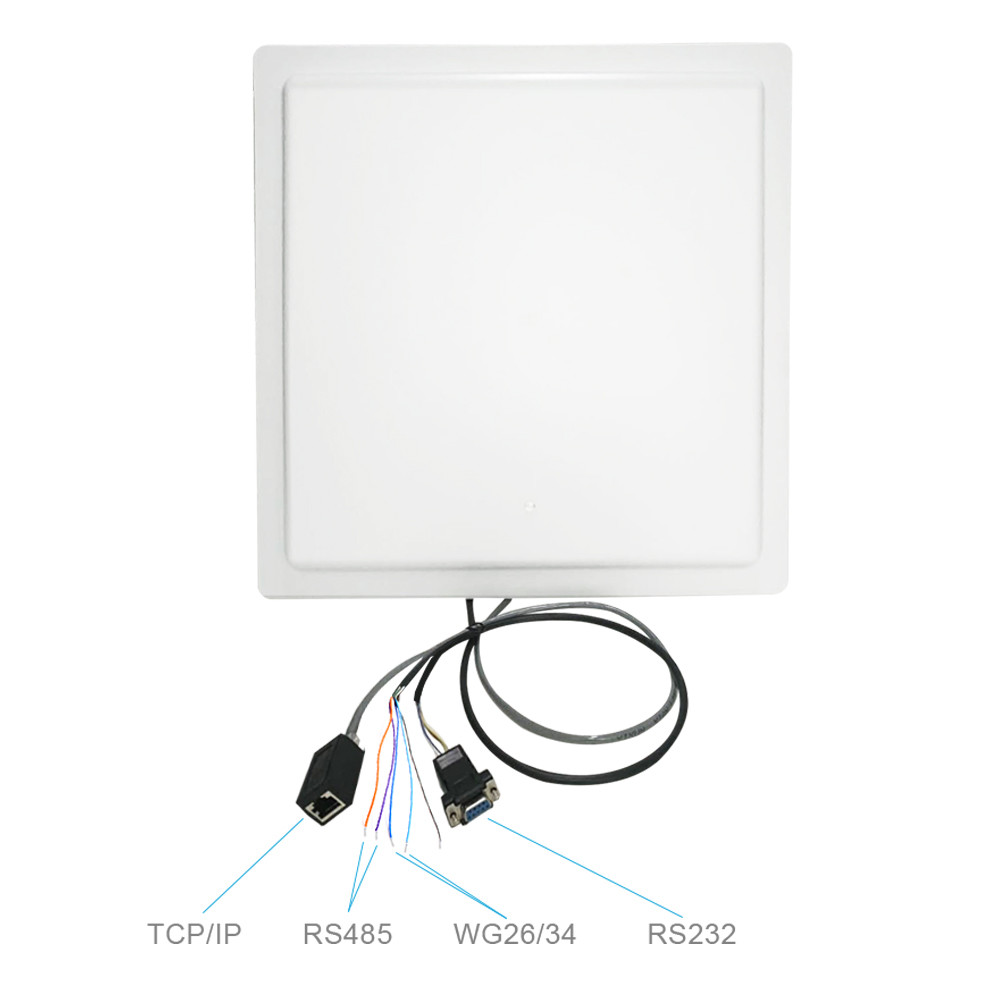

9. Support RS232, RS485, Wiegand interface, Relay, USB, RJ45, WIFI, POE,4G;

10. One Relay (Optional) can control Beep, Motor, Light.

11. Support ModBus (only RS232, RS485, RJ45 interface).

* Effective distance depends on antenna, tag and environment.


Specification Of RFID Card  Access Control:


Electrical Specifications
Freq. Range
Horizontal Beam Width
Vertical Beam Width
F/B Ratio
50 Ω
Max. Power
Waterproof Class
Lightning Protection
Direct Ground
Mechanical Specifications
Rated Wind Velocity
Reflector Material
Radome Color
Radome Material
Operating Temp.


 Feature Of UHF Access Control:


Designed with low power dissipation and high integrated RFID chip solution * Support EU 840~868MHz, US 902~928MHz working frequency (or Customized) * Support EPC Global UHF class 1 gen2 / ISO18000-6C protocol RFID tags. * Optimized multiple tags inventory algorithm, speed is more than 100 per second * FHSS or Fix Frequency transmission * RF output power up to 30dBm (1dbm step adjustable) * Support command, polling and trigger mode * Support EPC, TID and USER inventory in independently or conjunctively * Support IAP firmware upgrading * Low power dissipation with single +12 DC power supply * Support USB, RS232, RS485, Weigand, RJ45(TCP/IP, UDP) and WIFI, 4G at option * Built-in 8 dBi circular polarized antenna with effective distance up to 20 m (adjustable) * Provide DEMO and SDK for development * Support development based on Windows, Android, Linux etc. and C, C#, JAVA etc.

15m RS232/485 WG26/34 RELAY Integrated Uhf Rfid Reader Gates / Boom Barriers 0


Application Of RFID Card Access Control:


UHF rfid card access control uhf reader is widely used in clothing inventory, logistics management, jewelry management, library management, access control security, unmanned retail, smart wearing and other fields


15m RS232/485 WG26/34 RELAY Integrated Uhf Rfid Reader Gates / Boom Barriers 1


 RFID Card Access Control FAQ?

Q1: Are you are trading company or manufacturer factory?

We are the professional manufacturer of Biometric time attendance and access control in Shenzhen, China with 20 years history.


Q2: Can I take free sample for test?

We did not offer free sample, but we can reduce the sample cost from bulk order.

Q3: What kind of OEM can you do for us?

we do support OEM logo putting on device case, Package box, boot up display, even on software interface.


Q43: What is your warranty?
Standard 1 year, but we support giving some free spare parts for repairing as if we did have bulk order cooperation.


Q5. What about your after selling service when i met any question?

We have professional technical support team who can give realtime and convenient service support and instruction online through Email, Skype, Whatsapp, Wechat,etc.
