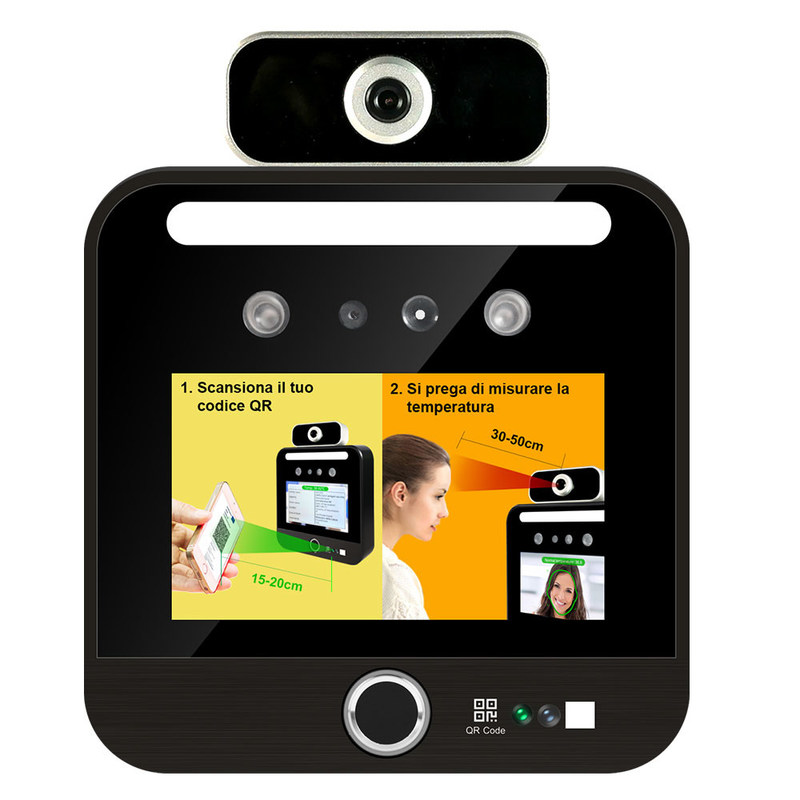

QR Code 5'' IPS Face Scan Temperature Machine Access Control System

QR Code 5'' IPS Face Scan Temperature Machine Access Control System

  • High Light

    5'' IPS Face Scan Temperature Machine

    ,

    TM GP05L Face Scan Temperature Machine

    ,

    TM GP05L Facial Temperature Scanner Kiosk

  • Camera
    Dual Cameras 2M Pixel HD Color; 2M Infrared Camera
  • Face Capacity
    5,000
  • Transactions
    500,000
  • Fingerprint Capacity
    10,000
  • Display Size
    5-Inch HD IPS Touch Screen
  • Operation System
    Linux System 3.10
  • Communication
    TCP/IP / Wi-Fi / USB Flash Drive
  • Access Control Interface
    Lock Relay Output / Alarm Output / Exit Button
  • Languages
    English / Italian / Spanish / Turkish / Portuguese / Korean / Japanese / Etc
  • Temperature Measurement Distance
    0.5m
  • QR Code Scanner
    Support EU DCC
  • Data Storage
    Cloud, Memory, Locally In Machine Or PC
  • Place of Origin
    China
  • Brand Name
    TIMMY
  • Certification
    CE, RoHS
  • Model Number
    TM-GP05L
  • Minimum Order Quantity
    1pc
  • Price
    Negotiable
  • Packaging Details
    Export packing: Outer Box /10 units 60*43.8*23(cm) G.W: 20 Kgs
  • Delivery Time
    Sample order 2~3 workdays; Bulk order 6~12 workdays
  • Payment Terms
    T/T, , Payal
  • Supply Ability
    3000pcs per week

QR Code 5'' IPS Face Scan Temperature Machine Access Control System

QR Code 5'' IPS Face Scan Temperature Machine Access Control System

EU Green Pass QR Code Reader Face Recognition Temperature Measurement Device



TM-GP05L is a newly launched model in ealrlier May of this year and proved that it is very successful.

In according with the requirement of European Union, TM-DP05L is available to scan the the digital green certificate or green pass.
There are three ways to obtain an EU digital COVID certificate:
1) Vaccination
2) Recovered from a SARS-CoV-2 infection
3) Tested negative for COVID-19


Green Pass Scanner Temperature Reader Features:
1. The EU Green Pass code function can be enabled/disabled
2. The temperature measurement function can be enabled or disabled
3. Mask detection function can be turned on/off
4. Can achieve: QR code verification + temperature measurement + mask detection + access control
5. Can achieve: QR code verification+ access control
6. Can set the number of vaccine injections (1~9) for access control
7. Invalid code alarm, access control forbidden to pass
8. Alarm and access control is forbidden to pass if the patient is cured beyond the validity period
9. If it is set to inject 2 doses to pass, then if 1 dose is injected, the access control will alarm and prohibit passage.
10. Can switch the language and voice of EU nations automatically and you can add translation at any time if there is no language library
11. After the epidemic is over, it can return to the normal professional face recognition access control and attendance function
12. Firmware can be upgraded on-line automatically.
13. Can set the capture function, face recognition after saving photos and can export photo files
14. Can export a record file in TXT format for other systems to use or view identification records

QR Code 5'' IPS Face Scan Temperature Machine Access Control System 0
Face Recognition Temperature Scanner Specification


Temperature Detection Support
Temperature Detection Method Melexis (90614DCI) Single point temperature measurement Sensor
Temperature Detection Range 0.5 meters (Detection error: 0.5 ℃ )
CPU Processor 1.2G Dual-Core ARM Cortex-A7
NPU Processor NPU: 0.6T
RAM 256MB DDR3L
ROM 4GB eMMC
Cabinet raw material ABS case
Camera Dual (IMX307) Cameras with 1/2.8" CMOS; Lens: 6 mm 2M Pixel HD Color; 2.1M (GC2145) infrared camera
LED LED Double high power infrared light
Display 5'' HD IPS Screen
Resolution 720*1280
Dimension 154*152*22mm
Exposure compensation Under the strong light, sun light and back light, exposure compensation will be automatically
Communication Support LAN/wifi/u disk connection, support CS desktop version software, real-time data upload, cloud websocket
FRR <0.1%
FAR <0.001%
Power supply DC 12V, 1A~5A
Operating system LINUX 3.10
Language 20 country of languages
Face capacity 5,000
Card capacity 15,000
Finger capacity 10,000
Record Capacity 500,000
Identification stylel Face, Finger,ID Card, PIN or combination, Green Pass QR Code
Access Control Interface output: Lock control , doorbell, U-Disk, Wiegand, relay, alarm output.
Interface input: Exit button, Wiegand, fire linkage. Compatible with all our fingerprint machines
Identification Mode 1:1, 1:N
Face recognition time <0.2S
Intelligent function Live face detection
Detection range 0.5-2.5m
Magnetic door support
Alarm output 1 set
WG 1 set WG In, out
Waterproof rating NIL
Installation Environment Indoor
Desktop Software AAS Version 6.8
Cloud Software www.yunatt.com:82
SDK Free SDK


Face Recognition Temperature Scanner FAQ?
Q1: Are you a manufacturer or a trade company?
Reply : Shenzhen Union Timmy Technology Co., Ltd. is one of the leading manufacturers and exporters. We are enjoying an excellent reputation through 20 years’ production experience of time attendance in China.
Q2: How many days can we get the products if placed purchase order?
Reply : In regularly, 1-3 working days for Sample and ready stock;
15 working days for production order after receiving order deposit.
Q3: Which payment method are acceptable?
Reply: T/T, PayPal, and L/C are available.
Q4: When did your company formed?
Reply : Since year 2000, the founders of Shenzhen Union Timmy Technology Co., Ltd. (Timmy Technology) have been striving for independent research and development of biometric verification algorithms, vertical three roller gates, access control system, one-card management system and the production of biometric verification SDK which was initially widely applied in PC security, time attendance and identity authentication fields.
Q5: Can I get some samples?
Reply: We are honored to offer samples for your evaluation.
Q6: Can we print Logo for OEM?
Reply: Logo printed and client customization are our expertise for ordering at MOQ in 100pcs.
Q7: How does your factory do regarding QC?
Reply: Quality check is our first priority for our customers without any careless.
Furthermore, Timmy Technology has been recognized as a "National High-tech Enterprise" for 3 consecutive years, passed ISO9001 certification, and the products have passed FCC/CE/ROHS certification, etc
Should you have any inquiry, feel free to contact us
